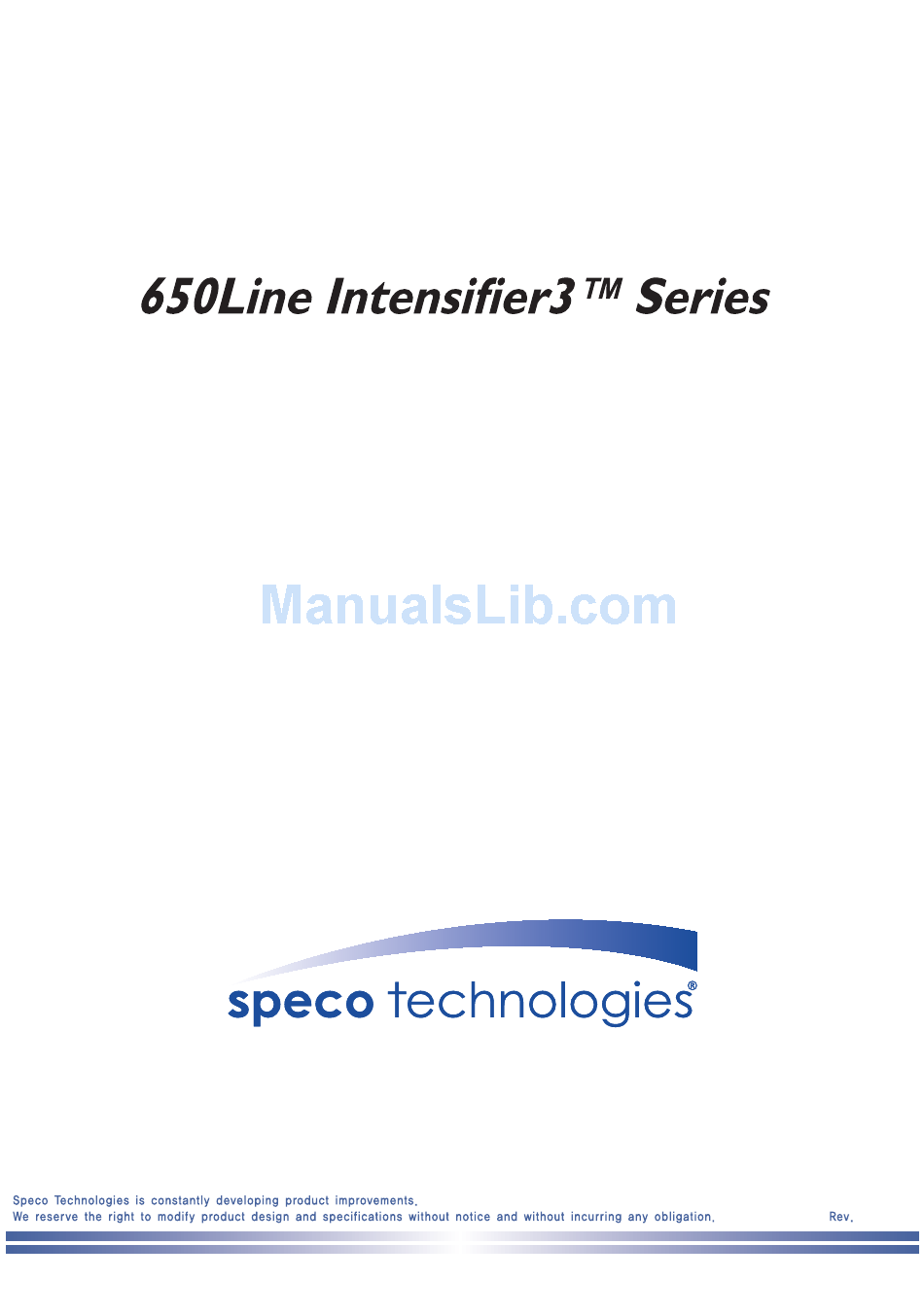

650line intensifier3 series focus free
Hide thumbs Also See for HTD8FFI:

Advertisement

Quick Links

INSTRUCTION
MANUAL
Focus Free
HTD8FFI

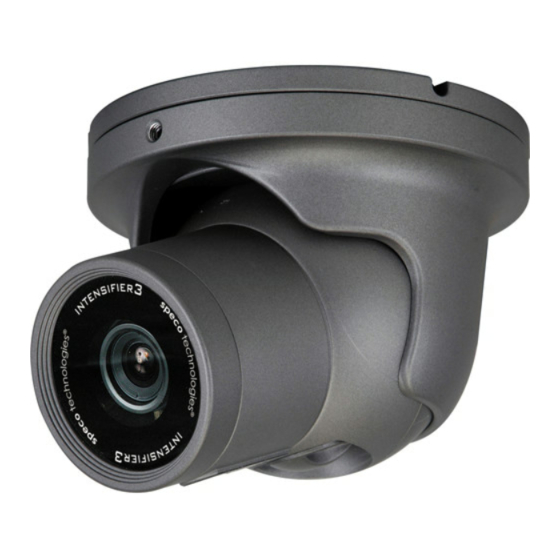

(Weatherproof Color Dome Camera)
HTB11FFI
(Weatherproof Color Bullet Camera)
HT7248FFI
(Weatherproof Color Dome Camera)
6/20/2012

Advertisement

Table of Contents
loading

Summary of Contents for Speco HTD8FFI

  • Page 1 INSTRUCTION MANUAL Focus Free HTD8FFI (Weatherproof Color Dome Camera) HTB11FFI (Weatherproof Color Bullet Camera) HT7248FFI (Weatherproof Color Dome Camera) 6/20/2012...
  • Page 2: Table Of Contents

    Contents ............1 ◑ Precautions ..........2, 3 ◑ Safety Instructions ........4 ◑ Package Contents ........5 ◑ Camera Installation ........6-11 ◑ ..........12-14 ◑ Camera Dimension ........15, 16 ◑ Features ............17, 18 ◑ OSD Menu Details ........19- 30 ◑...
  • Page 3: Connecting The Camera

    Only use the camera under conditions Severe lighting change or flicker can This is one of the most important parts of the where temperatures are between cause the camera to work improperly. camera. Be careful not to leave -10°C and +50°C. Be especially careful to provide fingerprints on the lens cover.
  • Page 4 CAUTION RISK OF ELECTRIC SHOCK CAUTION DO NOT OPEN CAUTION RISK OF ELECTRIC SHOCK CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK DO NOT OPEN DO NOT OPEN DO NOT REMOVE COVER(OR BACK). CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK NO USER-SERVICEABLE PARTS INSIDE.
  • Page 5: Precautions For Use

    Safety Instructions Precautions for use ◑ ◑ There are no user serviceable parts inside ◑ Do not disassemble this camera other than to make initial adjustments ◑ Use a UL approved regulated 24 volt AC or 12 volt DC power supply rical shock ◑...
  • Page 6: Package Contents

    Package Contents Please make sure that the following items are included in the Package: 1) HTD8FFI • 1 Video Test Connector, Power Jack • 2 Wrenches • Set Screw - 3 Tapping Screws 4x25 - 2 Hexagon Socket Screws M6x20 2) HTB11FFI •...
  • Page 8: Camera Installation

    CAMERA INSTALLATION Compatibility 1) HTD8FFI INTWM INTPM JB03TG 2) HTB11FFI CVCJBB INTJBS INTCM...
  • Page 9 CAMERA INSTALLATION Compatibility 3) HT7248FFI INTWM INTPM CVCJBD...
  • Page 10 CAMERA INSTALLATION 1. HTD8FFI DOME BASE TAPPING SCREW 4X25, 3EA DOME ASSEMBLY HEXAGON SOCKET SCREW M6X20, 2EA DOME BODY...
  • Page 11 CAMERA INSTALLATION 2. HTB11FFI CAMERA ASSEMBLY BASE ADAPTOR BRACKET TAPPING SCREW 4X25, 4EA HEXAGON SOCKET SCREW M5X10, 4EA...
  • Page 12 CAMERA INSTALLATION 3. HTB7248FFI PLASTIC ANCHOR 6x30, 3EA VANDAL DOME BASE ASSEMBLY TAPPING SCREW 4X40, 3EA VANDAL DOME BODY ASSEMBLY BODY OUTER COVER...
  • Page 13: Specifications

    Auto / Off (Selectable x2 ~ x512) Motion Detection On / Off (8 Programmable Zones) Privacy Masking On / Off (12 Programmable Zones) SPECO DNR On / Off (Level adjustable) Digital Zoom On / Off (x1 ~ x16) DIS (Digital Image Stabilization)
  • Page 14 Auto / Off (Selectable x2 ~ x512) Motion Detection On / Off (8 Programmable Zones) Privacy Masking On / Off (12 Programmable Zones) SPECO DNR On / Off (Level adjustable) Digital Zoom On / Off (x1 ~ x16) DIS (Digital Image Stabilization)
  • Page 15 Auto / Off (Selectable x2 ~ x512) Motion Detection On / Off (8 Programmable Zones) Privacy Masking On / Off (12 Programmable Zones) SPECO DNR On / Off (Level adjustable) Digital Zoom On / Off (x1 ~ x16) DIS (Digital Image Stabilization)
  • Page 16 CAMERA INSTALLATION 1) HTD8FFI 5.47” dia 2) HTB11FFI 11.02” 3.46” 5.90” 5.03” 10.51”...
  • Page 17 CAMERA INSTALLATION 3) HT7248FFI 5.10” dia 5.10” dia 3.93” dia...
  • Page 18 PRESETS (Outdoor, Indoor, Elevator, Lobby, Hallway & Low Light) Used for a quick and easy setup for the installation environment. Horizontal resolution of 650 TV lines is achieved by using a SONY Super-HAD CCD with 410,000 pixels, and a custom DSP yielding pictures with a high S/N ratio.
  • Page 19 Built in motion detector with adjustable areas of coverage will Send a signal to an external alarm device when motion is detected. It also has the ability to mask up to 8 areas of the picture where Viewing is not desired. Each zone can be independently programmed via the OSD This function removes image jitter that is caused by vibrations in the building and reduces the amount of hard drive space.
  • Page 20: Preset Mode

    Preset Mode ● SPECO TECH 1.PRESET MODE INDOOR 2.MAIN SETUP 3.EXIT RESET 1. Preset : INDOOR / OUTDOOR / LOW LIGHT / HALLWAY / LOBBY / ELEVATOR. - Used for a quick and easy setup for the installation environment. Menu Setup ●...
  • Page 21: Exposure Setting

    MAIN SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 3. THE Lens mode has sub menu items as listed below. - BRIGHTNESS : Adjusts the video brightness. - FOCUS ADJ : To adjust the DC lens focus correctly, you must activate the Focus Settings mode under each lens menu. Activate the Focus Settings mode, adjust the lens focus, and then deactivate the settings mode.
  • Page 22 ☞ NOTE ■ When the SHUTTER is set to MANUAL or A.FLK mode, INTENSIFY will be disabled. ◆ AGC(AUTO GAIN CONTROL) : The higher the gain level, the brighter the screen - but the higher the noise. * OFF : Deactivates the AGC function. * LOW : Allows automatic gain control from 5.3dB to 32dB.
  • Page 23 ※ Select one of the following 5 modes, as appropriate for your purpose. ◆ ATW : Select this when the color temperature is between 1,700˚K and 11,000˚K. ◆ OUTDOOR : Select this when the color temperature is between 1,700˚K and 11,000˚K. (sodium light inclusion) ◆...
  • Page 24: Backlight Setting

    Function Setup switch so that the arrow indicates 'BACKLIGHT'. MAIN SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 4.WDR 5.BACKLIGHT 6.SPECO DNR 7.DAY/NIGHT AUTO 8.SPECIAL 9.RETURN SAVE 2. Select a desired mode using the Function Setup switch. ◆ BLC : Enables a user to directly select a desired area from a picture, and to view the area more clearly.
  • Page 25 SPECO DNR Setting ● This function reduces the background noise in a low luminance environment. 1. When the SETUP menu screen is displayed, select 'SPECO DNR' by using the Function Setup switch so that the arrow indicates 'SPECO DNR'. MAIN SETUP 1.LENS...
  • Page 26 ☞ NOTE ■ You cannot set the SPECO DNR to ‘ON’ or ‘OFF’ when the AGC mode of the EXPOSURE menu is ‘OFF’. ■ When adjusting the noise reduction level in the SPECO DNR mode, remember that the higher the level set, the more the noise level will be reduced, as will the brightness of the image.
  • Page 27 Special Setting ● 1. When the SETUP menu screen is displayed, select 'SPECIAL' by using the Function Setup switch so that the arrow indicates 'SPECIAL'. MAIN SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 4.WDR 5.BACKLIGHT 6.SPECO DNR 7.DAY/NIGHT AUTO 8.SPECIAL 9.RETURN SAVE...
  • Page 28 2. Select a desired mode using the Function Setup switch. SPECIAL 1.IMAGE ADJ 2.MONITOR 3.CAM TITLE 4.SYNC 5.MOTION DET 6.PRIVACY 7.COMM ADJ 8.LANGUAGE ENGLISH 9.RETURN ◆ IMAGE ADJ. : 1) When the SETUP menu screen is displayed, select 'IMAGE ADJ' by using the Function Setup switch so that the arrow indicates 'IMAGE ADJ'.
  • Page 29 ☞ NOTE ■ ■ If you increase the SHARPNESS level too high, the picture may become distorted or noise may appear. ◆ MONI T OR : Pl e ase change the setti n gs val u e of vi d eo appropri a te to your moni t or. 1) LCD : Pl e ase sel e ct thi s menu i t em when usi n g a LCD moni t or.
  • Page 30 - INT : Internal Synchronization Type - L/L : Power Synchronization Type, Line-lock * Press the Function Setup switch. * You can select a desired phase from 0 to 359 when select ' p hase' . ☞ NOTE ■ When using AC power at 60Hz(NTSC), 50Hz(PAL), frequency, you can use the L/L type synchronization.
  • Page 31 1) When the SPECIAL menu screen is displayed, press the Function Setup switch so that the arrow indicates 'PRIVACY'. 2) Set up the mode using the Function Setup switch. - AREA : You can select up to 12 PRIVACY areas. - MODE : Determines whether to use the area selected in the AREA.
  • Page 32: Trouble Shooting

    Trouble Shooting ● PROBLEM POSSIBLE CAUSE ☞Check the power cable, power supply output and video Northing appears on connection between the camera and monitor. the screen. ☞Are the camera lens or the lens glass dirty? Clean the lens / glass with a soft clean cloth. The image on the ☞Adjust the monitor controls, as required.
  • Page 36 200 New Highway Amityville, NY 11701 631-957-8700 1 800 645 5516 www.specotech.com...
