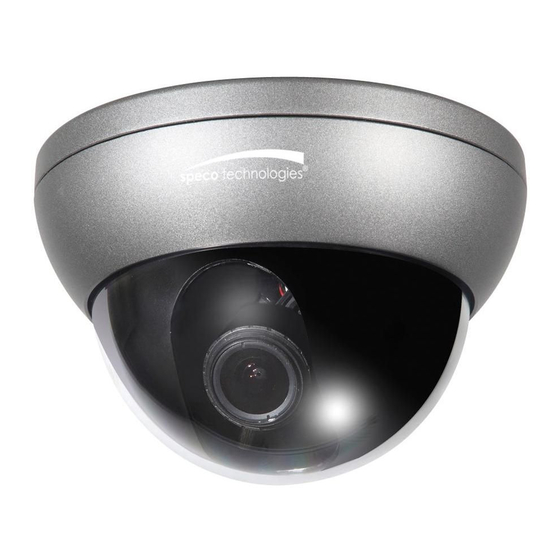

- Page 1 HT7248FFi 540 Line Color Dome Camera Intensifier Series, Focus Free Wall & Ceiling Mountable Please read this manual thoroughly before operation and keep it handy for further reference.
- Page 2 WARNING & CAUTION CAUTION The lighting flash with an arrowhead symbol, within an equilateral triangle is Intended to alert the user to the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to The exclamation point within an equilateral triangle is intended to alert the user to the...
-
Page 3: Table Of Contents
Contents Package Contents Precautions Camera Installation Features OSD Setting Troubleshooting Specification Dimensions Warranty 9~10 11~16 17~18... -
Page 4: Package Contents
PACKAGE CONTENTS • Please make sure that the following items are included in the package: 1 HT7248FFi Camera 2 Mounting Screws 1 Chameleon Dome Cover 1 Video Test Cable Please leave this manual with the end-user for future reference. -
Page 5: Precautions
PRECAUTIONS • THIS DOME CAMERA SHOULD BE ONLY INSTALLED BY QUALIFIED PERSONNEL • TO PREVENT A FIRE OR ELECTRICAL HAZARD PLEASE USE PROPER POWER CABLE. THE DOME COVER SHOULD BE TREATED WITH CARE • DO NOT CELAN THE COVER WITH AN ABRAISIVE CLEANING MATERIAL - PLEASE USE A SOFT CLOTH OR TISSUE TO CLEAN THE DOME COVER •... -
Page 6: Camera Installation
CAMERA INSTALLATION 1. CONNECT POWER CABLE 1) WHEN USING 12 VOLTS DC (constant voltage 600 mA) -CONNECT ACCESSORY CABLE TO THE CABLE LEAD OF THE CAMERA AND CONNECT 12V DC POWER SUPPLY. POWER INPUT:RED CONNECT CENTER:(+) 2) WHEN USING 24 VOLTS AC (40 Volt Amps) CAMERA RED(+) BLACK:(-) - Page 7 CAMERA INSTALLATION 2. CHAMELEON COVER INSTALLATION 1) If you wish to change the color of the HT-7248FFi, place the Chameleon Dome over the camera Place the Chameleon Dome over the HT-7248FFi and push until it snaps into position. ● Notes : Optional painting before installation...
-
Page 8: Control Board
CAMERA INSTALLATION 3. CONTROL BOARD 1) Video Test Terminal For second video output 2) OSD (On Screen Display) Joy stick Press the Joy stick for one second until the OSD menu tree appears on the screen. Move the Joy Stick up, down, left & right to control the OSD functions. -
Page 9: Camera Installation
CAMERA INSTALLATION 4. DIP Switch Setting for RS-485 (Pelco-D) 1) Address Setting to set Camera Address, place switches based on below chart. 2) Baud rate Setting to set Baud rate, please refer the chart below. -
Page 10: Features
Features When the image is in front of strong background lighting, your camera allows you to get a clear image. INTENSIFIER 1/3 inch density CCD and digital processor permit high quality pictures to be captured in very low light condition. High Resolution Horizontal resolution of 540 TV lines is achieved by using a SONY Double Speed CCD with 410,000 pixels, yielding pictures... - Page 11 All camera functions are menu driven for easy use. Dynamic Noise Reduction The Intensifier camera has a DSP chip that can remove image noise efficiently showing clean images in low light conditions. ELECTRONIC DAY/NIGHT The Intensifier camera can show color pictures in all lighting conditions, or you can have it automatically switch to a B/W picture in low light conditions MANUAL / AUTO IRIS LENS...
-
Page 12: Osd Setting 11~16
Operating your camera OSD Function SETUP MENU LENS TYPE ● DC IRIS SHUTTER TYFE ● ELC ● FIXED ● MANUAL WHITE BALANCE ● ATE ● AWC ● MANUAL ● HIGH ● MIDDLE ● LOW ● OFF AUTO GAIN ● HIGH ●... - Page 13 SETUP Menu Functions 1. LENS (DC) – Lens is static with DC auto iris lens only 2. SHUTTER (Option : OFF / FLK / MANUAL/ ESC) Flickerless mode (FLK) reduces on-screen flickering. Electronic Shutter Control (ESC) adjusts brightness level on screen. Manual mode allows you to adjust the shutter speed from 1/60~1/120,000 of a second (NTSC).
- Page 14 5. Auto Gain ( Low / Middle / High) Increase the GAIN level to brighten the picture. (noise / distortion may develop) 6. REDUCE NOISE (Low / Middle / High) Reduces noise/distortion on the screen, Increasing the REDUCE NOISE level reduces noise but may introduce video Artifacts, it is deactivated if AGC is turned off.
- Page 15 NEXT PAGE Menu Functions 1. CAMERA ID UP, DOWN, LEFT, RIGHT menu control = Select a character, then press (SETUP)MENU to accept it. The character is saved and the title cursor at the bottom of the screen moves to the next position. ←...
- Page 16 3. SYNC (INT / Line Lock) INT : When line lock is not required. It synchronize the vertical interval sync pulse of your camera with other equipment to reduce the effect of picture roll on the monitor. L/L : Adjust the vertical phase (VPH) from 000 ~ 359 Line Lock is only available with 24VAC power.
- Page 17 5. PRIVACY Allows you to mask certain areas of the screen from observation AREA SEL = Select a motion detection grid (top left, top right, bottom left, bottom right) to modify. AREA STATE = Activate or deactivate the selected grid. TOP/DOWN/ = Press LEFT or RIGHT menu control left or LEFT/RIGHT right to alter the dimensions of the selected...
-
Page 18: Troubleshooting
Troubleshooting If you have trouble operating your camera, refer to the following Problem Nothing appears on the screen. The image on the screen is dim. The image on the screen is dark. The camera is not working properly, and the surface of the camera is not. - Page 19 Problem The color of the ● Check that you have properly set the picture is not matched. The image on the ● Is the camera facing to direct sunlight or screen flickers. fluorescent L/L mode isn’t able ● Have you connected your camera to DC power to be selected.
-
Page 20: Specification
SPECIFICATIONS ITEM Power Source Power Consumption Image Sensor Total Pixels Effective Pixels LENS TYPE Maximum Aperture Ratio Scanning System Synchronization Video Output Resolution Gain Control Electric Shutter Speed INTENSIFIER WHITE BALANCE Min. Illumination S/N ( Y signal) Reduction Noise Motion Detection On Screen Display ( O.S.D ) PRIVACY Function Operational Temperature... -
Page 21: Dimensions
DIMENSIONS * SIDE VIEW * TOP VIEW... -
Page 22: Warranty
WARRANTY... - Page 23 MEMO...
- Page 24 200 New Highway Amityville, NY 11701 631-957-8700 www.specotech.com VER. 080901 This manual is based on the date as shown in the right and specifications are subject to Change without notice for quality improvement.
