Speco HTSD37X Instruction Manual

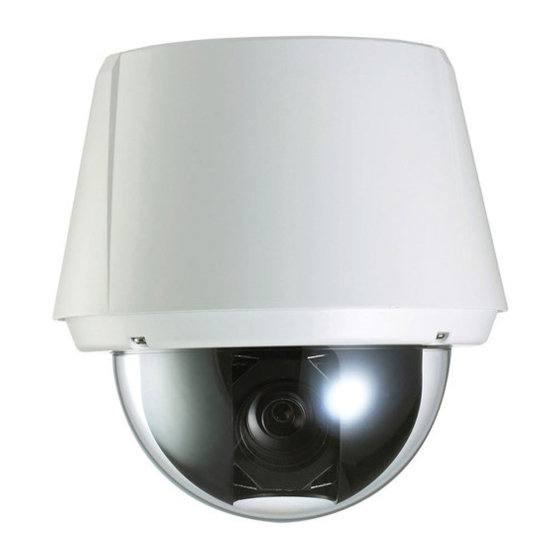

37x optical indoor / outdoor speed dome cameras
Hide thumbs Also See for HTSD37X:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
HTSD37X
37X Optical Indoor / Outdoor Speed Dome Cameras
Please read this manual thoroughly before operation and keep it handy for further reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTSD37X and is the answer not in the manual?

Questions and answers

Related Manuals for Speco HTSD37X

Summary of Contents for Speco HTSD37X

  • Page 1 HTSD37X 37X Optical Indoor / Outdoor Speed Dome Cameras Please read this manual thoroughly before operation and keep it handy for further reference...
  • Page 2 This Device compiles with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interface, and (2) This device must accept any interference received, including interference that may cause undesired operations. HTSD37X 2/56...
  • Page 3  Use only replacement parts specified by the manufacturer. 5. Power source This product should be operated only from the type of the power source indicated on the marking label. HTSD37X 3/56...
  • Page 4  Avoid installing in humid or dusty places.  Avoid installing in places where radiation is present.  Avoid installing in places where there are strong magnetic fields and electric signals.  Avoid installing in places where the product would be subject to strong vibrations. HTSD37X 4/56...

  • Page 5: Table Of Contents

    OSD Display ④ OSD Menu Quick Programming Guide Main Menu Display Setup Privacy Zone Mask Setup Clock Setup Camera Setup Motion Setup Preset Setup Swing Setup Pattern Setup Group Setup Schedule Setup Password Setup System Initialize ⑤ Specifications Dimension HTSD37X 5/56...

  • Page 6: Features

     RTC(Real Time Clock) Function  Date and Time can be configured for Schedule Function  With Backup Battery Function, Date and Time configuration should be kept up for a while, even though power is off HTSD37X 6/56...
  • Page 7 OSD menu and OSD menu can be protected.  The information such as Camera ID, Pan/Tilt Angle, Time/Date, Direction, Alarm Input and Preset is displayed on screen.  Multi-Language OSD menu is supported. HTSD37X 7/56...
  • Page 8  The fans and heaters are built-in in the camera for cold and hot temperature environment. Also idealistic mechanical design protects the camera from water and dust. (IP67 when installed properly with wall mount bracket only)  It is easy to install and repair the camera. HTSD37X 8/56...

  • Page 9: Package Components

     Brackets (Wall Mount Bracket is included but Ceiling Mount Bracket is optional)  Wall Mount Bracket included in the package  Ceiling Mount Bracket (CLGMT37X) is optional [Screws : , Hex Lag [Screws : , Anchor Bolt TORX Machine M4L18 TORX Machine M4L18 #1450] 3/8"70] HTSD37X 9/56...

  • Page 10: Main Part Description

     Mounting Screw Hole Used to assemble the main body with a bracket with screws.  Main Connector Used for the power wire, the video cable and the RS-485 communication cable connection.  Sensor I/O Port Used for the sensor in/out connection. HTSD37X 10/56...

  • Page 11: Dip Switch Setup

    The last camera means the camera farthest in cable length from the controller.  Note that the total length of the communication cable between a controller and the camera(s) on the same communication line must be less than 1.2Km. HTSD37X 11/56...
  • Page 12  Adjust the DIP switch after turning off the camera. If you changed the camera protocol by changing the DIP S/W, the change will be effective after you reboot the camera.  The factory default protocol is “Pelco-D, 2400 bps”. HTSD37X 12/56...
  • Page 13 ‘ON’ state. The last camera means the camera farthest in cable length from the controller. Do not turn on the terminal resistor of all the cameras on the same communication cable. HTSD37X 13/56...

  • Page 14: Installation With Ceiling Mount Bracket

    If you use the old ceiling mount bracket, please use the new mounting adaptor from the HTSD37X (ver. 2.0) package. ③ Line up the mold lines and assemble ④ Screw the dome cover to the main body main body to mount adaptor and turn it.

  • Page 15: Installation With Wall Mount Bracket

    If you use the old wall mount bracket, please use the new mounting adaptor from the HTSD37X (ver. 2.0) package. ③ Line up the mold lines and assemble ④ Screw the dome cover to the main body main body to mount adaptor and turn it.

  • Page 16: Wiring And Cabling

    Yellow Orange Power + Power  White  I/O Cable Port Pin Number (RJ25) Wire Color Signal Blue IN COM + IN 1  Yellow IN 2  Green IN 3  Black OUT A White OUT B HTSD37X 16/56...
  • Page 17 The last camera means the camera farthest in cable length from the controller. Note that the total length of the communication cable between a controller and the camera(s) on the same communication line must be less than 1.2Km. HTSD37X 17/56...
  • Page 18  Normal Close Output Voltage is high state when sensor is not activated  Relay Output The maximum loads are as follows. Power Type DC Power AC Power Maximum Load MAX. DC 24V, 1A MAX. AC 125V, 0.5A HTSD37X 18/56...

  • Page 19: Check Point Before Operation

    Input [Pattern Number] and keep pressing [Pattern] button for more than 2 seconds.  If your controller or DVR has no pattern button or function, use the Hot Keys with preset numbers. For more information, refer to “Reserved Presets (Hot Keys)” in this manual. HTSD37X 19/56...

  • Page 20: Osd Menu

    : Setting OSD Display Mode to OFF (Except Privacy Mask) Go Preset [192] : Setting OSD Display Mode to ON (Except Privacy Mask) Go Preset [193] : Setting all Privacy Mask Display to OFF Go Preset [194] : Setting all Privacy Mask Display to ON HTSD37X 20/56...

  • Page 21: Preset

    Method 1) <Run Pattern> [Swing NO. + 10] ex) Run Swing 3 : <Run Pattern> [13] Method 2) <Go Preset> [Swing NO. + 140] ex) Run Swing 3 : <Go Preset> [143]  Deleting Swings To delete Swings, enter into OSD menu. HTSD37X 21/56...

  • Page 22: Pattern

    Note) When the system memorizes Patterns, the commands are stored in the momories, not the positions of Pan/Tilt/Zoom. Hence there might be small differences between the original path and the revived path by path type of Patterns. Note that it is not a problem in position precision. HTSD37X 22/56...

  • Page 23: Group

    “Wait Time” means how long a camera should wait for from the previous-last (most recent) command before running the pre-defined action. It can be set to 1 second ~ 3 hours. HTSD37X 23/56...
  • Page 24 It should shorten time to get focuses. The focus mode automatically changes to Auto Focus mode when jog operation starts. HTSD37X 24/56...

  • Page 25: Osd Display

    If an Input point is OFF state, '-' will be displayed. Example) The point 2 & 3 of inputs are ON and Output is ON, OSD will show as below. I:-23 O:1 HTSD37X 25/56...

  • Page 26: ④ Osd Menu

    Configures current time and how to display in OSD EXIT Configures various functions  Dome Camera camera. Setup  Password Setup Configures a Password for OSD  System Initialize Initializes all system configurations and data factory default parameters. HTSD37X 26/56...

  • Page 27: Display Setup

    If an Input point is OFF state, '-' will be displayed. Example) The point 2 & 3 of inputs are ON and Output is ON. I:-23 O:1  Language [ENG/POL/FRN/ITL] Selects a language for OSD menu. HTSD37X 27/56...

  • Page 28: Privacy Zone Mask Setup

    “UNDEFINED” will displayed under the Mask number.  Display [ON/OFF] Sets if the mask of the selected mask number shows or not on the screen.  Clear Mask [CANCEL/OK] Deletes the mask data of the selected mask number. HTSD37X 28/56...
  • Page 29 Adjusts the mask size. Use the joystick or the arrow buttons EDIT MASK 1 of your controller to adjust mask size. ------------------------   (Left/Right) Adjusts the mask width.   (Up/Down) Adjusts the mask height. :ADJUST MASK WIDTH] :ADJUST MASK HEIGHT] [NEAR:SAVE /FAR:CANCEL] HTSD37X 29/56...

  • Page 30: Clock Setup

    01/JAN/2013 TUE [ON/OFF]  Display Time 00:01:02 [hh:mm:ss] Configures whether Time will be displayed in OSD or not BACK [CANCEL/OK]  Set Clock EXIT Configures current date (DD/MM/YYYY) and time (hh:mm:ss). should automatically changed according to Date change HTSD37X 30/56...

  • Page 31: Camera Setup

    Sets System Image Flip Function to ON/OFF. When this function is set to ON, flipped images always come out. When the camera is installed as Desktop type, set to ON to get proper images.  Sharpness [0-32] Sets image sharpness enhance pictures. HTSD37X 31/56...
  • Page 32 In Manual mode, Red and Blue level can be set up manually.  Red Adjust [0-255] Adjusts the picture output in the red range. BACK EXIT  Blue Adjust [0-255] Adjusts the picture output in the blue range. HTSD37X 32/56...
  • Page 33 Shutter Speed is fixed. Auto iris is the lens function that automatically opens closes the iris in response to changing light conditions. If Iris is set to Manual, Iris is fixed and Iris has lower priority in adjusting AE, in comparison with others. HTSD37X 33/56...
  • Page 34  SENS-UP [AUTO(2~512)/OFF] Sets SENS-UP. This setting activates Slow Shutter function when luminance of image (signal) is too dark. It is possible to set up the maximum number of frames piled up one on another by Slow Shutter function. HTSD37X 34/56...
  • Page 35 For example, when there is a car coming to a camera at night, this function blocks car headlights to recognize its number plate.  Color [0~15] Assigns colors of masks to block light BACK EXIT sources HTSD37X 35/56...

  • Page 36: Motion Setup

    As soon as camera stops at preset end point, camera starts displaying live images which it gets at the end preset point. This feature also reduces bandwidth when working with digital systems or digital network systems. This function availability should be different by models. HTSD37X 36/56...
  • Page 37 If Park Action is set to “HOME”, the camera moves to the home position which is memorized when the system boots. If Park Action is set to “PREV. ACTION”, the camera runs the previous action which it ran most recently. HTSD37X 37/56...
  • Page 38  Post Action [HOME/PRESET/PATTERN/SWING/GROUP /PREV ACTION] Selects the action that a camera will run after the time period in“HOLD TIME” passes. If Post Action is set to “PREV. ACTION”, the camera runs the previous action which it ran most recently. HTSD37X 38/56...

  • Page 39: Preset Setup

    During jog operation, Global WB/AE value should be applied. All Local WB/AE values do not change although Global WB/AE value changes. The Local mode has the prior to the Global mode. HTSD37X 39/56...
  • Page 40 (" "). ② If you complete the Label editing, move the cursor to "OK" and press the NEAR key to save the completed label. To abort the current change, move the cursor to "Cancel" and press the NEAR key. HTSD37X 40/56...

  • Page 41: Swing Setup

    Defines Swing speed between the 2 Preset positions from 1/sec to 180/sec  Clear Swing [CANCEL/OK] Deletes the data of the selected Swing.  Run Swing Runs Swing for the test purposes to check if it works properly. HTSD37X 41/56...

  • Page 42: Pattern Setup

    ③ To save the data and exit, press NEAR key. To cancel [NEAR:SAVE /FAR:DELETE] saving the data and delete the data, press FAR key. 0/0/x1/N HTSD37X 42/56...

  • Page 43: Group Setup

    Action. Press Near key EDIT GROUP 1 ------------------------ to edit. NO ACTION ### DWELL OPT ------------------------ 1 NONE 2 NONE 3 NONE 4 NONE 5 NONE ------------------------ SAVE [NEAR:EDIT ACT] CANCEL [FAR :EDIT END] HTSD37X 43/56...
  • Page 44 Up/Down to select an Action number and repeat Step ② ~ ------------------------ Step ④ to keep editing the selected Group. NO ACTION ### DWELL OPT ------------------------ 1 PRESET 1 00:03 360 2 NONE 3 NONE 4 NONE 5 NONE ------------------------ SAVE [NEAR:EDIT ACT] CANCEL [FAR :EDIT END] HTSD37X 44/56...
  • Page 45 EDIT GROUP 1 cursor will move to “SAVE”. Press Near key to save the ------------------------ data. NO ACTION ### DWELL OPT ------------------------ 1 PRESET 1 00:03 360 2 NONE 3 NONE 4 NONE 5 NONE ------------------------ SAVE CANCEL HTSD37X 45/56...

  • Page 46: Schedule Setup

    CYCLE is set in HOUR, a camera starts running at 00:15:00 and keeps repetitively running 01:15:00 02:15:00 03:15:00……..  Time Configures a Date(DD/MM/YYYY) and a Time(hh:mm:ss) Schedule Function. A day should be automatically changed according to Date change. HTSD37X 46/56...

  • Page 47: Password Setup

    [Caution] It is mandatorily recommended that a user must take a memo for a password before a user applies a password to a system. When a Password is forgotten, a unit can not be unlocked and the unit is supposed to be shipped back to the manufacturer. HTSD37X 47/56...
  • Page 48 (" "). ② If you complete the Password editing, move the cursor to "OK" and press the NEAR key to save. To abort the current change, move the cursor to "Cancel" and press the NEAR key. HTSD37X 48/56...

  • Page 49: System Initialize

    North Direction Pan 0 Park Action Privacy Zone Undefined Alarm Action Display Date  User-Defined Data Display Time Preset 1~255 Undefined Swing 1~10 Undefined Pattern 1~8 Undefined Group 1~8 Undefined Schedule 1~8 Not Used Password OFF / Blank HTSD37X 49/56...
  • Page 50 OSD MENU  Camera Parameters Focus Mode SemiAuto Day&Night AUTO Digital Zoom Brightness Image Flip Iris AUTO Sharpness 12 or 16 Shutter Stabilization MIDDLE White Balance AUTO SSNR MIDDLE Backlight SENS-UP AUTO (x2) HTSD37X 50/56...

  • Page 51: ⑤ Specifications

    Low / Middle / High / Manual / Off White Balance Auto / Manual(Red, Blue Gain Adjustable. 1700K~11000K) WDR / BLC / HLC / Off Flickerless Selectable SSNR Low / Middle / High / Off Privacy Zone 8 Masks, Spherical Coordinate Stabilization ON / OFF HTSD37X 51/56...
  • Page 52 Alarm Outputs 1 Output, Relay Output, MAX. Load DC24V 1A / AC125V 0.5A Always ON Heater Operation Start from Internal Temperature 10C Operation Temperature -30C ~ 50C Rated Power DC 12V / 1.8A or AC 24V / 1.8A HTSD37X 52/56...
  • Page 53 150mm /  5.9” Dome Size 200407.8 mm Dimension 300309.1 mm Weight Approx 3.6 Kg Approx 3.4 Kg [Note] 1) Specification and features are subject to change without prior notice. 2) Check the voltage and current capacity of rated power carefully. HTSD37X 53/56...

  • Page 54: Dimension

    SPECIFICATIONS Dimension  Main Body  Ceiling Mount Type (Optional) 56.4 56.4 1.5" NPT 158.2  Wall Mount Type (Included) 118.6 4- 8 [Unit : mm] HTSD37X 54/56...
  • Page 55 HTSD37X 55/56...
  • Page 56 Speco Technologies is constantly developing product improvements. We reserve the right to modify product design and specifications without notice and without incurring any obligation. (Rev. 28092012) HTSD37X 56/56...
