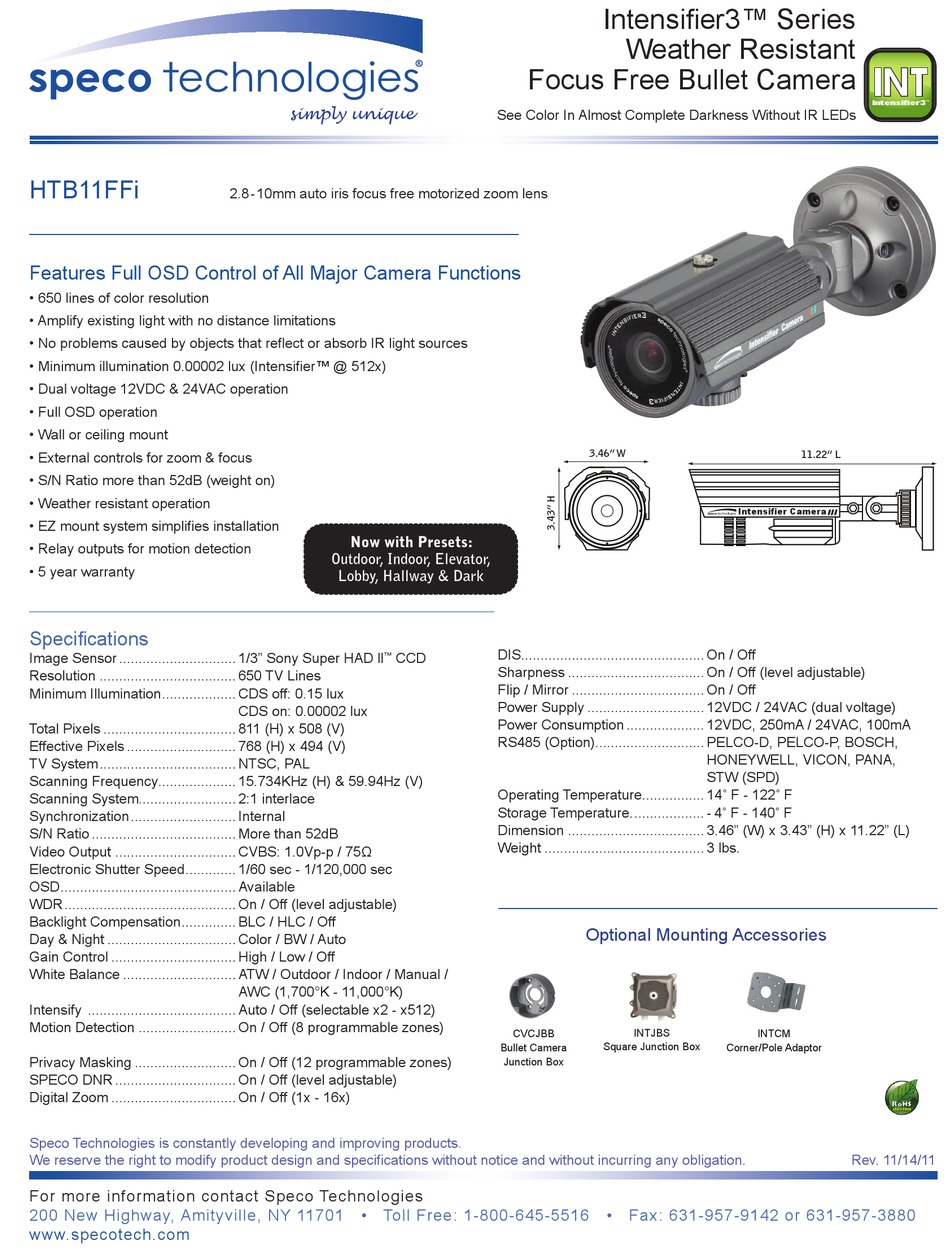

Speco HT-B11FFI Specification Sheet

HTB11FFi
Features Full OSD Control of All Major Camera Functions
• 650 lines of color resolution
• Amplify existing light with no distance limitations
• No problems caused by objects that reflect or absorb IR light sources
• Minimum illumination 0.00002 lux (Intensifier™ @ 512x)
• Dual voltage 12VDC & 24VAC operation
• Full OSD operation
• Wall or ceiling mount
• External controls for zoom & focus
• S/N Ratio more than 52dB (weight on)
• Weather resistant operation
• EZ mount system simplifies installation
• Relay outputs for motion detection
• 5 year warranty

Specifications

Image Sensor .............................. 1/3" Sony Super HAD ll
Resolution ................................... 650 TV Lines
Minimum Illumination ................... CDS off: 0.15 lux
Total Pixels .................................. 811 (H) x 508 (V)
Effective Pixels ............................ 768 (H) x 494 (V)
TV System ................................... NTSC, PAL
Scanning Frequency.................... 15.734KHz (H) & 59.94Hz (V)
Scanning System......................... 2:1 interlace
Synchronization ........................... Internal
S/N Ratio ..................................... More than 52dB
Video Output ............................... CVBS: 1.0Vp-p / 75Ω
Electronic Shutter Speed ............. 1/60 sec - 1/120,000 sec
OSD ............................................. Available
WDR ............................................ On / Off (level adjustable)
Backlight Compensation .............. BLC / HLC / Off
Day & Night ................................. Color / BW / Auto
Gain Control ................................ High / Low / Off
White Balance ............................. ATW / Outdoor / Indoor / Manual /
Intensify ...................................... Auto / Off (selectable x2 - x512)
Motion Detection ......................... On / Off (8 programmable zones)
Privacy Masking .......................... On / Off (12 programmable zones)
SPECO DNR ............................... On / Off (level adjustable)
Digital Zoom ................................ On / Off (1x - 16x)
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
For more information contact Speco Technologies
200 New Highway, Amityville, NY 11701
www.specotech.com
simply unique
2.8 - 10mm auto iris focus free motorized zoom lens
Now with Presets:
Outdoor, Indoor, Elevator,
Lobby, Hallway & Dark
CCD
™
CDS on: 0.00002 lux
AWC (1,700°K - 11,000°K)
• Toll Free: 1-800-645-5516
Intensifier3™ Series
Weather Resistant
Focus Free Bullet Camera
See Color In Almost Complete Darkness Without IR LEDs
3.46" W
DIS............................................... On / Off
Sharpness ................................... On / Off (level adjustable)
Flip / Mirror .................................. On / Off
Power Supply .............................. 12VDC / 24VAC (dual voltage)
Power Consumption .................... 12VDC, 250mA / 24VAC, 100mA
RS485 (Option)............................ PELCO-D, PELCO-P, BOSCH,
Operating Temperature ................ 14˚ F - 122˚ F
Storage Temperature. .................. - 4˚ F - 140˚ F
Dimension ................................... 3.46" (W) x 3.43" (H) x 11.22" (L)
Weight ......................................... 3 lbs.
Optional Mounting Accessories
INTJBS
CVCJBB
Square Junction Box
Bullet Camera
Junction Box
• Fax: 631-957-9142 or 631-957-3880
INT
Intensifier3
11.22" L
Intensifier Camera
HONEYWELL, VICON, PANA,
STW (SPD)
INTCM
Corner/Pole Adaptor
Rev. 11/14/11
™
