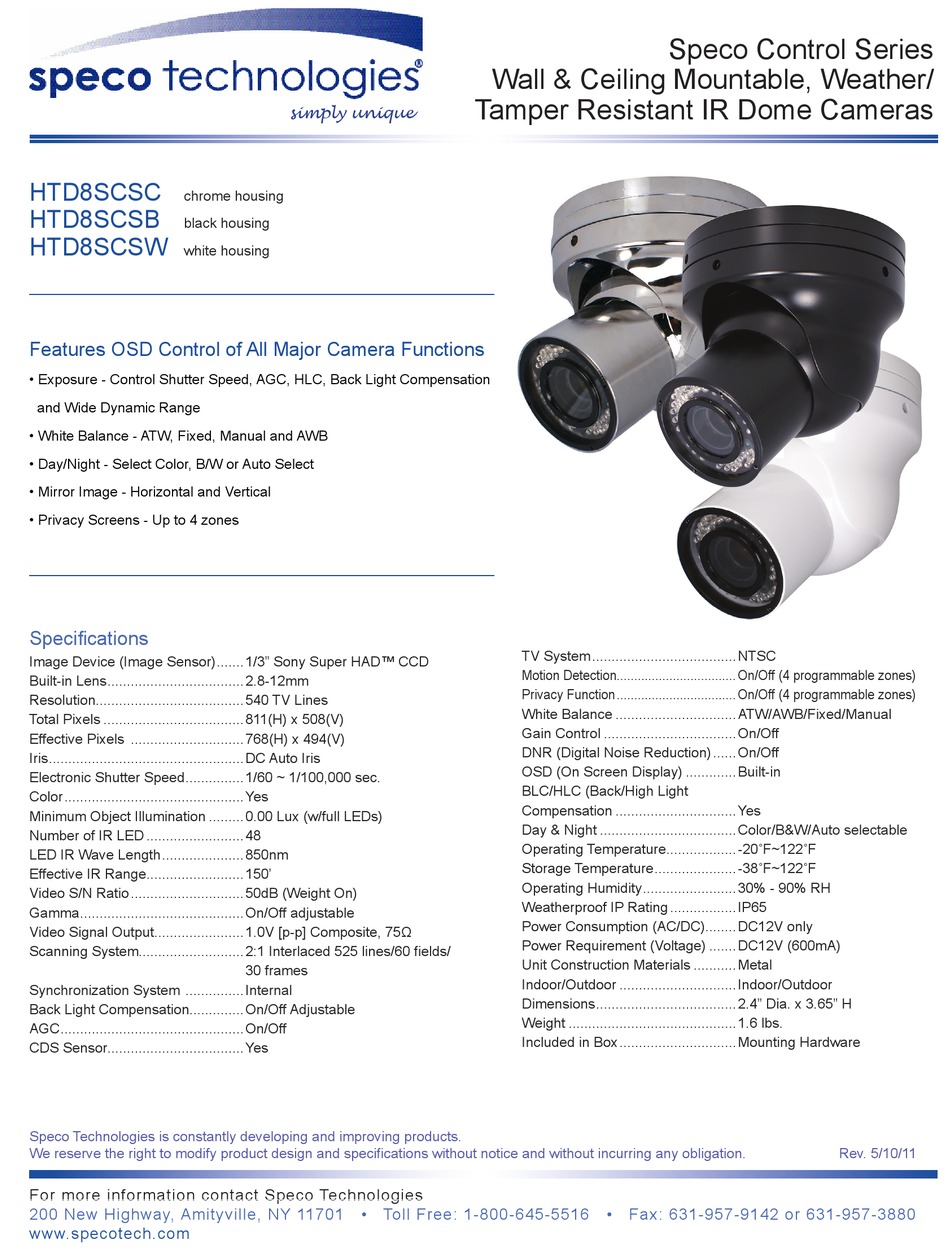

Speco HTD8SCSB Specification Sheet

Control series wall & ceiling mountable, weather/tamper resistant ir dome cameras

Advertisement

Quick Links

HTD8SCSC
chrome housing
HTD8SCSB
black housing
HTD8SCSW
white housing
Features OSD Control of All Major Camera Functions
• Exposure - Control Shutter Speed, AGC, HLC, Back Light Compensation
and Wide Dynamic Range
• White Balance - ATW, Fixed, Manual and AWB
• Day/Night - Select Color, B/W or Auto Select
• Mirror Image - Horizontal and Vertical
• Privacy Screens - Up to 4 zones

Specifications

Image Device (Image Sensor) .......1/3" Sony Super HAD™ CCD
Built-in Lens ...................................2.8-12mm
Resolution......................................540 TV Lines
Total Pixels ....................................811(H) x 508(V)
Effective Pixels .............................768(H) x 494(V)
Iris ..................................................DC Auto Iris
Electronic Shutter Speed ...............1/60 ~ 1/100,000 sec.
Color ..............................................Yes
Minimum Object Illumination .........0.00 Lux (w/full LEDs)
Number of IR LED .........................48
LED IR Wave Length .....................850nm
Effective IR Range .........................150'
Video S/N Ratio .............................50dB (Weight On)
Gamma ..........................................On/Off adjustable
Video Signal Output .......................1.0V [p-p] Composite, 75Ω
Scanning System...........................2:1 Interlaced 525 lines/60 fields/
Synchronization System ...............Internal
Back Light Compensation..............On/Off Adjustable
AGC ...............................................On/Off
CDS Sensor...................................Yes
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
For more information contact Speco Technologies
200 New Highway, Amityville, NY 11701
www.specotech.com
simply unique
30 frames
Toll Free: 1-800-645-5516
Wall & Ceiling Mountable, Weather/
Tamper Resistant IR Dome Cameras
TV System .....................................NTSC
Motion Detection.................................. On/Off (4 programmable zones)
Privacy Function .................................. On/Off (4 programmable zones)
White Balance ...............................ATW/AWB/Fixed/Manual
Gain Control ..................................On/Off
DNR (Digital Noise Reduction) ......On/Off
OSD (On Screen Display) .............Built-in
BLC/HLC (Back/High Light
Compensation ...............................Yes
Day & Night ...................................Color/B&W/Auto selectable
Operating Temperature ..................-20˚F~122˚F
Storage Temperature .....................-38˚F~122˚F
Operating Humidity ........................30% - 90% RH
Weatherproof IP Rating .................IP65
Power Consumption (AC/DC)........DC12V only
Power Requirement (Voltage) .......DC12V (600mA)
Unit Construction Materials ...........Metal
Indoor/Outdoor ..............................Indoor/Outdoor
Dimensions ....................................2.4" Dia. x 3.65" H
Weight ...........................................1.6 lbs.
Included in Box ..............................Mounting Hardware
Fax: 631-957-9142 or 631-957-3880
Speco Control Series
Rev. 5/10/11
