PLEASE READ AND SAVE THESE INSTRUCTIONS

NewAir AC‐14000E, AC‐14000H
Portable Air Conditioner
Owner's Manual

Advertisement

loading

  Summary of Contents for NewAir AC-14000E

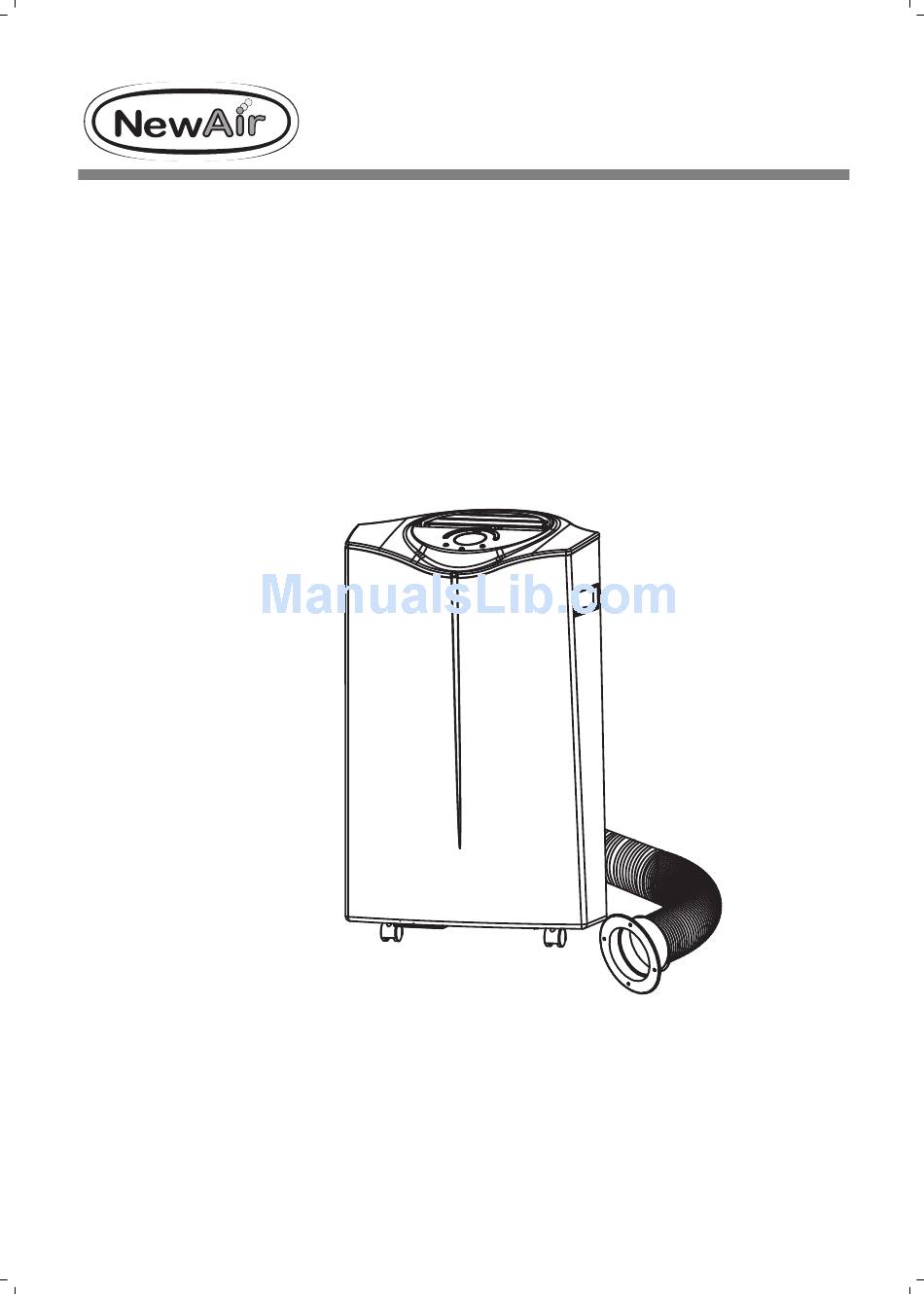

  • Page 1 K0080-1-2 PLEASE READ AND SAVE THESE INSTRUCTIONS    NewAir AC‐14000E, AC‐14000H   Portable Air Conditioner  Owner’s Manual ...
  • Page 2: Before Use

    K0080-1-2 BEFORE USE GENERAL SAFETY INSTRUCTIONS: • ALWAYS OPERATE THE UNIT IN AN UPRIGHT POSITION AND PLACE IT ON A FLAT, LEVEL SURFACE AT LEAST 14” (36 CM) FROM ANY OBJECTS OR COMBUSTIBLE SURFACES (FIG 1 & • DO NOT PLACE OBJECTS ON THE UNIT, AND DO NOT COVER OR OBSTRUCT THE INLET OR OUTLET FIG.
  • Page 3: Parts List

    K0080-1-2 PARTS LIST Front: Back: Control panel Air filters Louvers Air inlets Carrying handle Exhaust air outlet Casters Cord wrap Rubber plug / drainage hole Accessories: 10. Hose adapter (goes over the exhaust hose and into the back of the unit) 11.
  • Page 4: Installation Instructions

    K0080-1-2 INSTALLATION INSTRUCTIONS Installing the Exhaust Hose and Window Kit: The unit is a portable air conditioner that may be moved from room to room. Hot air must be exhausted out of the room for the appliance to work. This can be done with the included window kit or by cutting a hole into a wall.
  • Page 5 K0080-1-2 Positioning the Exhaust Hose: • Slide the hose adaptor over the opening on the back of the unit. • Then insert one end of the FIG.8 exhaust hose into the adapter. • Avoid kinks and bends in the exhaust hose. This can cause moist air to accumulate, resulting in overheating and...
  • Page 6 K0080-1-2 Installing the Activated Carbon Filters: Remove the filter frames from the unit (left and right sides). Separate the filters from the filter frames. Remove the activated carbon filters from their plastic bags. Attach the activated carbon filters onto the filter frames. Re-fix the filters to the filter frames (make sure the active carbon filters will be hold...
  • Page 7: Operating Instructions

    K0080-1-2 OPERATING INSTRUCTIONS Control Panel: FIG.13 1. ON/OFF (power) button 12. Remote control receiver 2. Full water tank indicator 13. Timer display 3. Fan mode indicator 14. Temperature increase button 4. Mode selection button 15. Timer button 5. Heater indicator (AC-14000H only) 16.
  • Page 8 K0080-1-2 Turning the Unit On and Off Press the ON/OFF button. The unit will automatically begin operating. If the ambient temperature is higher than 74 F, the unit will work in cooling mode. If the temperature is at or below 74 F, the unit will work in ventilation (fan) mode.
  • Page 9 K0080-1-2 Sleep Mode: When in cooling mode, press the SLEEP button. The set temperature will increase 2 on the first hour, another 2 F on the second hour, and then maintain that temperature. When in heating mode, press the SLEEP button. The set temperature will decrease 2 F on the 1st hour, another 2 F on the second hour, and then maintain that temperature.
  • Page 10 K0080-1-2 Ionizer: Press IONIZIER button to activate the ionizer function. This will remove harmful particles from the air. Error Messages: If there is an error with the air conditioner, the LCD screen will display “E1” or “E2.” If either of these error messages appears, please contact the manufacturer or a service center. All of the above functions can be controlled with the included remote.
  • Page 11: Draining The Unit

    K0080-1-2 DRAINING THE UNIT During the cooling process, some water will be extracted from the air and stored within the unit’s water reservoir. If the water reservoir is full, both the compressor and motor will stop and the unit will beep (press any button to stop the beeping sound).
  • Page 12 K0080-1-2 For Continuous Drainage: • Remove the drain knob and rubber plug from the drain hole and retain it for future use. • Connect the included drain tube to the drain hole. • Connect the other end of the tube to a drain (see Fig.
  • Page 13 K0080-1-2 For Heating Mode (AC-14000E Only): While using the heating function, please note the following: 1. In order to properly exhaust cool air, make sure the exhaust hose and window kit are properly installed (refer to page 4 for instructions). 2.
  • Page 14: Maintenance Instructions

    K0080-1-2 MAINTENANCE INSTRUCTIONS Always unplug the air conditioner from the power supply before cleaning. To maximize the efficiency of the air conditioner, regularly clean the unit. Cleaning the Housing: • Use a soft, damp cloth to wipe the body clean. •...
  • Page 15: Troubleshooting

    K0080-1-2 TROUBLESHOOTING The air conditioner does not operate. Is the air conditioner plugged in? Is the power outlet functioning correctly? Is the full water tank indicator light flashing? Is the ambient room temperature lower than the set temperature? Is the filter dusty or dirty? Is the air inlet or outlet blocked? The unit does not produce adequate Is the unit placed in direct sunlight? If so, close...
  • Page 16: Technical Specifications

    K0080-1-2 TECHNICAL SPECIFICATIONS Model Number: AC-14000E AC-14000H Power/Ampere Consumption 1420W / 12.8A for Cooling* Power/Ampere Consumption 1420W / 12.8A for Heating* Air Volume (max. speed) 450m Voltage / Frequency 115V, 60Hz Compressor Type Rotary Refrigerant Type R-410A Number of Fan Speeds Timer 1~24 hours Exhaust Pipe Dimensions...
