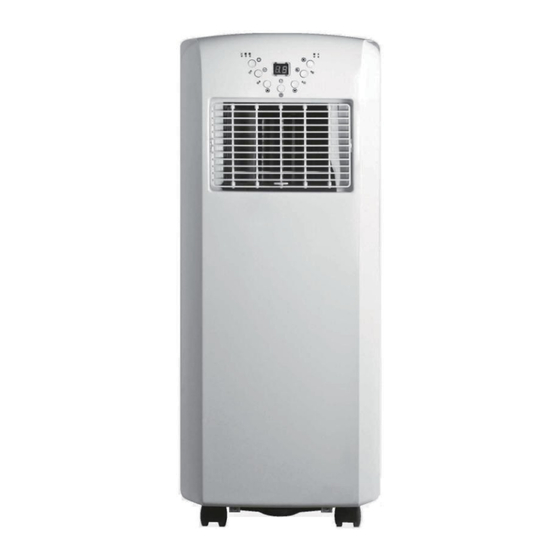

NewAir AC-10100E Owner's Manual
Hide thumbs
Also See for AC-10100E:
- Owner's manual (16 pages) ,
- Owner's manual (17 pages) ,
- Owner's manual (17 pages)
Related Manuals for NewAir AC-10100E
Summary of Contents for NewAir AC-10100E
- Page 1 AC-10100E AC-10100H Portable Air Conditioner OWNERS MANUAL Read and save these instructions...
- Page 2 Count on NewAir. As a proud NewAir owner, welcome to our family. There are no robots here, real people shipped your product and real people are here to help you.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BEFORE USE ..................PARTS ....................INSTALLATION ..................OPERATION ..................DRAINING THE UNIT ................MAINTENANCE INSTRUCTIONS ............FAULT CHECK LIST ................TECHNICAL SPECIFICATIONS ............. WARRANTY PAGE ................A Name You Can Trust... -
Page 4: Before Use
BEFORE USE For safety reasons, please read this manual carefully before operating. We strongly recommend keeping this manual in a safe place for future reference. GENERAL SAFETY Do not use a damaged power cord. Do not clamp or bend the power cord. - Page 5 ELECTRICAL SAFETY • This appliance is for indoor use only. • Always turn off the unit and unplug it when not in use. • Do not use this unit in excessively humid or wet environments. • Do not pull or place strain on the power cord when moving the appliance. •...
-
Page 6: Parts
PARTS Control panel Air outlet Carrying handle Caster Cord storage Air filter Air inlet Exhaust air outlet Air inlet 10. Rubber plug/ drainage point 11. Hose adaptor (goes over the hose and into · © the window kit) 12. Exhaust hose Extendable window kit 14. -
Page 7: Installation
INSTALLATION Extendable window kit 1. Open the window and insert the window kit into the open gap. Close the window until the window kit is held securely. You may need to adjust the size of the window kit and secure it with screws. This technique may also be used for sash windows. - Page 8 Mounting of the Exhaust Pipe • Only use the hose provided and clip exhaust hose to the back of the air conditioner. • Avoid kinks and bends in the exhaust hose. This can cause humid air to accumulate, causing the unit to overheat and shut down.
- Page 9 Installation of the Carbon Filter Remove the filter frame from the unit. Separate the filter fixer from the filter frame. Remove the activated carbon filter from its plastic bag. Attach the activated carbon filter to the filter frame. Reattach the filter fixer onto the filter frame {the activated carbon filter should be placed between the filter frame and filter fixer firmly).
-
Page 10: Operation
Press the ON/OFF button. The unit will start automatically: For cooling only model: AC-10100E R.T. (room temperature) ≥ 75 F → the unit will work in cooling mode R.T. < 75 F → the unit will work in fan mode For cooling &... - Page 11 Setting the Model/Function: Press the MODE button to select the desired mode (cooling, fan or heating). Setting Temperature Press 'Temperature up' or 'Temperature down' button to change the set temperature. The display window will indicate the set temperature. If not, the temperature displayed will show the ambient room temperature.
- Page 12 Heating Function (For AC-101OOH Only) 1. When the air conditioner is in heating mode, ambient warm air is recycled and used to heat your immediate area. The exhaust pipe will still need to be fitted onto the unit in order for the cold air to be removed.
-
Page 13: Draining The Unit
DRAINING THE UNIT During the cooling process, some water will be extracted from the air and stored within the unit's water reservoir. If the reservoir is full, both the compressor and motor will stop and the unit will beep (press any button to stop the beeping sound}. - Page 14 • The drain tube may be extended by adding an extension tube with a suitable connector. Drain tube Please Note: The drain must be at or below the level Original drain " c::: : :J tube of the drainage port. 2.
-
Page 15: Maintenance Instructions
MAINTENANCE INSTRUCTIONS Always unplug the air conditioner from the power supply before cleaning. To maximize the efficiency of the air conditioner, regularly clean the unit. Cleaning the Housing: • Use a soft, damp cloth to wipe the body clean. • Never use aggressive chemicals, gasoline, detergents, chemically treated... -
Page 16: Fault Check List
FAULT CHECK LIST • The air conditioner does not run. Is the air conditioner plugged in? • Is the power outlet functioning correctly? • Is the full water tank indicator light flashing? • Is the ambient room temperature lower than the set temperature? The unit does not produce enough •... -
Page 17: Technical Specifications
TECHNICAL SPECIFICATIONS Model no. AC-10100E AC-10100H Power Supply 115V-, 60Hz Power Consumption / I 10A I 10A 1070W 1070W Ampere (Cooling) Power Consumption / 890W I 8.4A Ampere (Heating) Air Volume (Max. Speed) 210 CFM ( 355m Dehumidification Capacity 4.6 pints/hour... -
Page 18: Warranty Page
When making a warranty claim, please have the original bill of purchase with purchase date available. Once confirmed that your appliance is eligible for warranty service, all repairs will be performed by a NewAir™ authorized repair facility. The purchaser will be responsible for any removal or transportation costs.
