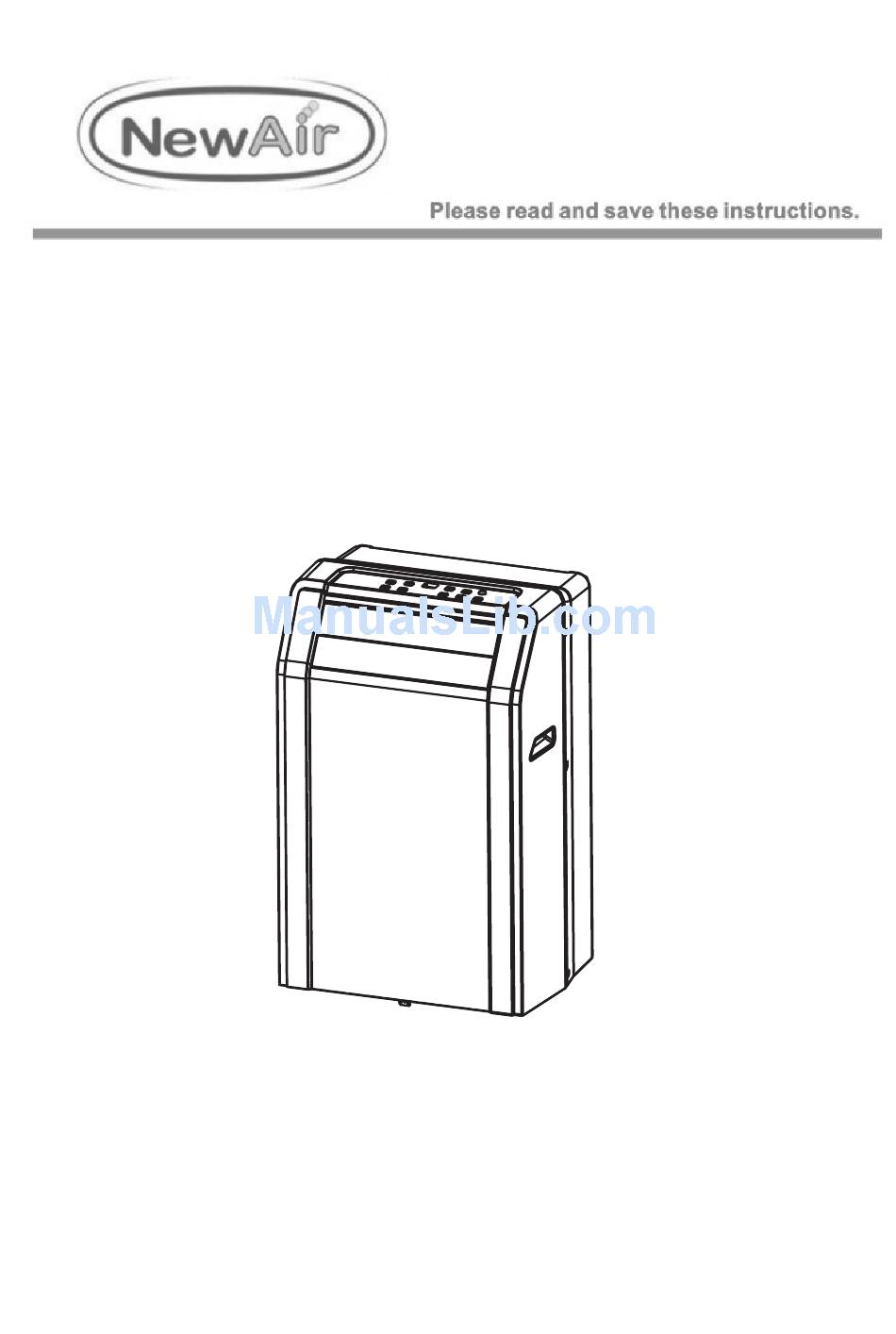

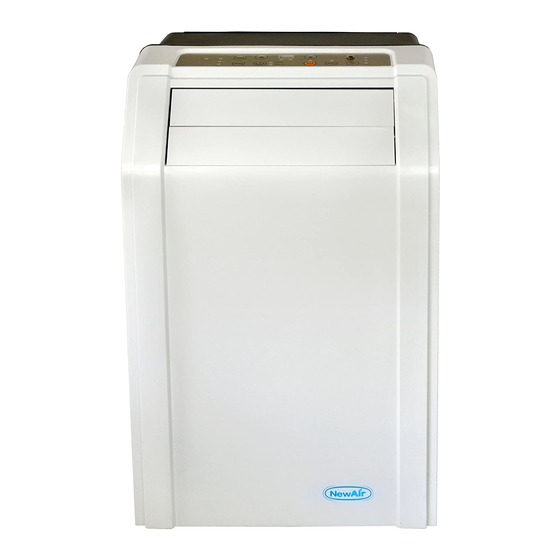

- Page 1 AC-12100E PORTABLE AIR CONDITIONER ’ OW NER S MANU AL...
-
Page 2: Table Of Contents
CONTENTS Welcome Introduction............................2 SAFETY PRECAUTIONS Safety rules ............................3 Operating condition ...........................3 Electrical information .........................4 IDENTIFICATION OF PARTS Accessories ............................4 Names of parts...........................5 AIR CONDITIONER FEATURES Electronic control operating instructions ...................6 OPERATING INSTRUCTIONS Operating instructions ........................7 INSTALLATION INSTRUCTIONS Location ............................9 Window kit installation ........................9 Exhaust hose installation ........................12 Water drainage ..........................13 CARE AND MAINTENANCE... -
Page 3: Introduction
INTRODUCTION When using this air conditioner, please keep the following information in mind: DISPOSAL: Do not dispose of this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. It is prohibited to dispose of this appliance in domestic household waste. For disposal, the following options may be available: A) The municipality has established collection systems, where electronic waste can be bedisposed of free of charge to the user. -
Page 4: Safety Precautions Safety Rules
SAFETY PRECAUTIONS Safety rules To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. Always Do This: Never Do This: Do not operate your air conditioner in a wet room such as a bathroom or laundry room. -
Page 5: Electrical Information
IDENTIFICATION OF PARTS For your safety WARNING Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove any prong from the power cord. -
Page 6: Names Of Parts
IDENTIFICATION OF PARTS NAMES OF PARTS Front Operation Panel Horizontal Louver Blade (Swing automatically) Caster Carrying Handle (Both sides) Fig.1 Model A Operation Panel Horizontal Louver Blade (Manual) Remote signal receptor Caster Carrying Handle (Both) Model B Fig.2 Rear Upper Air Filter (Behind the grille) Air Outlet Power Cord Outlet... -
Page 7: Air Conditioner Features
AIR CONDITIONER FEATURES ELECTRONIC CONTROL OPERATING INSTRUCTIONS Before you begin, thoroughly familiarize yourself with the control panel and remote controller and all its functions, then follow the symbol for the functions you desire. The unit can be controlled by the unit control panel alone or with the remote controller . NOTE: This manual does not include remote control operation instructions.Please see the Remote Control Operation Instructions packed with the unit for details. -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS SWING button FAN operation (Applicable to the models with auto swing feature only) Press the "MODE" button until the When power is ON, press the SWING "FAN" indicator light comes on. button to stop the louver at the desired Press the "FAN SPEED"... -
Page 9: Other Features
OPERATING INSTRUCTIONS Other features Power Outage In case of a power outage or interruption, the unit will automatically re-start, in the settings last used, after the power is restored. Wait 3 minutes before resuming operation After the unit has stopped, operation cannot Adjust manually be restarted for the first 3 minutes after power has been restored. -
Page 10: Installation Instructions Location
INSTALLATION INSTRUCTIONS (optional ) INSTALLATION INSTRUCTIONS Location The air conditioner should be placed on a firm foundation to minimize noise and vibration. For safe and secure positioning, place the unit on a smooth, level floor strong enough to support the unit. The unit has casters to aid placement, but it should only be rolled on smooth, flat surfaces. - Page 11 INSTALLATION INSTRUCTIONS (optional) Installation in a double-hung sash Foam seal A (adhesive type) window 1. Cut the foam seal (adhesive type) to the proper length and attach it to the window stool. Fig.10 Fig.10 2. Attach the window slider kit to the window stool. Adjust the length of the window slider kit according Window kit to the width of window;...
- Page 12 INSTALLATION INSTRUCTIONS (optional) Installation in a sliding sash Foam seal A window (adhesive type) 1. Cut the foam seal (adhesive type) to the proper length and attach it to the window frame,Fig.14. Fig.14 2. Attach the window slider kit to the window stool. Adjust the length of the window slider kit according to the width of window;...
-
Page 13: Exhaust Hose Installation
INSTALLATION INSTRUCTIONS (optional) Exhaust hose installation: The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. Fig.18a Fig.18b COOL,HEAT(heat pump type) or AUTO Install mode FAN,DEHUMIDIIFY or HEAT(electrical heat type) Remove mode 1. Install the window exhaust adaptor B onto the exhaust hose as shown in Fig.18a. -
Page 14: Water Drainage
INSTALLATION INSTRUCTIONS Water drainage: During dehumidifying modes, remove the drain Remove the plug from the back of the unit; install the drain drain plug connector (5/8 universal female mender) with 3 4 hose (not included). For the models without drain connector, just attach the drain hose to the hole. -
Page 15: Care And Maintenance
CARE AND MAINTENANCE CARE AND MAINTENANCE Air filter (slide out) IMPORTANT: 1) Be sure to unplug the unit before cleaning or servicing. 2) Do not use gasoline, thinner or other chemicals to clean the unit. 3) Do not wash the unit directly under a tap or using a hose. It may cause electrical danger. -
Page 16: Troubleshooting Tips
TROUBLESHOOTING TIPS TROUBLE SHOOTING TROUBLES POSSIBLE CAUSES SUGGEST REMEDIES 1. Unit does not - P1 appears in the display window Drain the water in the bottom tray. start when pressing on/off - Room temperature is lower than Reset the temperature. button the set temperature.(Cooling mode) - The windows or doors in the room... - Page 17 When making a warranty claim, please have the original bill of purchase with purchase date available. Once confirmed that your appliance is eligible for warranty service, all repairs will be performed by a NewAir™ authorized repair facility. The purchaser will be responsible for any removal or transportation costs. Replacement parts and/or units will be new, re-manufactured or refurbished and is subject to the manufacturer’s discretion.
