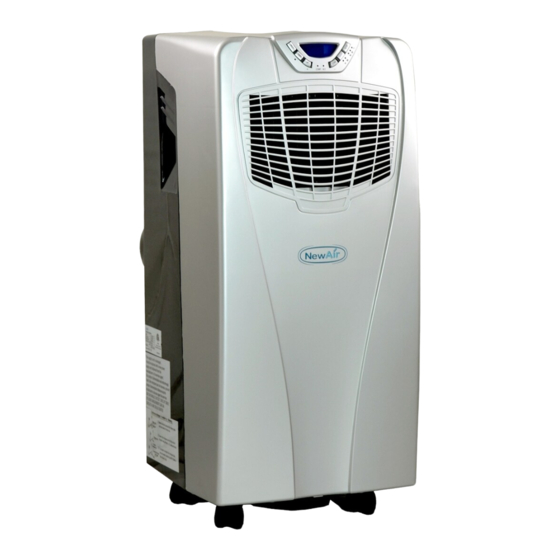

NewAir AC-10000E,
AC-10000H
Portable Air Conditioner
Owner's
Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the AC-10000E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NewAir AC-10000E

Summary of Contents for NewAir AC-10000E

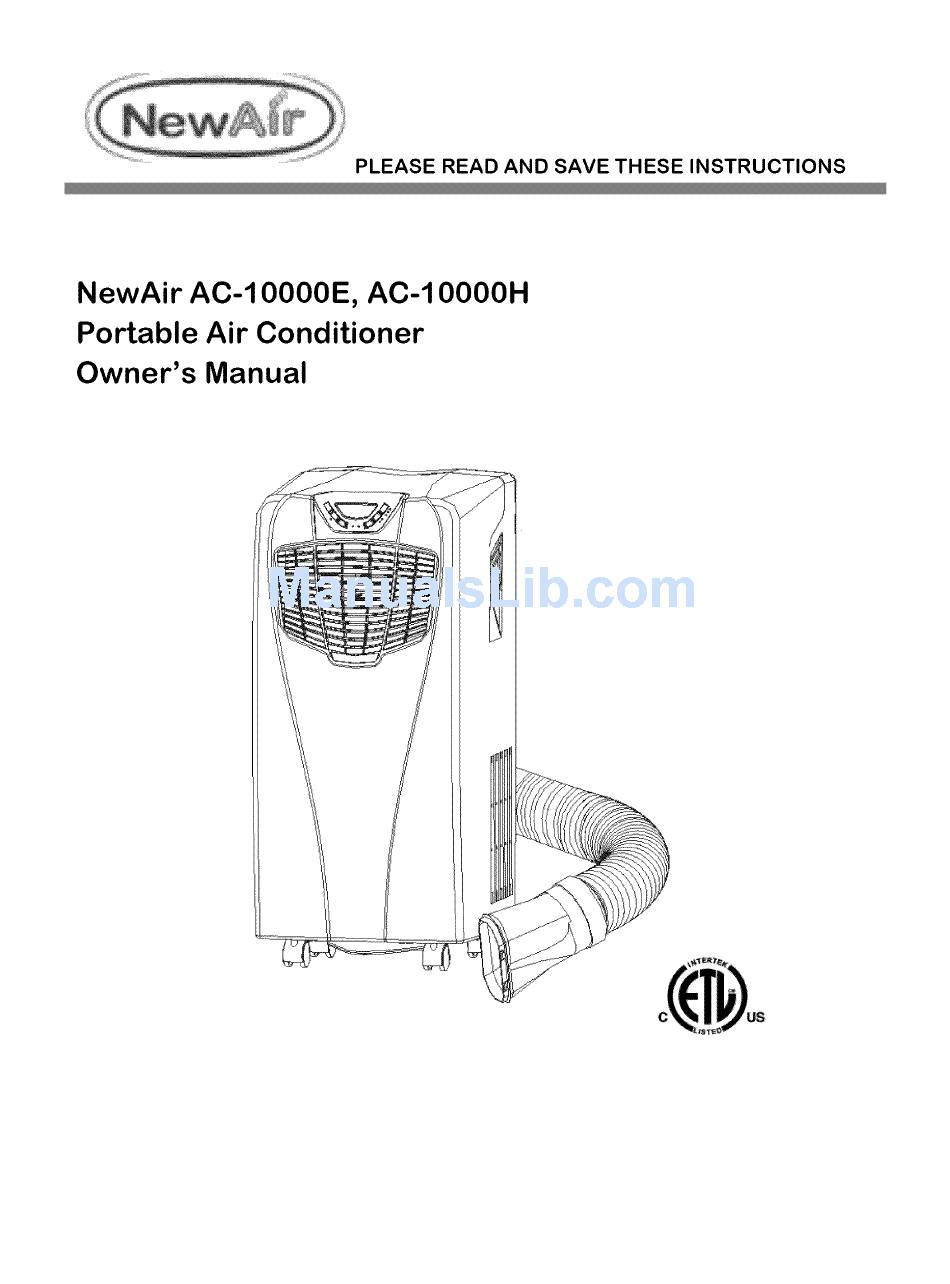

  • Page 1 PLEASE READ AND SAVE THESE INSTRUCTIONS NewAir AC-10000E, AC-10000H Portable Air Conditioner Owner's Manual...

  • Page 2: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS: ALWAYS OPERATE THE UNIT IN AN UPRIGHT POSITION AND PLACE IT ON A FLAT, LEVEL SURFACE AT LEAST 14" FIG. 1 (36CM) AWAY FROM ANY OTHER OBJECTS (FIG 1 & 4). DO NOT PLACE OBJECTS ON THE UNITAND DO NOT COVER OR OBSTRUCT THE INLET OR OUTLET GRILLES (FIG.
  • Page 3 FOR MAXIMUM EFFICENCY: Make sure doors and windows are closed while the portable air conditioner is in use. Also keep curtains and blinds closed during the sunniest parts of the day while it is in operation. Frequently clean the filters. Once the room or area has reached your desired comfort level, be sure to reduce the unit's temperature and ventilation settings.
  • Page 4 Front Back FIG.6 Display window Cord wrap Air filter Control panel Control buttons Air inlet Louvers Exhaust air outlet Air inlet Carrying handle Casters Water plug/drainage port Accessories Hose adaptor (goes over hose and into the window kit) Exhaust hose Activated carbon filter Extendable window kit Hose for continuous drainage...
  • Page 5 Installing the Exhaust Hose FIG.8 Open the window and insert the window kit into the open gap. Close the window until the window kit is held securely. You may need to adjust the size of the window kit and secure it with screws. This technique may also be used for sash windows.
  • Page 6 Positioning the Exhaust Hose Insert the exhaust hose into the back of the unit and tighten it into place. Avoid kinks and bends in the FIG. 9 exhaust hose. These can cause expelled moist air to accumulate, resulting overheating and unexpected shut offs (See Fig 9 &...
  • Page 7 Installing the Activated Carbon Filter Remove the filter frame from the unit. Remove the activated carbon filter from its plastic bag. Insert the activated carbon filter into the back of the unit. Reattach the filter frame onto the unit. FIG.13...
  • Page 8 Control Panel FIG.14 ON/OFF (power) button Heating mode indicator light (only for Timer button AC-10000H) Timer indicator light Fan mode indicator light Temperature increase button Cooling mode indicator light Compressor indicator light Automatic mode indicator light Mode selection button Full water tank indicator light Temperature decrease button Fan speed (ventilation) button Low ventilation indicator light...
  • Page 9 Setting the Temperature Press the UP or DOWN button to change the set temperature. The display window will then indicate the set temperature. If no temperature is set, the display will show the room's ambient temperature. Please note that the default cooling temperature of this portable air conditioner is 75 ° F. Setting the Fan/Ventilation Speed...
  • Page 10 Regulating the Air Flow Direction To control the air flow direction, adjust the knob on the louvers. FIG. 16 PLEASE NOTE: To prolong the life of the compressor, after turning off the unit, please wait at least 3 minutes before turning it back on. The cooling system will switch off if the ambient temperature...
  • Page 11 During the cooling process, some water will be extracted from the air and stored within the unit's water reservoir. If the water reservoir is full, both the compressor and motor will stop and the unit will beep (press any button to stop the beeping sound). The full water tank indicator light will also start flashing.
  • Page 12 Thedrainage hosemaybeextended by adding anextension hoseusinga suitable FIG.19 connector. Drainage hose PLEASE NOTE: included with the unit The drain must be at or below the level of the drainage port. FIG.20 The full water tank indicator light will not work when the unit is being continuously drained.
  • Page 13 Always unplug the air conditioner from the power supply before cleaning. To maximize the efficiency of the air conditioner, regularly clean the unit. Cleaning the Housing • Use a soft, damp cloth to wipe the body clean. • Never use strong chemicals, gasoline, detergents, chemically-treated cloths, or any other cleaning solutions to clean the air conditioner, as these can all potentially damage the unit's housing.
  • Page 14 Theair conditioner d oesnotfunction. • Isthe air conditioner p lugged in? • Isthe poweroutletfunctioning correctly? • Isthe fullwatertankindicator l ightflashing? • Isthe ambientroomtemperature lowerthanthe settemperature? The unit does not produce adequate • Is the unit placed in direct sunlight? If so, close cooling.

  • Page 15: Model Number

    ModelNumber: AC-10000E AC-10000H Voltage 115V / 60Hz / Frequency 909W / 8.3A Power Consumption for cooling" Power Consumption for heating" 830W / 7.6A 300 m3/h Air Volume (Maximum Speed) Dehumidification Capacity 2.1 pints/hr (1 L/hr) Compressor Type Rotary R-410A Refrigerant Type...
