Gaining Access to Memory Modules

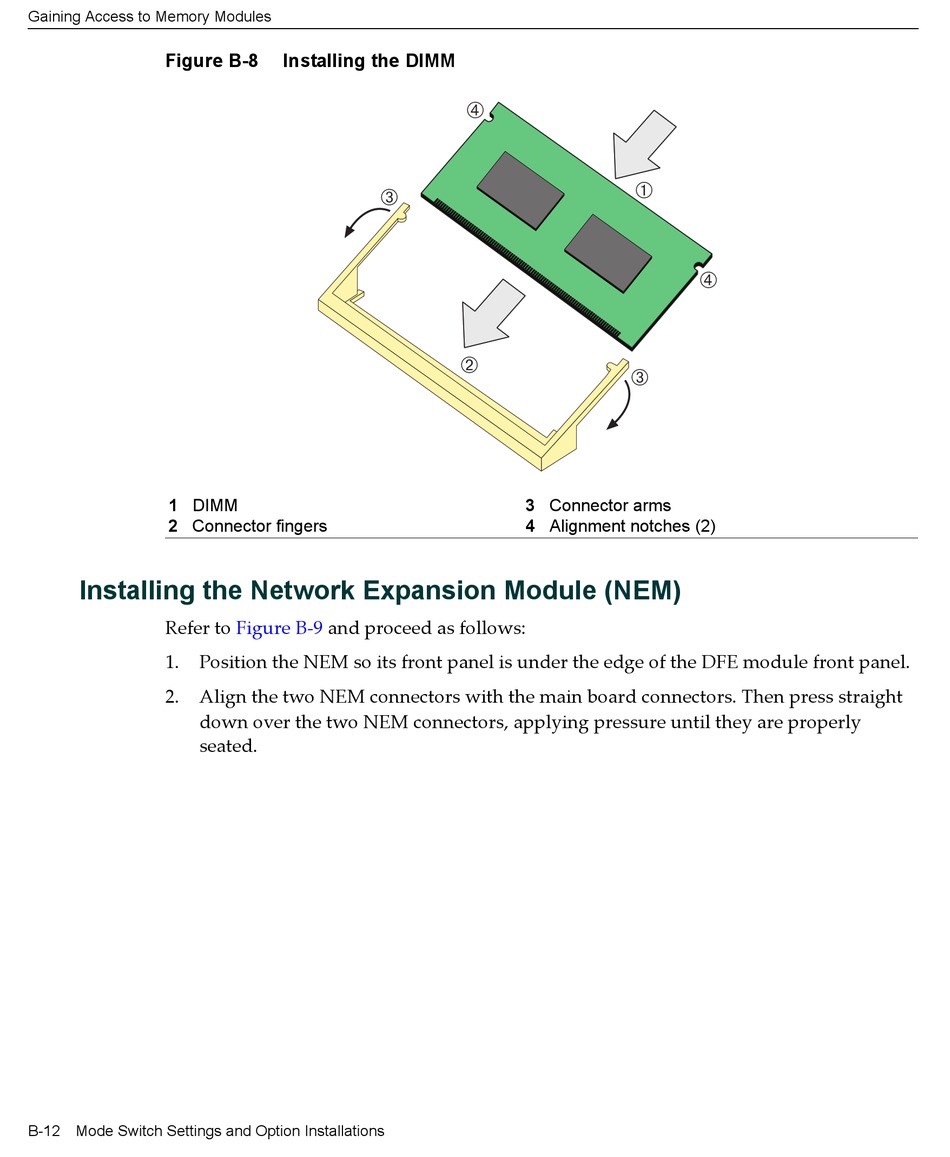

Figure B-8
1 DIMM
2 Connector fingers
Installing the Network Expansion Module (NEM)
Refer to Figure
1.
Position the NEM so its front panel is under the edge of the DFE module front panel.
2.
Align the two NEM connectors with the main board connectors. Then press straight
down over the two NEM connectors, applying pressure until they are properly
seated.
B-12 Mode Switch Settings and Option Installations
Installing the DIMM
Â
Á
B‐9 and proceed as follows:
Ã
À
Â
3 Connector arms
4 Alignment notches (2)
Ã
