Connecting to the Network

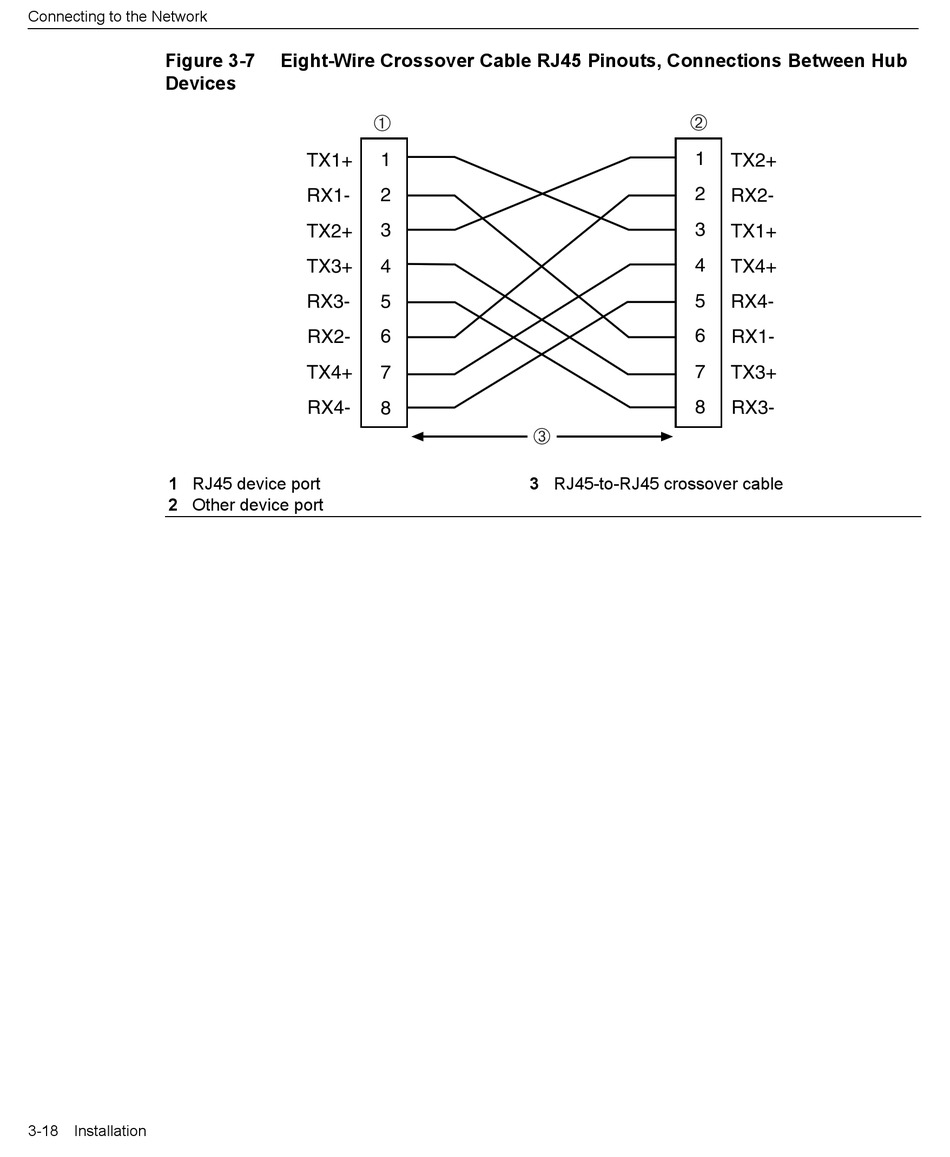

Figure 3-7
Devices
1 RJ45 device port
2 Other device port
3-18 Installation
Eight-Wire Crossover Cable RJ45 Pinouts, Connections Between Hub
À
Á
Â
3 RJ45-to-RJ45 crossover cable
