Preparing to Install Module into Matrix E7 or N7 Chassis

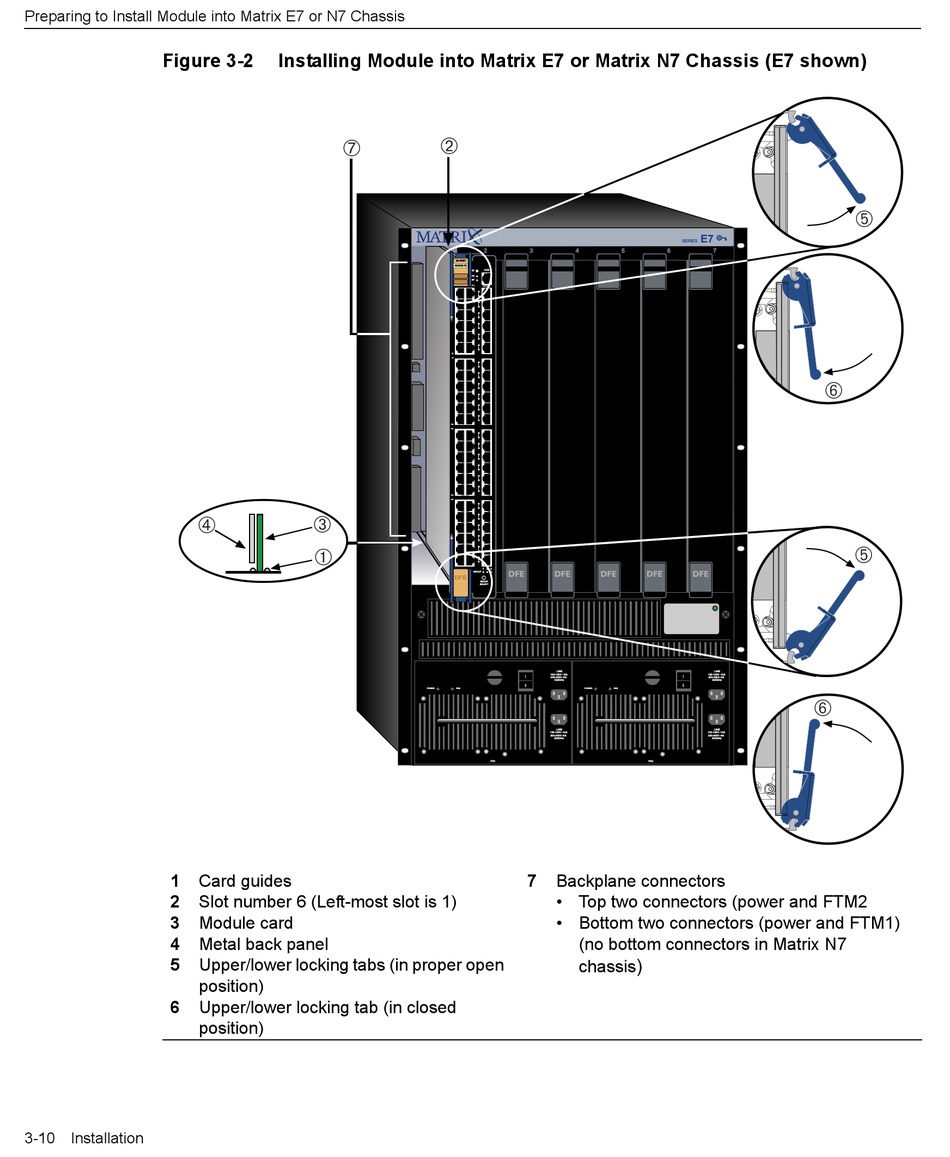

Figure 3-2
Ã
1
Card guides
2
Slot number 6 (Left-most slot is 1)
3
Module card
4
Metal back panel
5
Upper/lower locking tabs (in proper open
position)
6
Upper/lower locking tab (in closed
position)
3-10 Installation
Installing Module into Matrix E7 or Matrix N7 Chassis (E7 shown)
Á
Æ
Â
À
7
Backplane connectors
• Top two connectors (power and FTM2
• Bottom two connectors (power and FTM1)
(no bottom connectors in Matrix N7
)
chassis
Ä
Å
Ä
Å
