2. Locate the DIMM connector on the main PC board. Refer back to Figure
DIMM location on the DFE module.
3. Push the connector arms away from the DIMM, as shown in Figure
simultaneously lift the DIMM enough to release it from the connector fingers.

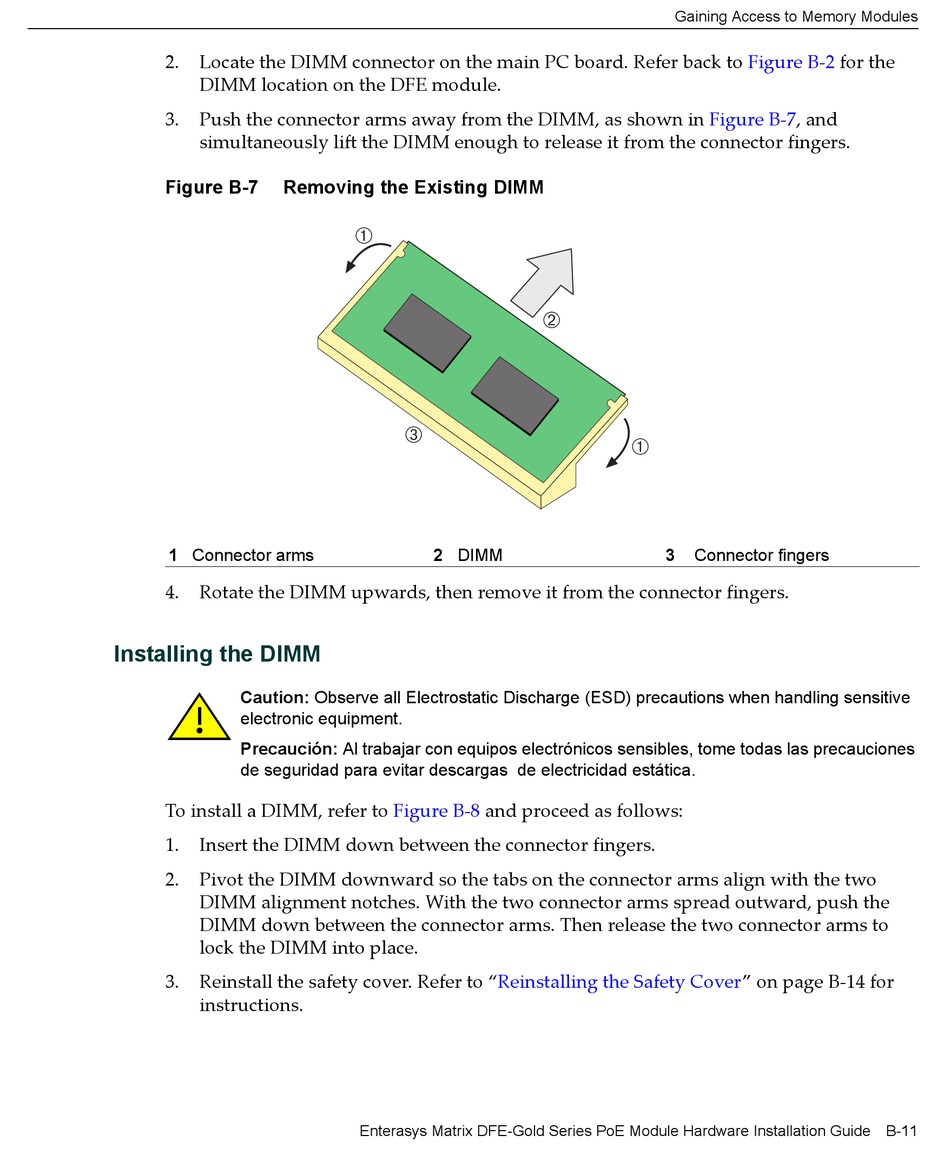

Figure B-7

Removing the Existing DIMM

1 Connector arms
4. Rotate the DIMM upwards, then remove it from the connector fingers.
Installing the DIMM
Caution: Observe all Electrostatic Discharge (ESD) precautions when handling sensitive
electronic equipment.
Precaución: Al trabajar con equipos electrónicos sensibles, tome todas las precauciones
de seguridad para evitar descargas de electricidad estática.
To install a DIMM, refer to Figure
1. Insert the DIMM down between the connector fingers.
2. Pivot the DIMM downward so the tabs on the connector arms align with the two
DIMM alignment notches. With the two connector arms spread outward, push the
DIMM down between the connector arms. Then release the two connector arms to
lock the DIMM into place.
3. Reinstall the safety cover. Refer to "Reinstalling the Safety Cover" on page B‐14 for
instructions.
