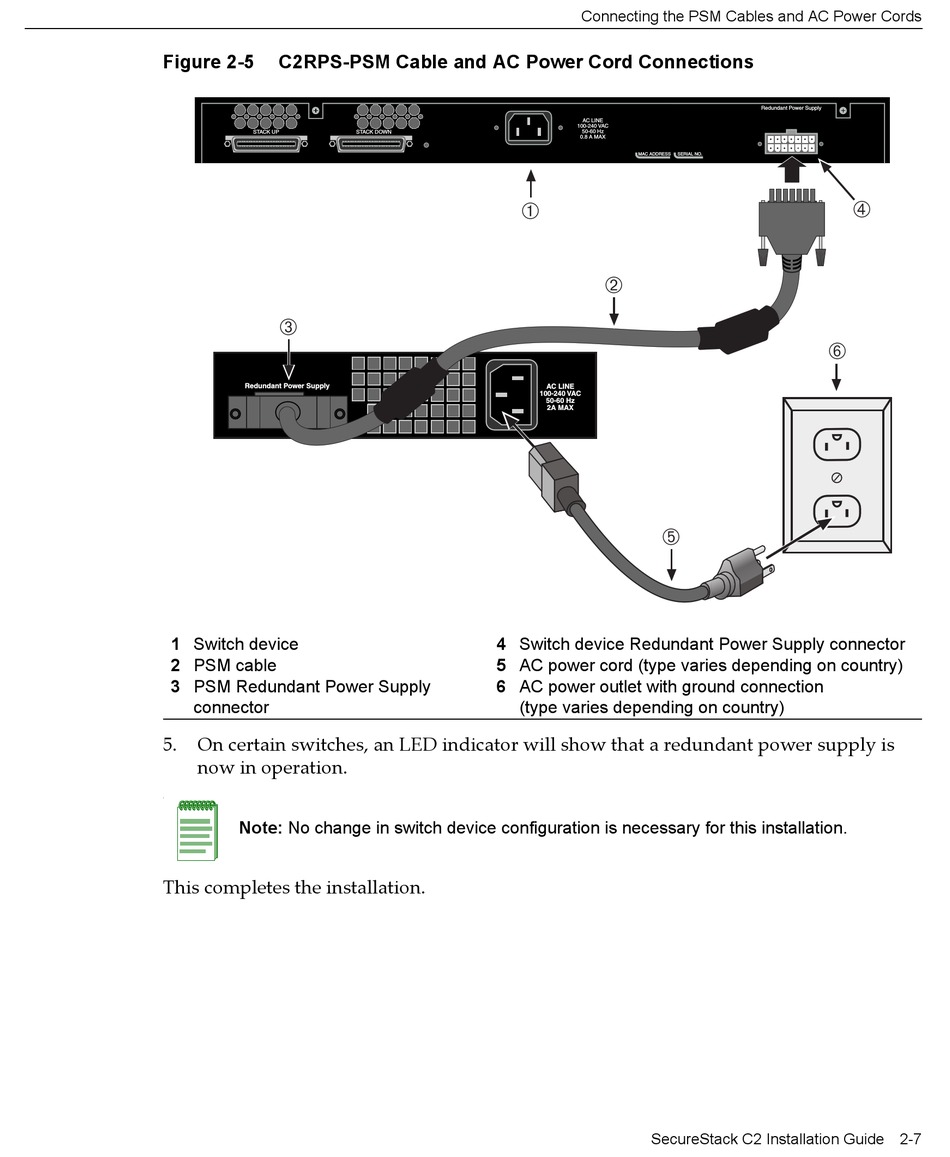

Figure 2-5
C2RPS-PSM Cable and AC Power Cord Connections
Â
1 Switch device
2 PSM cable
3 PSM Redundant Power Supply
connector
5.
On certain switches, an LED indicator will show that a redundant power supply is
now in operation.
.
Note: No change in switch device configuration is necessary for this installation.
This completes the installation.
Connecting the PSM Cables and AC Power Cords
À
Á
Ä
4 Switch device Redundant Power Supply connector
5 AC power cord (type varies depending on country)
6 AC power outlet with ground connection
(type varies depending on country)
SecureStack C2 Installation Guide 2-7
Ã
Å
