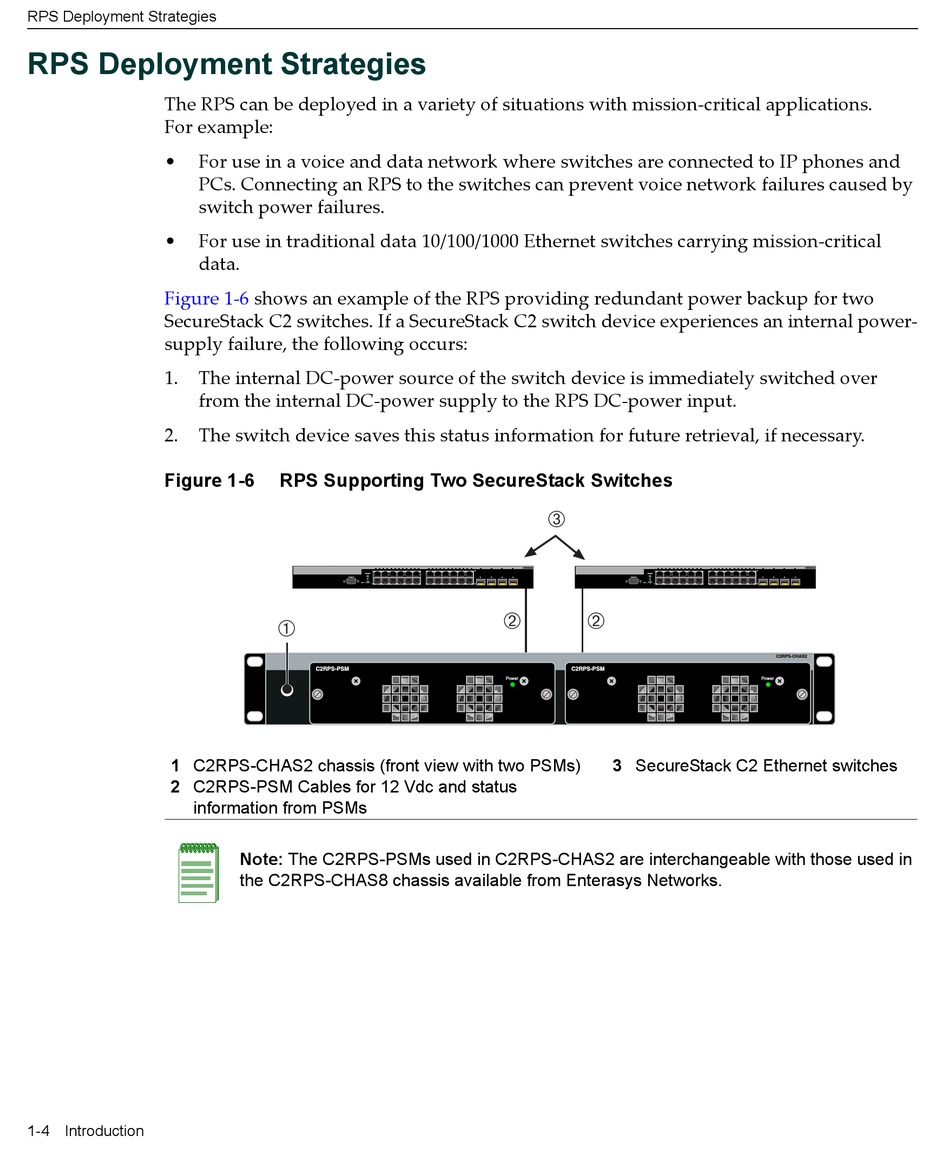

RPS Deployment Strategies

The RPS can be deployed in a variety of situations with mission‐critical applications.

For example:

•

For use in a voice and data network where switches are connected to IP phones and

PCs. Connecting an RPS to the switches can prevent voice network failures caused by

switch power failures.

•

For use in traditional data 10/100/1000 Ethernet switches carrying mission‐critical

data.

Figure

SecureStack C2 switches. If a SecureStack C2 switch device experiences an internal power‐

supply failure, the following occurs:

The internal DC‐power source of the switch device is immediately switched over

from the internal DC‐power supply to the RPS DC‐power input.

The switch device saves this status information for future retrieval, if necessary.

Figure 1-6

1 C2RPS-CHAS2 chassis (front view with two PSMs)

2 C2RPS-PSM Cables for 12 Vdc and status

information from PSMs

1-4 Introduction

1‐6 shows an example of the RPS providing redundant power backup for two

Note: The C2RPS-PSMs used in C2RPS-CHAS2 are interchangeable with those used in

the C2RPS-CHAS8 chassis available from Enterasys Networks.

3 SecureStack C2 Ethernet switches
