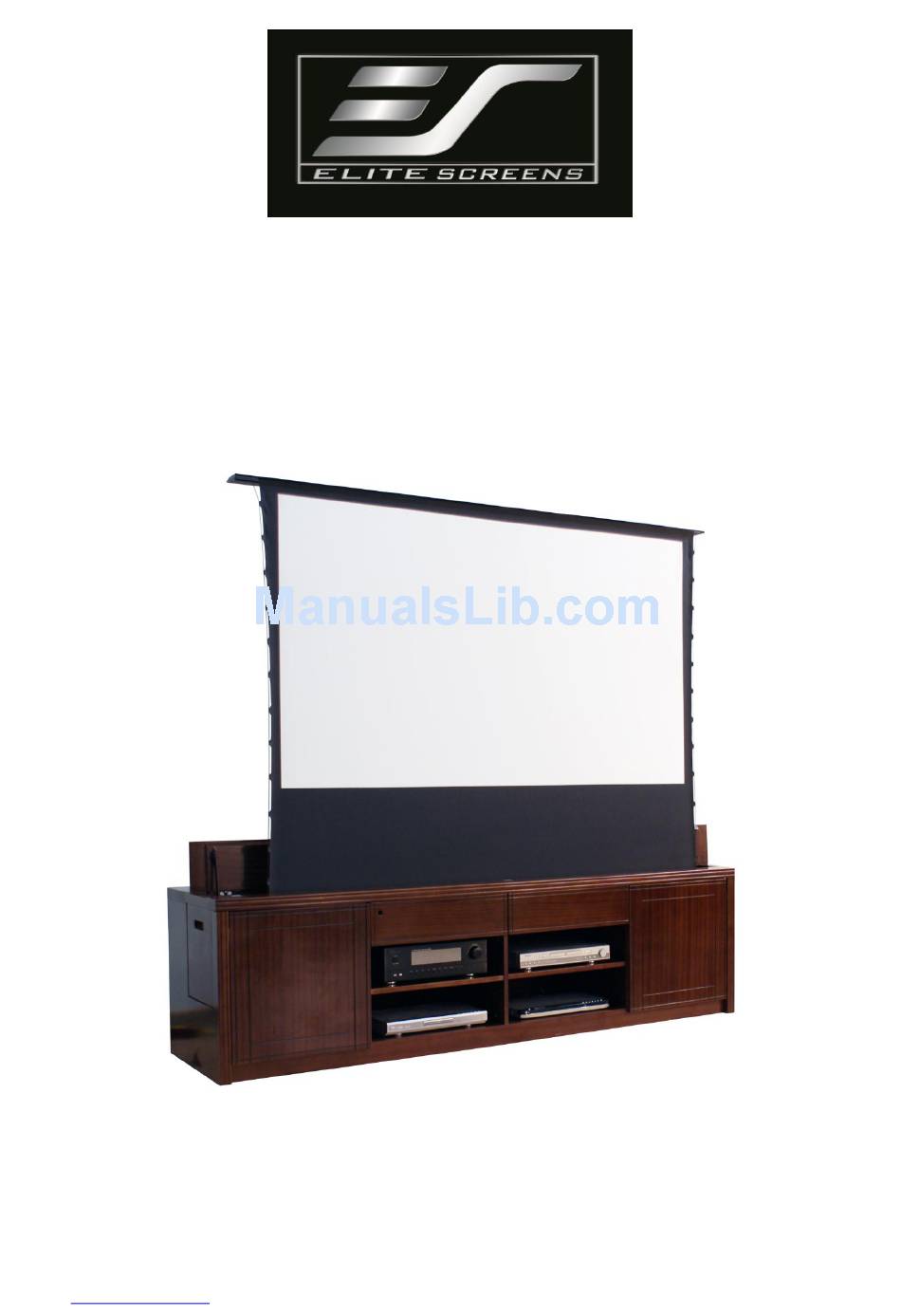

- Page 1 Raptor/Raptor Tension Series Electric Floor Rising Front Projection Screen User’s Guide Rev. 031210-JA www.elitescreens.com info@elitescreens.com...
-
Page 2: Components List
Components List A (Base) BCD (Partitions) E (Support) F (Veneer) GH (Sides) IJ (Doors) KLMN (Back) O (Cover) P (Cover) QR (Layer) Hardware Pack Connecting Bolt X 37 Connector Housing X 37 Shelf Support (nog) X 8 Screw X 8 Controllers AA Batteries 3-way Wall Switch... -
Page 3: Required Tool
Required Tool Phillips Head Screwdriver Use of connecting bolts when assembling the components Step1: Use a Phillips Head Screwdriver to attach the Connecting Bolt to the furniture components (unit-A). Step2: Insert the exposed section of the connecting bolt on (unit-A) into the hole on the side-edge of (unit-B). - Page 4 Operation The screen module (component-P) can be used by itself on a flat, level surface or it can be combined with Elite’s Raptor media stand housing as a fully assembled product. The power connection is located on the screen module’s rear right-hand leg support and feeds conveniently through the cabinet housing to its designated power source.
- Page 5 Assembly Step 1. Attach the Connecting Bolts to fixed to the base (component-A). Then attach the partitions (components-B, C and D) via the connecting bolts as described on page 2. X 6PCS 2. Install the Support (component-E) using the connecting bolts and housings. X 6pcs X 6pcs...
- Page 6 3. Veneer (component-F) Installation. X 6pcs X 2pcs 4. Attach the Side boards (components-G & H) to the Base and Veneer (components-A & F). X 2pcs X 12pcs 5. Lock the Connector Housings to secure the media stand’s body. X 4pcs...
- Page 7 6. Turn over the media stand and lock the connector housings on the bottom. X 8pcs 7. Attach the doors with the concealed hinges and install the back panels (components-K,L,M and N) using the grooves in (components-G, B, C, D, & H). X 8pcs...
- Page 8 8. Install the Cover (component-O) and lock with the connector housings. X 10pcs X 10pcs 9. Put the screen module (component-P) into the assembled media stand. It must align with the shelf supports (see enlarged image below) for a sccure fit and proper installation. Designed for screen module assembly...
- Page 9 10. Shelf installation: (adjustable) The shelf supports (nogs) have variable height placements. X 8pcs 11. Complete Infrared-Sensitive Safety Device (ISSD) This is a safety feature to prevent injuries caused by fingers, hair, etc. getting caught up in the screen’s closing mechanism. If the small infrared light beams are obstructed, the screen closing operation will halt immediately.
-
Page 10: Troubleshooting
6. When in use, please don’t reach into the screen case. 7. Do not disassemble your screen and attempt your own troubleshooting. Contact Elite Screens immediately regarding any technical difficulties (Ph. (USA): 877.511.1211 / Web (RMA?Warranty): http://www.elitescreens.com/service_form.htm 8. -
Page 11: Warranty Policy
An RMA (Return Merchandise Authorization) number must be issued in order to process a replacement. Elite Screens will replace the DOA (Defective On Arrival) unit with a brand new replacement *(see exceptions below) and cover standard ground shipping both ways. After the DOA unit is received and/or confirmed defective, Elite Screens will send out a new *unit to the customer by ground service (subject to inventory availability). -
Page 12: Contact Info
Fax: +86-(0)755-8461-7669 www.elitescreens.com/fr info@elitescreens.com.cn Tel: +33-1-45064735 www.elitescreens.com.cn Fax: +33-1-45064735 Taiwan: Latin America Contact: Elite Screens Taiwan Co. Ltd. erik.garcia@elitescreens.com No.38, Alley 22, Lane 66, Sec. 5, Nanjing E. Rd., Songshan District, Taipei City 105, East Asia Contact: Taiwan info.ea@elitescreens.com Tel: +886-2-2747-8979...
