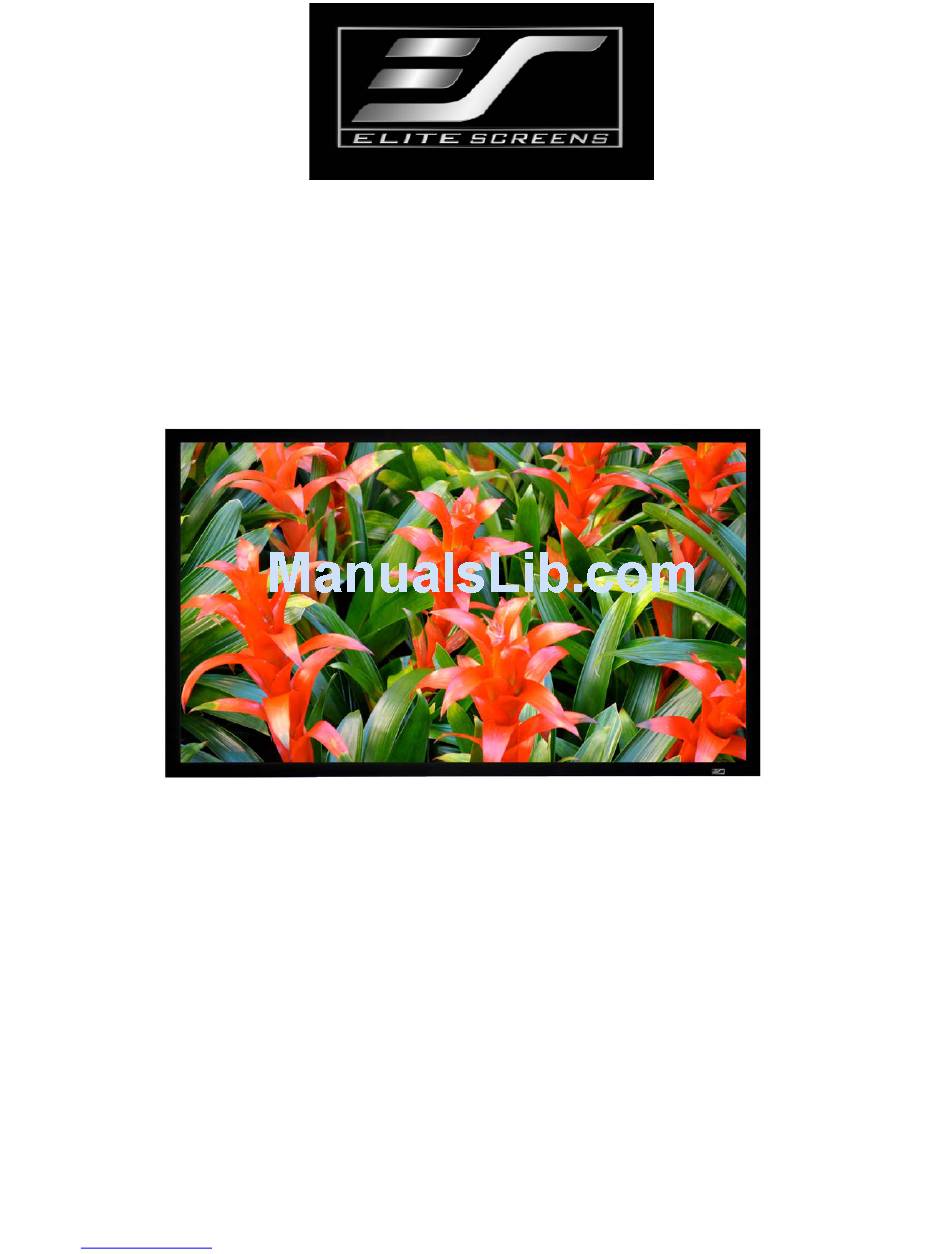

- Page 1 StarBright7 Fixed Frame Projection Screen User Guide ecex Rev. 091709‐JA www.elitescreens.com info@elitescreens.com ...
- Page 2 Attention: The StarBright7 screen material is composed of high quality sensitive multi-layer projection material. Please follow the pre-cautions below for proper care procedures and to prolong the life of your StarBright7. Failure to comply will result in voiding your warranty. Avoid using any chemical compounds or harsh abrasives which will result in permanently damaging the screen material.
-
Page 3: Assembling The Frame
Parts List 1. Frame Parts x 6 pcs (4 top frame pcs. + 2 side frame pcs) 2. Tension Rods x 6 pcs (4 top/bottom rods + 2 side rods) 3. StarBright7 Screen Material x 1 pc 4. Center joints x 2 pcs 5. Elbow Joints x4 pcs 6. Wall brackets x 2‐3 pcs (depending on model) 7. Screws x 16 pcs 8. User Guide x 1 pc 9. Center Support Bar x 1‐2 pc s (depending on model) 10. Support joiner x 2‐4 pcs (depending on model) 11. Fix Plates x 30‐90 pcs (depending on model) 12. Cotton gloves x 2 Note: Please make sure all parts are included in your package before proceeding to assemble your Elite Screens fixed frame projection screen. ASSEMBLING THE FRAME ... - Page 4 Please do not tighten the screws completely, to make sure the frame piece lines up correctly. 3. Insert both corner joint connectors into the long horizontal frame (see fig.1) Long frame Push Push Joint 4. ( fig.1) ...
- Page 5 Insert the exposed ends of the joint connectors into the short (vertical) frame and align the four corners so that they meet at perfect right angles Push ...
- Page 6 Pre‐Installation material damage disclaimer for StarBright7 **Important: Read before handling material ** The Starbright7 material is precision crafted to perform its role as a high gain, high contrast front projection surface. Because of this, it is very sensitive to how it is handled. When assembling the screen, please roll out the material slowly and carefully. It is easy to crease this material by grabbing, pinching, folding or otherwise handling it inappropriately. Instead of laying it out on a clean and level surface, it is better to unroll it to avoid damage. Please keep the material away from pets and children so that they do not accidentally tread on it. ...
- Page 7 Attaching the StarBright7 screen material to the frame Frame Screen material (1) Step1. To prevent damage to the screen material, please put on the cotton gloves (included) and carefully lay out the screen and frame on a clean and dry surface. Step2. Remove the protective film on the screen material. Step3. Keep “The back of the Screen Material” tag and face up as shown in fig. (2). Step3. Place the screen material on the back of the assembled frame as shown in fig. (3). Step4. Carefully unfold the screen material and make it parallel with the frame as shown in fig. (4). ...
- Page 8 CAUTION Please follow these instructions carefully to ensure proper maintenance and safety with your StarBright7 ez-Frame Screen 1. When hanging the screen up, please make sure that no other objects such as power switches, outlets, furniture, ladders, windows, etc. occupy the space designated for your Fixed-Frame screen.
-
Page 9: Installation
Center Support Bard Insert the support joiner into each side of the center support bar to complete assembly. support joiner Center support bar ... - Page 10 Method 1 (smaller than 121" diagonal) small wall brackets 3 pcs Method (larger than 121" diagonals) Small wall bracket 5 pcs (Fig. 1) ...
- Page 11 Unit: mm Screen View View Overall Overall Frame Frame Model Diag/Aspect Width Height Width (A) Height (B) Width (C) Height (D) Ratio (A1) (B1) R76H-G7 76"(16:9) 1802 1682 1066 R88H-G7 88"(16:9) 2068 1948 1216 1096 R103H-G7 103"(16:9) 2400 2280 1403 1283 R121H-G7 121"(16:9)
- Page 12 & handling fees. • DO NOT return any unauthorized items to Elite Screens, as they will be refused at shipper’s expense. The RMA number must be included on the outside label of your shipping box and shipping documents. Our warehouse is not authorized to accept returns without an RMA number on the shipping label.
- Page 13 +886-(02)2747-8979 America: Elite Screens Inc 16410 Manning Way, Cerritos, CA 90703 USA Tel: 877-511- 1211 Fax: 562-483-8498 info@elitescreens.com www.elitescreens.com Europe: Elite Screens Europe GmbH Lübecker Straße,122087 Hamburg, Germany Tel: +49-40-30392494 Fax: +49-40-49219200 info@elitescreens.eu www.elitescreens.eu Asia: Elite Screens China Ltd.
