Various Settings

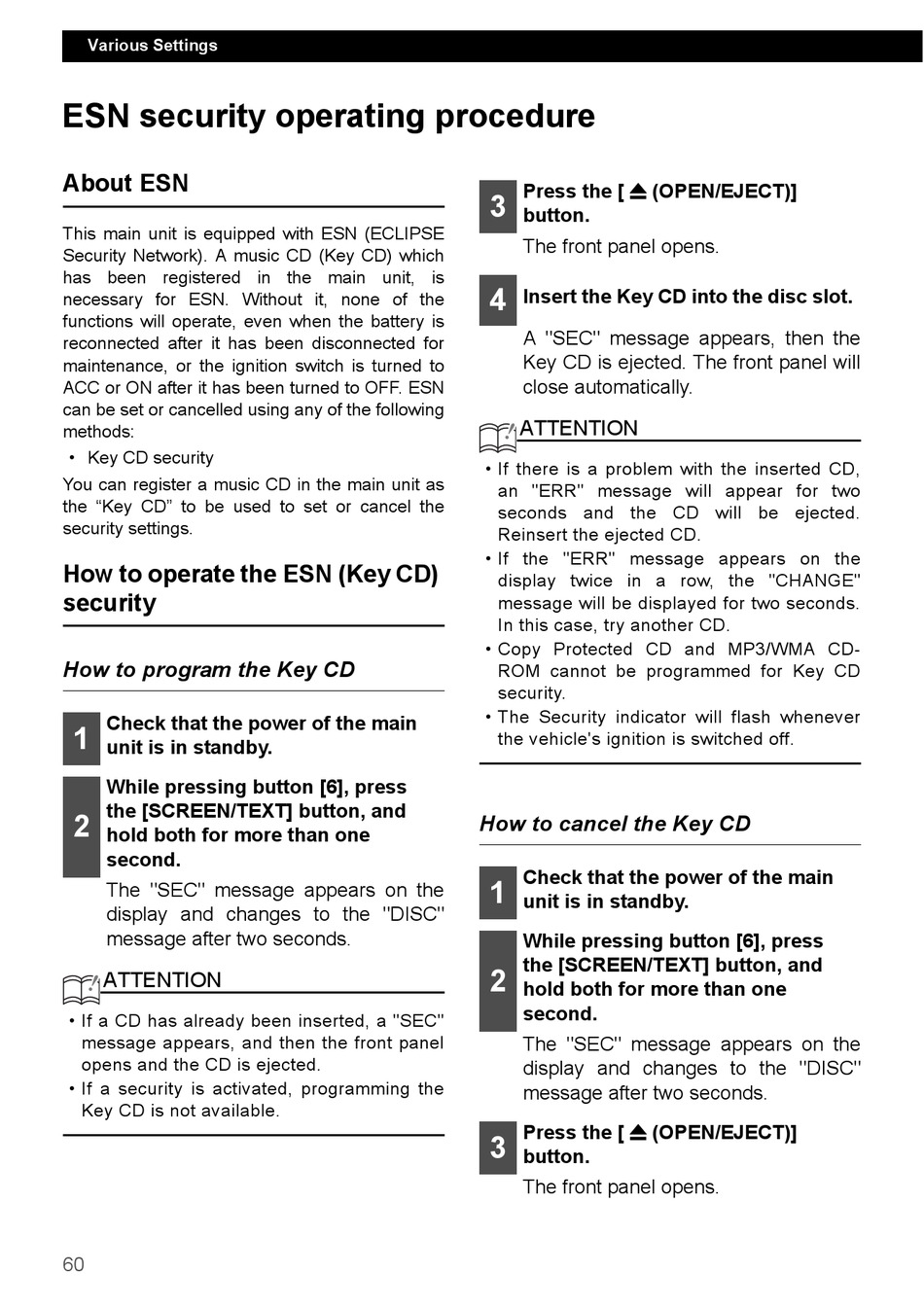

ESN security operating procedure

About ESN

Various Settings
This main unit is equipped with ESN (ECLIPSE
Security Network). A music CD (Key CD) which
has been registered in the main unit, is
necessary for ESN. Without it, none of the
functions will operate, even when the battery is
reconnected after it has been disconnected for
maintenance, or the ignition switch is turned to
ACC or ON after it has been turned to OFF. ESN
can be set or cancelled using any of the following
methods:
• Key CD security
You can register a music CD in the main unit as
the "Key CD" to be used to set or cancel the
security settings.
How to operate the ESN (Key CD)
security

How to program the Key CD

Check that the power of the main
1
unit is in standby.
While pressing button [6], press
the [SCREEN/TEXT] button, and
2
hold both for more than one
second.
The "SEC" message appears on the
display and changes to the "DISC"
message after two seconds.
ATTENTION
• If a CD has already been inserted, a "SEC"
message appears, and then the front panel
opens and the CD is ejected.
• If a security is activated, programming the
Key CD is not available.
60
Press the [ e (OPEN/EJECT)]
3
button.
The front panel opens.
4
Insert the Key CD into the disc slot.
A "SEC" message appears, then the
Key CD is ejected. The front panel will
close automatically.
ATTENTION
• If there is a problem with the inserted CD,
an "ERR" message will appear for two
seconds and the CD will be ejected.
Reinsert the ejected CD.
• If the "ERR" message appears on the
display twice in a row, the "CHANGE"
message will be displayed for two seconds.
In this case, try another CD.
• Copy Protected CD and MP3/WMA CD-
ROM cannot be programmed for Key CD
security.
• The Security indicator will flash whenever
the vehicle's ignition is switched off.

How to cancel the Key CD

Check that the power of the main
1
unit is in standby.
While pressing button [6], press
the [SCREEN/TEXT] button, and
2
hold both for more than one
second.
The "SEC" message appears on the
display and changes to the "DISC"
message after two seconds.
Press the [ e (OPEN/EJECT)]
3
button.
The front panel opens.
