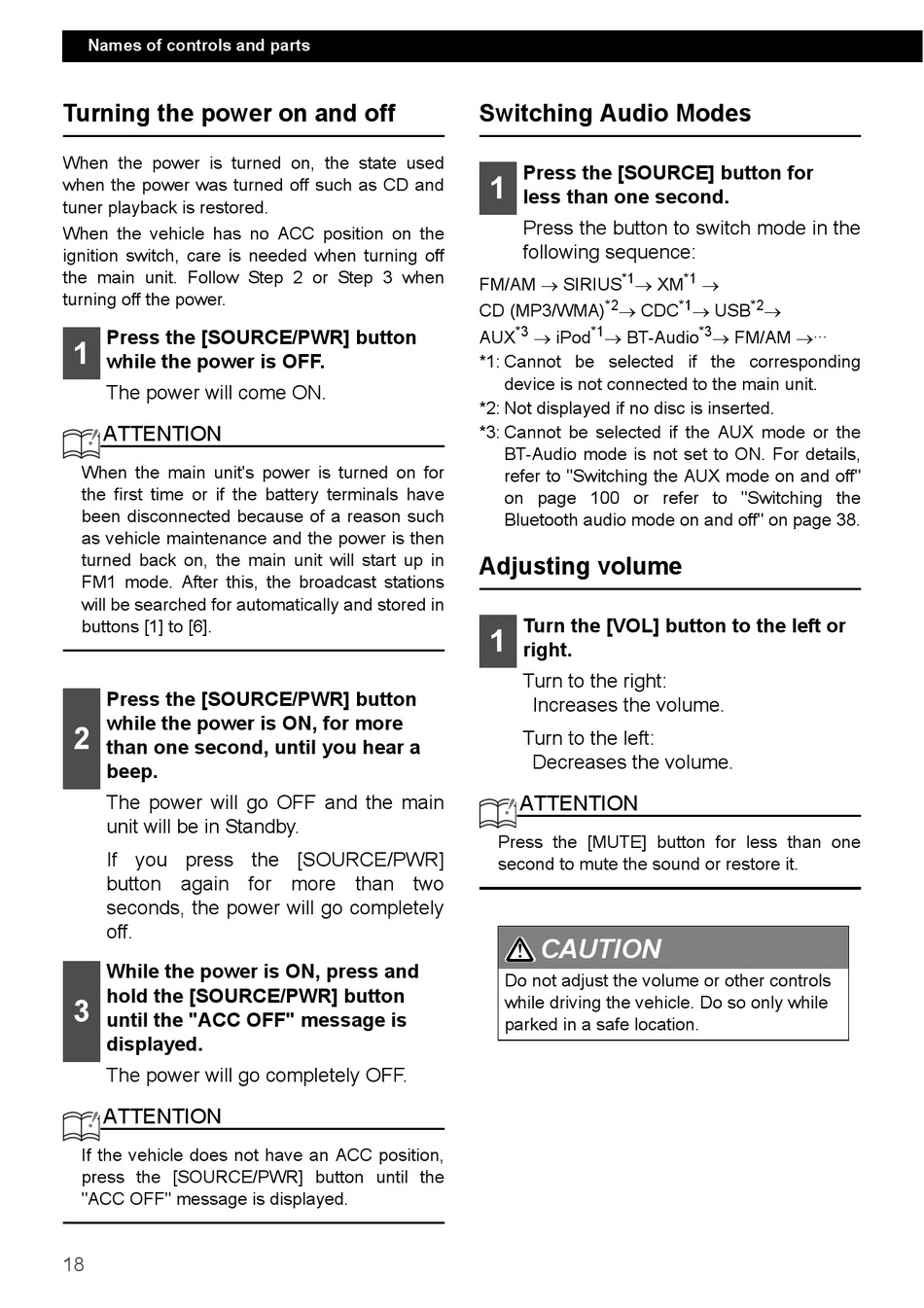

Names of controls and parts

Turning the power on and off

When the power is turned on, the state used
when the power was turned off such as CD and
tuner playback is restored.
When the vehicle has no ACC position on the
ignition switch, care is needed when turning off
the main unit. Follow Step 2 or Step 3 when
turning off the power.
Press the [SOURCE/PWR] button
1
while the power is OFF.
The power will come ON.
ATTENTION
When the main unit's power is turned on for
the first time or if the battery terminals have
been disconnected because of a reason such
as vehicle maintenance and the power is then
turned back on, the main unit will start up in
FM1 mode. After this, the broadcast stations
will be searched for automatically and stored in
buttons [1] to [6].
Press the [SOURCE/PWR] button
while the power is ON, for more
2
than one second, until you hear a
beep.
The power will go OFF and the main
unit will be in Standby.
If you press the [SOURCE/PWR]
button again for more than two
seconds, the power will go completely
off.
While the power is ON, press and
hold the [SOURCE/PWR] button
3
until the "ACC OFF" message is
displayed.
The power will go completely OFF.
ATTENTION
If the vehicle does not have an ACC position,
press the [SOURCE/PWR] button until the
"ACC OFF" message is displayed.
18

Switching Audio Modes

Press the [SOURCE] button for
1
less than one second.
Press the button to switch mode in the
following sequence:
*1
FM/AM → SIRIUS → XM
*2
→ CDC
CD (MP3/WMA)
*3 *1
→ iPod → BT-Audio
AUX
*1: Cannot be selected if the corresponding
device is not connected to the main unit.
*2: Not displayed if no disc is inserted.
*3: Cannot be selected if the AUX mode or the
BT-Audio mode is not set to ON. For details,
refer to "Switching the AUX mode on and off"
on page 100 or refer to "Switching the
Bluetooth audio mode on and off" on page 38.

Adjusting volume

Turn the [VOL] button to the left or
1
right.
Turn to the right:
Increases the volume.
Turn to the left:
Decreases the volume.
ATTENTION
Press the [MUTE] button for less than one
second to mute the sound or restore it.
CAUTION
1 2
Do not adjust the volume or other controls
while driving the vehicle. Do so only while
parked in a safe location.
*1
→
*1 *2
→ USB →
*3
→ FM/AM →
