Remote Start Harness (H3),
Wire Connection Guide

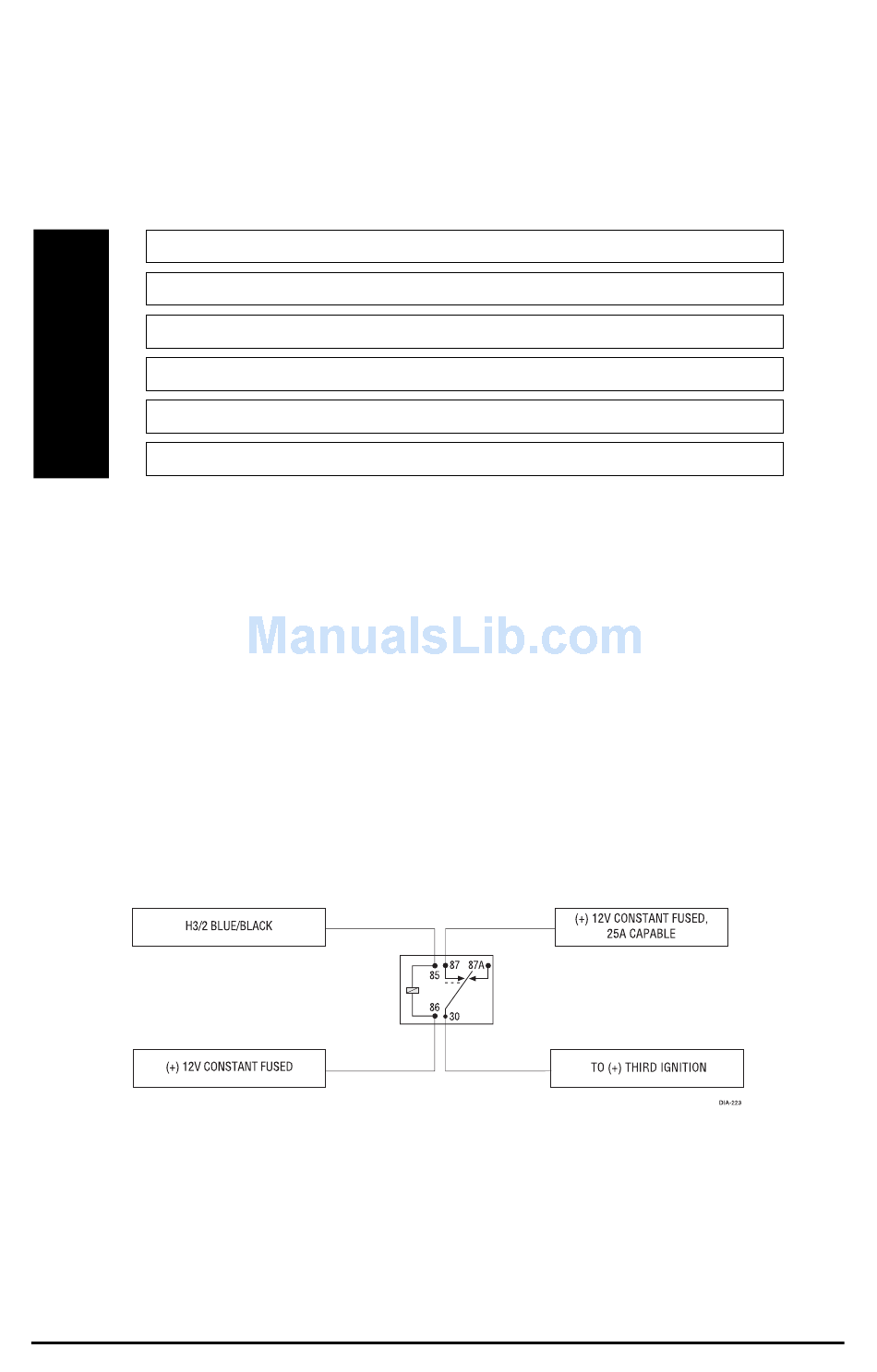

Remote Start Harness (H3) Wiring Diagram

___
BLUE
1
___
BLUE/BLACK
2
___
GRAY
3
___
4 BROWN
___
5 VIOLET/WHITE
___
6 BLACK/WHITE

Remote Start Harness Wire Descriptions

H3/1 BLUE Status/Factory Security Rearm Output
This wire supplies a 200mA output as soon as the module begins the remote start process. The H3/1
BLUE wire can also be used to rearm a factory anti-theft system when the remote start shuts down.
(See the Feature Descriptions section in this guide.)
H3/2 BLUE/BLACK (-) Optional Third Ignition Output
This output provides 200mA as soon as the remote starter is activated. It can be used to power a
relay to energize a positive (+) third ignition as shown below. This output is capable of driving two
relays if necessary.
H3/3 GRAY (-) Hood Pinswitch Input
This wire MUST be connected to hood pinswitch. This input will disable or shut down the remote
start when the hood is opened.
14
(-) Status/Factory Security Rearm Output
(-) 200 mA Optional Third Ignition Output
(-) Hood Pinswitch Shutdown Wire
(-) Brake Switch Shutdown Wire
(-) Neutral Safety Switch Input
Tachometer Input Wire
