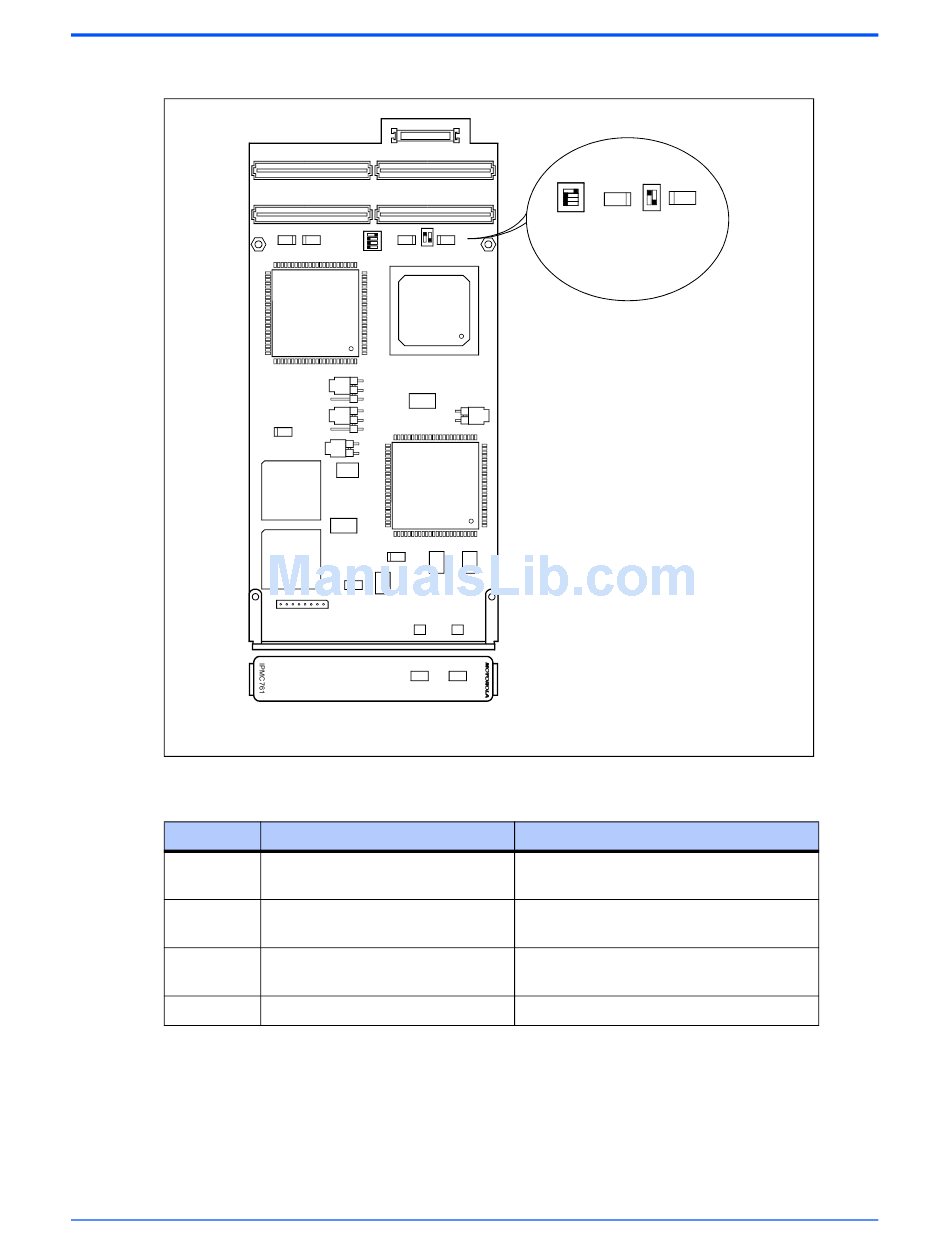

Figure 1-3. IPMC712 with Default Switch Settings

P14
P13
C10
C8
U12
C5
U5
U3
J1

Table 1-2. IPMC712 Jumpers

Jumper Description
J1 Reserved 9PLD programming
header
J2 Port 4 Receive Clock
J3 Port 4 Transmit Clock
J5 Clock Loopback
P15
P12
P11
S1 C7
C9
S2
U11
U7
J3
J2
U6
J4
J5
U15
U19
Y2 Y1
C4
Y3
C2
DS2 DS1
PIB BUSY SCSI BUSY
2843 0905
Setting
N/A
1-2: driven by IPMC712
2-3: received by IPMC712
1-2: driven by IPMC712
2-3: received by IPMC712
MAX207 14/15in connects to R1out
