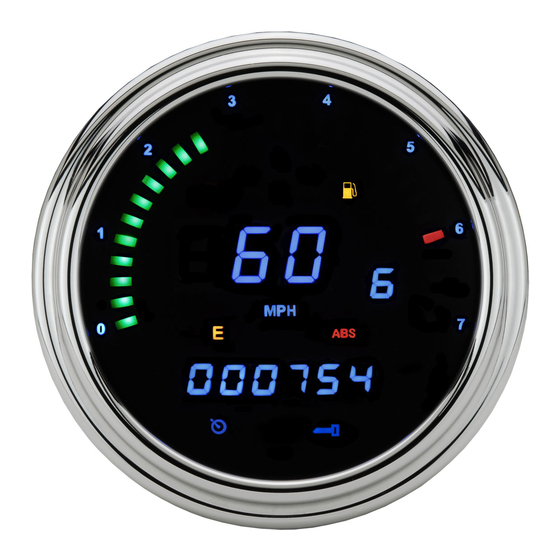

TANK MOUNT SPEEDOMETER/TACHOMETER FOR 5" CAN BUS APPLICATIONS

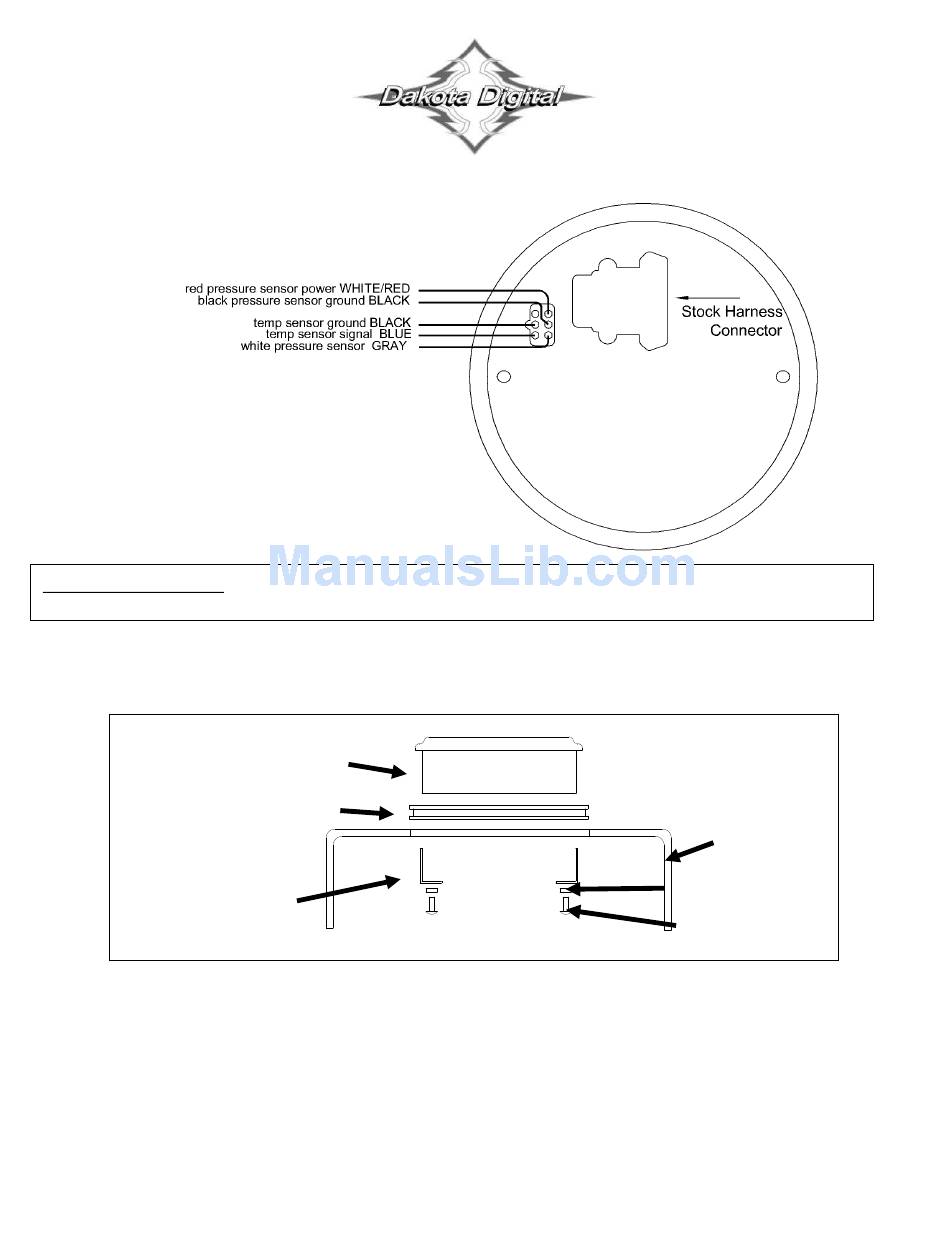

Wiring Diagram
The MCL-2011(-R) gauges will work on
2011 - up Softail models with 5"
gauges and 2012 - up Dyna models
with 5" gauges. It is a direct plug in on
these models and requires no
additional wiring. Auxiliary temp or psi
sensors can be wired to the gauge.
IMPORTANT NOTE!
100 miles (160km) of operation. See "preset odometer" for instructions.
Mounting:
The MCL-2011(-R) is designed to fit in the "Fat Bob" style five-inch diameter dash-mount gauge openings.
L-Bracket (supplied)
MODEL MCL-2011(-R)
This gauge has an odometer preset option that is only available for the first
Dakota Digital Gauge
MCL-2011 (-R)
Factory Gasket
Factory Dash Panel
#8 Lock Washer
8-32 x ½" Screw
MAN# 650369
Advertisement
Related Manuals for Dakota Digital MCL-2011(-R
Summary of Contents for Dakota Digital MCL-2011(-R
- Page 1 This gauge has an odometer preset option that is only available for the first 100 miles (160km) of operation. See “preset odometer” for instructions. Mounting: The MCL-2011(-R) is designed to fit in the “Fat Bob” style five-inch diameter dash-mount gauge openings. Dakota Digital Gauge MCL-2011 (-R) Factory Gasket Factory Dash Panel...
- Page 2 Remove the dash Unclip and unplug the factory gauge Insure that the rubber gasket is still in the dash or remove from factory gauge and place back on dash Insert new gauge from front of dash Plug in and turn on so you can straighten the gauge in the dash Use supplied L-brackets along with the 8-32 screws and lock washers to secure the gauge...
- Page 3 STATUS AND WARNING INDICATORS The high beam, turn signals, low oil, and neutral indicators are powered by the gauge and are activated by the stock wiring harness. Several indicators are supplied on the stock wiring harness. Some of these may not be active on your motorcycle. These include the security (red key km/h symbol), engine (red ‘E’), ABS (red ‘ABS’), low fuel (amber fuel pump symbol), and cruise control (green arrow and circle symbol).
-
Page 4: Speed Calibration
SPEEDOMETER SETUP Press and hold the switch while turning the key on and starting the engine. Once the engine is running, release the switch. Press and release the switch to change the menu selection. dIAG dIAG Diagnostics mode for checking/clearing trouble codes dIAG dIAG Press and release the switch until “dIAG”... -
Page 5: Tachometer Setup
WXarn WXarn The oil pressure can be monitored by connecting a Dakota Digital SEN-1039 300 psi solid state pressure sensor. Press and release the switch until “WXarn ” is displayed, then press and hold the switch until “ - ” is displayed. - Page 6 Press and hold the switch until “ - ” is displayed to select the setting. OFF turns the low fuel function off and disables the low fuel light on the Dakota Digital gauge so it will never turn on. Turning the function on will access the following menus...
- Page 7 RANGE RANGE RANGE RANGE Distance to Empty setup The range reading will initially show the word range until a tank of gas has been driven to allow the gauge to complete its setup based on your driving. Begin with a full tank of gas and do not refill it until it gets below ¼ tank of gas. This can be done on multiple trips as long as no fuel is added before it gets low enough.
- Page 8 TRIP SWITCH The trip switch on the handle bar allows access to all of the mileage, rpm, and performance information. Pressing and releasing the trip switch toggles through the different displays. Press and holding the switch will reset the current display.
-
Page 9: Troubleshooting Guide
Any action for breach of any warranty hereunder, including any implied warranty of merchantability, must be brought within a period of 24 months from date of original purchase. No person or representative is authorized to assume, for Dakota Digital, any liability other than expressed herein in connection with the sale of this product.
