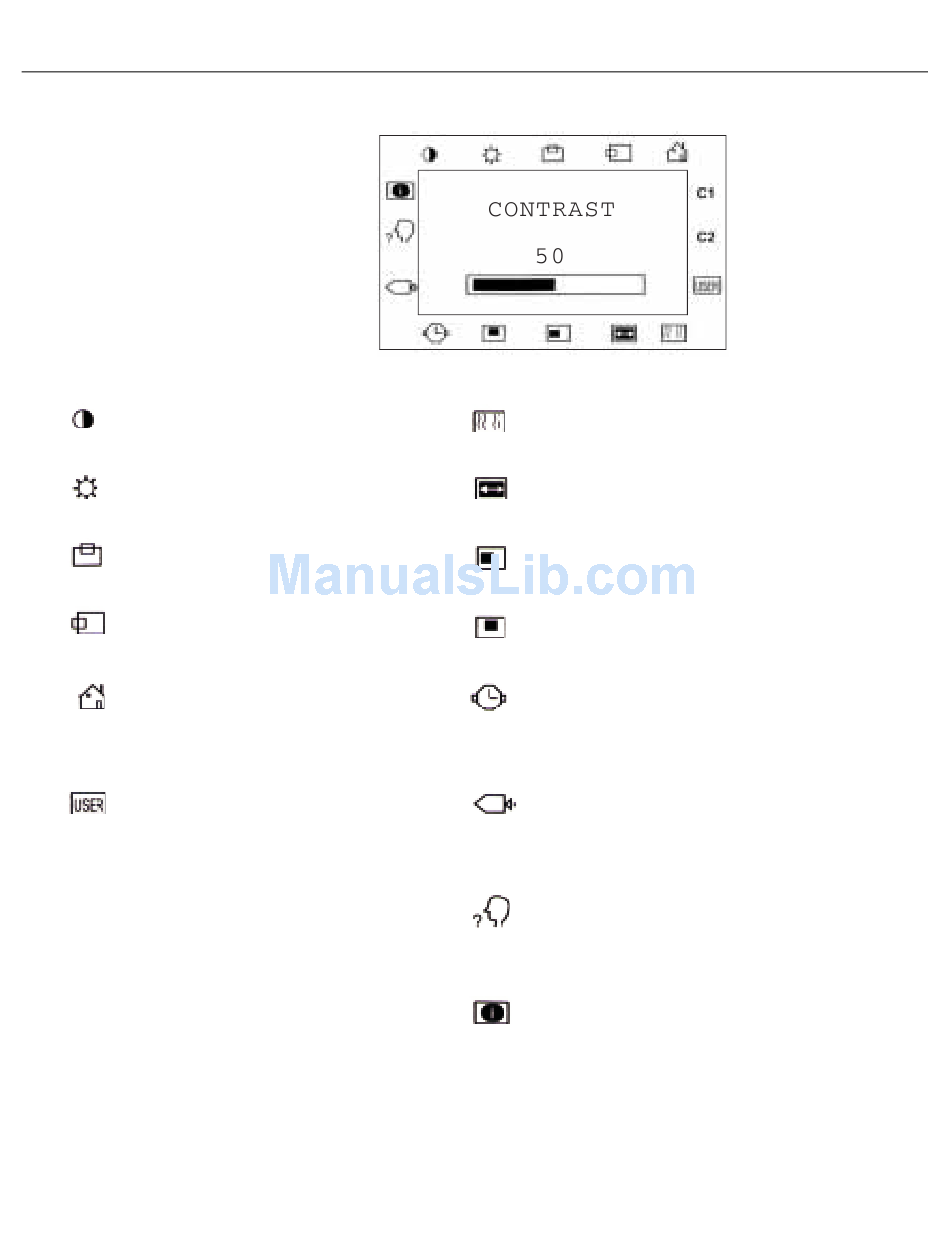

OSD Menu Function

Contrast
Controls the picture contrast
Brightness
Controls the picture brightness
V-Position
Controls the vertical position
H-Position
Controls the horizontal position

Recall Defaults

Recalls factory settings of the image
parameters

C1/C2/USER (Color)

Using these icons, you can select one
of the preset color temperatures
(9300°K or 6500°K). Confirm your
choice by pressing the SELECT
button. If you want to change the color
temperatures individually, select
USER and confirm by pressing the
OSD button SELECT. Now you can
use the OSD dial to toggle between the
settings R, G and B (red, green and
blue foreground). To change a setting,
first press the SELECT button, then
choose the desired value with the OSD
dial. To confirm the setting, press the
SELECT button again.
If you don't need to adjust any further
settings, choose the icon to return to
the OSD main menu.
3-18
E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e
Phase
Controls the vertical fine adjustment
Clock
Controls the horizontal fine adjustment

OSD H-Position

Adjusts the horizontal position of the OSD menu

OSD V-Position

Adjust the vertical position of the OSD menu

OSD Time

Determines how long (in seconds) the OSD
menu waits before closing automatically after no
action has been performed.

Auto Adjust

Automatically selects the optional settings for
image parameters (brightness, contrast, image
position, phase, etc.)

OSD Language

Selection of the OSD menu language: English,
French, Italian, Spanish, Japanese.

Image Information

Displays the current graphics mode.
