Summary of Contents for Elo TouchSystems Entuitive ET1566L-7SWC-1

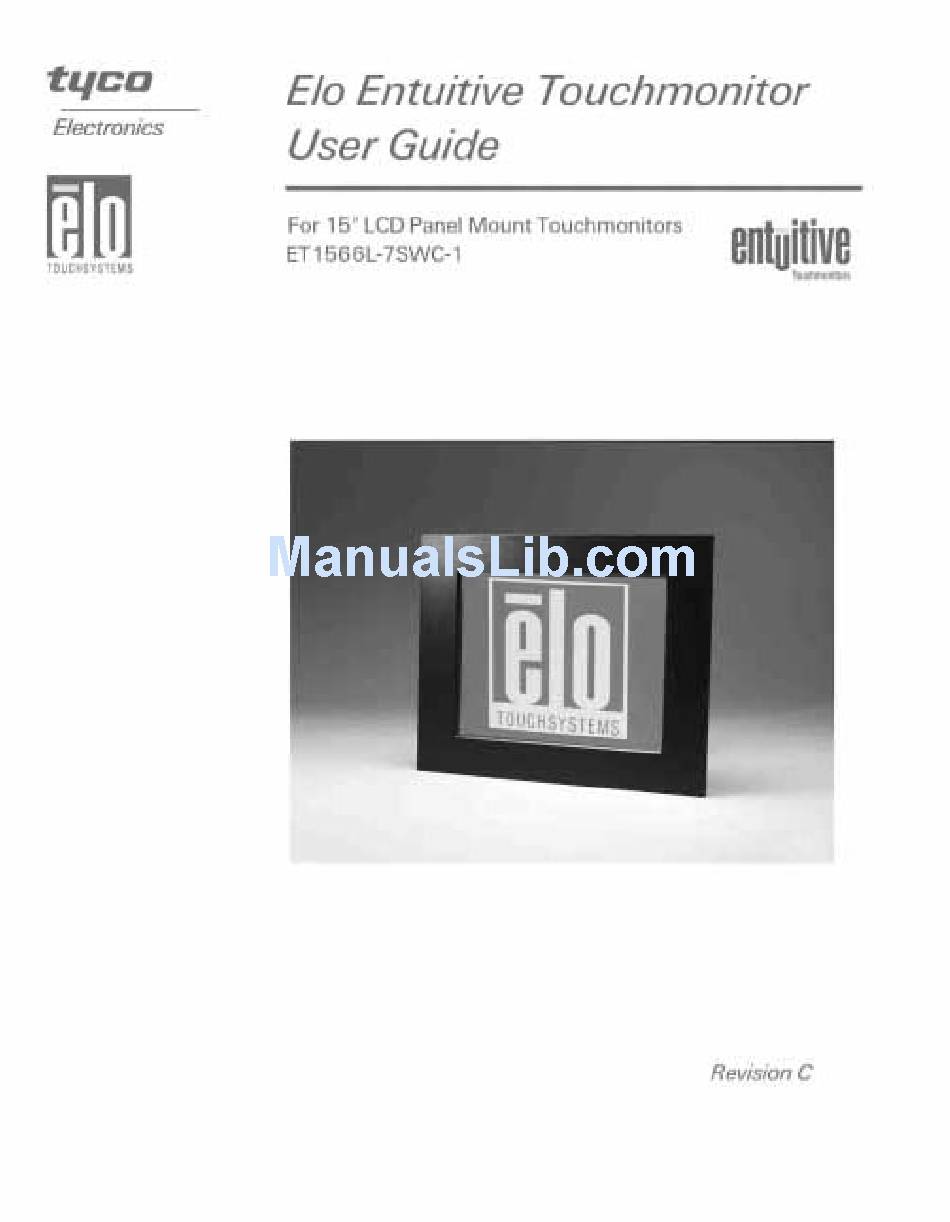

- Page 2 (OR (QWXLWLYH 7RXFKPRQLWRU 8VHU *XLGH /&' 3DQHO 0RXQW 7RXFKPRQLWRU (7/6:& 5HYLVLRQ & 31 (OR 7RXFK6\VWHPV ,QF (/2728&+ ZZZHORWRXFKFRP...
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Introduction Precautions ....1 About the Product ....1 Chapter 2 Installation and Setup Unpacking Your Panel Mount... -
Page 5: Trademark Acknowledgments
Elo TouchSystems. Disclaimer The information in this document is subject to change without notice. Elo TouchSystems makes no representations or warranties with respect to the contents hereof, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. Elo TouchSystems reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Elo TouchSystems to notify any person of such revisions or changes. -
Page 6: Introduction
Congratulations on your purchase of an Elo TouchSystems Entuitive LCD panel mount touchmonitor. Your new high-resolution industrial touchmonitor combines the reliable performance of Elo’s touch technology with the latest advances in LCD display design. This combination of features creates a natural flow of information between you and your touchmonitor. - Page 7 • VESA flat panel monitor physical mounting interface (75mm) • Worldwide agency approvals that include UL*, CUL*, TÜV- Bauart, FCC, CE, C-Tick, VCCI Certified by UL to NEMA 4, 4x and 12: ET1566L-7SWC-1* • Designed to meet NEMA 4, 4x & 12: ET1566L-9SWC-1/5* •...
-
Page 8: Installation And Setup
H A P T E R NSTALLATION AND ETUP HAPTER This chapter discusses how to install your LCD panel mount touchmonitor and how to install Elo TouchSystems driver software. -
Page 9: Unpacking Your Panel Mount Touchmonitor
Unpacking Your Panel Mount Touchmonitor Check that the following 7 items are present and in good condition: /&' 'LVSOD\ 0RQLWRU SRZHU FDEOH 86&DQDGD 4XLFN ,QVWDOODWLRQ *XLGH DQG VRIWZDUH &' E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e 6HULDO WRXFKVFUHHQ FDEOH Software... -
Page 10: Product Overview
Product Overview Main Unit LCD Display Rear View... -
Page 11: Bottom View
Bottom View Customer Panel Remote OSD with Cable Attachment AUTO/SEL DOWN UP MENU E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e... -
Page 12: Mounting Your Touchmonitor
Mounting Your Touchmonitor You will need a 6mm allen socket and torque wrench (Hex) to attach the mounting brackets. Your panel mount touchmonitor comes with 6 mounting brackets (and 6 screws). You will need 6 brackets to mount your touchmonitor. Two brackets attach to the top and bottom and one on each side. -
Page 13: Connecting Your Touchmonitor
Connecting Your Touchmonitor The following illustrations guide you step by step in connecting your touchmonitor. Before connecting the cables to your touchmonitor and PC, be sure that the computer and the touchmonitor are turned off. Power E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e OSD module Female 15-pin connector... - Page 14 STEP 1-Connecting the Video Cable • Connect the 15-pin video cable (the ferrite bead end) to the video port on your PC. • Connect the other end of the video cable to the video connector on your touchmonitor. • Secure the cable to your touchmonitor and PC by turning the screws on the connector clockwise.
- Page 15 STEP 2-Connecting the Serial Touchscreen Cable • Connect the female end of the serial (RS-232) cable to the serial port on the back of your PC. • Connect the male end of the cable to the serial touchscreen connector on your touchmonitor.
-
Page 16: Optimizing The Lcd Display
STEP 3-Connecting the Power Cable Power switch Depending on where you live, you will use either the European or US/Canadian power cable. • Connect the female end of the power cable to the Brick power supply. • Connect the Brick power supply into the power port on the touchmonitor. To protect your equipment against risk of damage from electrical surges in the power line, plug the brick supply’s power cord into a surge protector, and then connect the surge protector to a grounded (three-pronged) AC electrical outlet. -
Page 17: Installing The Driver Software
Installing the Driver Software Elo TouchSystems provides driver software that allows your touchmonitor to work with your computer. Drivers are located on the enclosed CD-ROM for the following operating systems: • Windows XP • Windows 2000 • Windows Me • Windows 98 •... -
Page 18: Installing The Serial Touch Driver For Windows Xp, Windows 2000, Me, 95/98 And Nt
Installing the Serial Touch Driver for Windows XP, Windows 2000 For Windows 2000 and NT 4.0 you must have administrator access rights to install the driver. Insert the Elo CD-ROM in your computer’s CD-ROM drive. If the AutoStart feature for the CD-ROM drive is active, the system automatically detects the CD and starts the setup program. -
Page 19: Installing The Serial Touch Driver For Ms-Dos And Windows 3.1
Installing the Serial Touch Driver for MS-DOS and Windows 3.1 To install the drivers for Windows 3.x and MS-DOS from Windows 95/98, follow these steps: Insert the Elo CD-ROM in your computer’s CD-ROM drive. From DOS, type d:\EloDos_W31 to change to the correct directory on the CD-ROM (your CD-ROM drive may be mapped to a different drive letter). -
Page 20: Operation
About Touchmonitor Adjustments Variations in video output and application will likely require you to adjust your touchmonitor to optimize the quality of the display. For best performance, your monitor should be operating in native resolution; that is, 1024 x 768 at 60-75 MHz. Use the Display control panel in Windows to choose 1024 x 768 resolution. -
Page 21: Connecting The Osd Module
Connecting the OSD Module All adjustments are made by using the remote on-screen display (OSD) module. First, connect the OSD module by inserting the corded end into the OSD module connector in the back of the monitor. OSD module AUTO/SEL DOWN UP MENU 3-16 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e Connections on underside... -
Page 22: Osd Module Controls
OSD Module Controls Control Menu MENU Contrast/ Plus/Clockwise Brightness/Minus/ DOWN Counter-Clockwise Auto/Select AUTO/SEL Power Switch Enable/Disable Function Display Exits the OSD menus. 1. Enter contrast of the OSD 2. Increase value of the adjustment item. 3. Select item clockwise 1. Enter brightness of the OSD 2. -
Page 23: Image Information
OSD Menu Function Contrast Controls the picture contrast Brightness Controls the picture brightness V-Position Controls the vertical position H-Position Controls the horizontal position Recall Defaults Recalls factory settings of the image parameters C1/C2/USER (Color) Using these icons, you can select one of the preset color temperatures (9300°K or 6500°K). -
Page 24: Appendix A
If you are experiencing trouble with your touchmonitor, refer to the following table. If the problem persists, please contact your reseller or our technical support at 1-800-557-1458. Solutions to Common Problems Problem No image appears on screen. Partial image or incorrectly displayed image. - Page 25 Problem Image is unstable and flickering Image is scrolling Touch doesn’t work Remote OSD does not work 4-20 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e Suggestion(s) Use the Tracking function to make an adjustment.
-
Page 26: Appendix A Native Resolution
The native resolution of a monitor is the resolution at which the LCD panel is designed to perform best. In almost all cases, screen images look best when viewed at their native resolution. You can lower the resolution setting of a monitor but not increase it. - Page 27 For example, a SVGA resolution LCD panel displays 800 pixels horizontally and 600 pixels vertically. Input video is also represented by the same terms. XGA input video has a format of 1024 pixels horizontally by 768 pixels vertically. When the input pixels contained in the video input format match the native resolution of the panel, there is a one-to- one correspondence of mapping of input video pixels to LCD pixels.
-
Page 28: Appendix B Touchmonitor Safety
Do not use a damaged power cord. Use only the power cord that comes with your Elo TouchSystems touchmonitor. Use of an unauthorized power cord may invalidate your warranty. -
Page 29: Care And Handling Of Your Touchmonitor
Care and Handling of Your Touchmonitor The following tips will help keep your Elo Entuitive touchmonitor functioning at the optimal level. • To avoid risk of electric shock, do not disassemble the brick supply or display unit cabinet. The unit is not user serviceable. Remember to unplug the display unit from the power outlet before cleaning. -
Page 30: Technical Specifications
Compatibility Modes Your Elo Entuitive touchmonitor is compatible with the following standard video modes. All specifications are typical and subject to change. Mode IBM & VESA VGA IBM & VESA VGA IBM & VESA VGA IBM & VESA VGA IBM & VESA VGA IBM &... -
Page 31: Touchmonitor Specifications
Touchmonitor Specifications 15" LCD Touchmonitor (ET1566L) Specifications Display Type Size Pixel Format Touchscreen Colors Display Brightness Back-light Lamp Life Viewing Angle Contrast Ratio Display Response Time Environmental Mechanical Materials Electrical Agencies * ITE Recogniz Component C-26 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e Active matrix, thin film transistor (TFT), liquid crystal display... -
Page 32: Accutouch Touchscreen Specifications
AccuTouch Touchscreen Specifications Mechanical Positional Accuracy Standard deviation of error is less than 0.080 in. (2.03 mm). Equates to less than ±1%. Touchpoint Density More than 100,000 touchpoints/in Touch Activation Force Typically less than 4 ounces (113 grams). Surface Durability Surface durability is that of glass, Mohs’... -
Page 33: 15" Lcd Panel Mount Touchmonitor (Et1566L-7Swc-1) Dimensions
15" LCD Panel Mount Touchmonitor (ET1566L-7SWC-1) Dimensions For cutout dimensions, see page 30. Customer Panel C-28 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e... - Page 34 Customer Panel 12.7mm Dimensions in millimeters (inches) C-29...
-
Page 35: Panel Cutout
Panel Cutout Maximum panel thickness 13mm (0.5") C-30 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e... -
Page 36: Regulatory Information
EGULATORY HAPTER I. Electrical Safety Information: A) Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. - Page 37 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e This equipment has been tested to the requirements for the CE Mark as required by EMC Directive 89/336/EEC indicated in European Standard EN 55 022 Class B and the Low Voltage Directive 73/23/EEC as indicated in European Standard EN 60 950.
- Page 38 N10051...
- Page 39 E l o E n t u i t i v e T o u c h m o n i t o r U s e r G u i d e...
-
Page 40: Warranty
ARRANTY HAPTER Except as otherwise stated herein or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. With the exception of negotiated warranty periods; the warranty for the touchmonitor and components of the product is 3 years. Seller makes no warranty regarding the model life of components. - Page 41 THESE REMEDIES SHALL BE THE BUYER’S EXCLUSIVE REMEDIES FOR BREACH OF WARRANTY. EXCEPT FOR THE EXPRESS WARRANTY SET FORTH ABOVE, SELLER GRANTS NO OTHER WARRANTIES, EXPRESS OR IMPLIED BY STATUTE OR OTHERWISE, REGARDING THE PRODUCTS, THEIR FITNESS FOR ANY PURPOSE, THEIR QUALITY, THEIR MERCHANTABILITY, THEIR NONINFRINGEMENT, OR OTHERWISE.
-
Page 42: Regulatory Information
Numerics 15” LCD Panel Mount Touchmonitor (ET1566L-7SWC-1) Dimensions, 28 15” LCD Touchmonitor (ET1566) Specifications, 26 About the Product, 1 About Touchmonitor Adjustments, 15 AccuTouch Touchmonitor Specifications, 27 Auto Adjust, 18 Bottom View, 6 Brightness, 18 C1/C2/USER (Color), 18 Care and Handling of Your Touchmonitor, 24... - Page 43 Windows 3.1, 14 Warranty, 35 I n d e x - 3 8...
