Upgrading The Computer
6

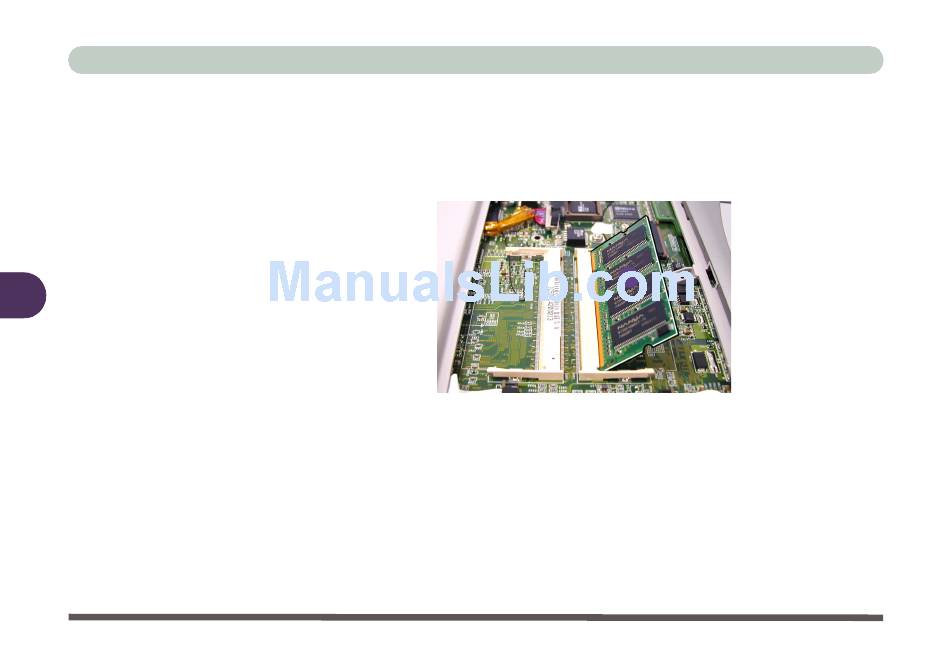

Figure 6 - 9
Memory Removal
6 - 14 Upgrading The System Memory
8. The module "1" (Figure 6 - 9) will pop-up, and you can remove
it.
9. Insert a new module holding it at about a 30° angle and fit the
connectors firmly into the memory slot.
10. The module will only fit one way as defined by its pin alignment.
Make sure the module is seated as far into the slot as it will go.
DO NOT FORCE IT; it should fit without much pressure.
11. Press the module down towards the mainboard until the slot
levers click into place to secure the module.
1
