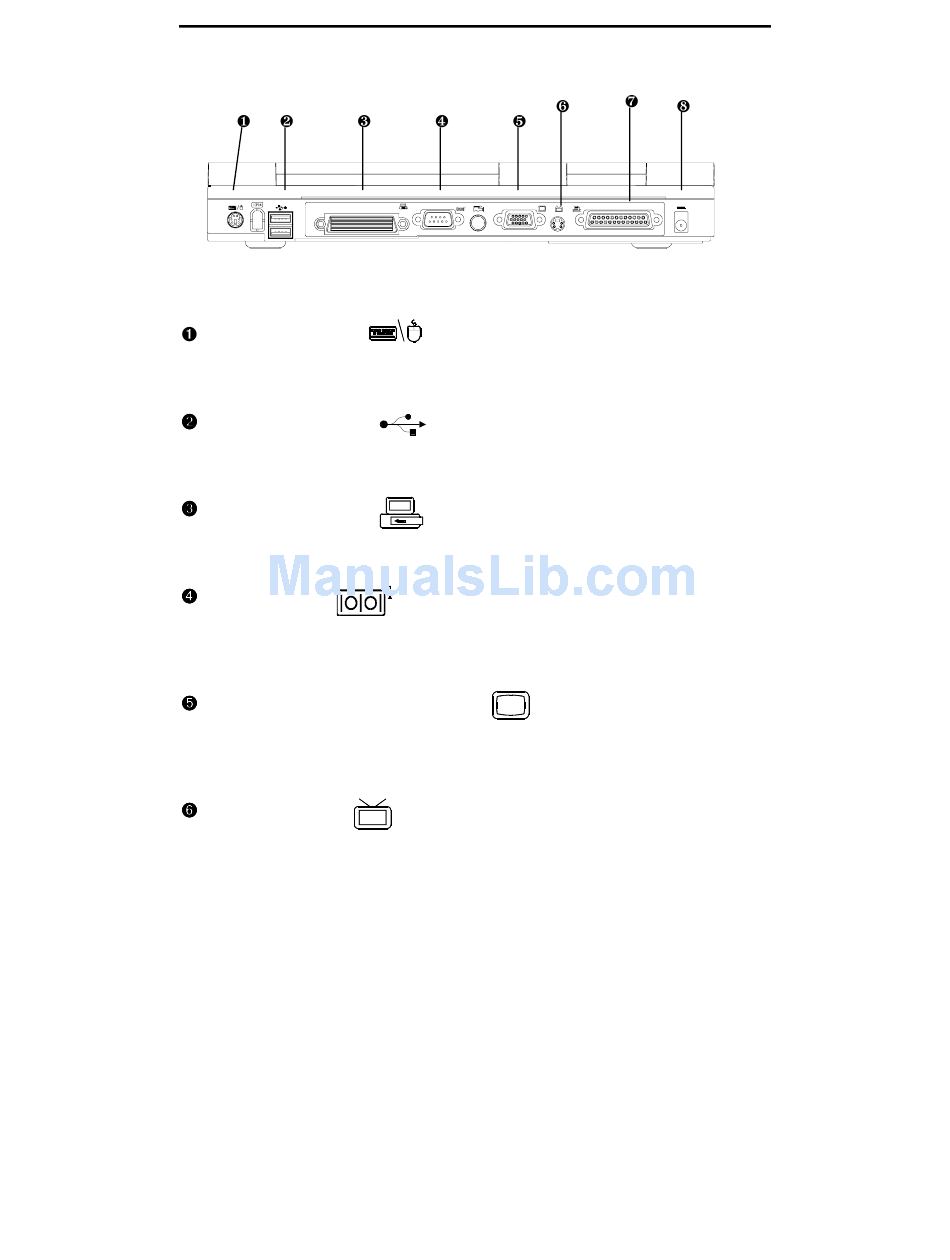

Rear View
PS/2 Type Ports
The PS/2 Type Port uses 6-pin connector for connecting an external PS/2
type mouse or keyboard.
Dual USB Ports
The dual Universal Serial Bus (USB) ports simplify the expansion
capability for peripheral devices. You can optionally connect the USB
Expansion Port
The Expansion port uses a 120-pin Docking connector for connecting a
Port Replicator.
Serial Port
The RS-232C serial port uses a 9-pin male connector for connecting an external
serial mouse, serial printer or fax/modem.
devices such as a mouse, keyboard or monitor to the DeskNote.
External Monitor (CRT) Port
The External Monitor uses a 15-pin connector for connecting an external CRT
monitor. Simultaneous display in LCD screen and external CRT monitor is
available.
S-video Jack
Use this jack to transmit video signal to a TV set. You may need to select the
video standard (NTSC/PAL/NTSC-Japan) for video display (please refer to
Chapter 3, Components Menu for more information).
Chapter 1—Getting Started 1-8
Figure 1-6
