Globalsat TR-151A User Manual

Vehicle/asset tracker
Hide thumbs Also See for TR-151A:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

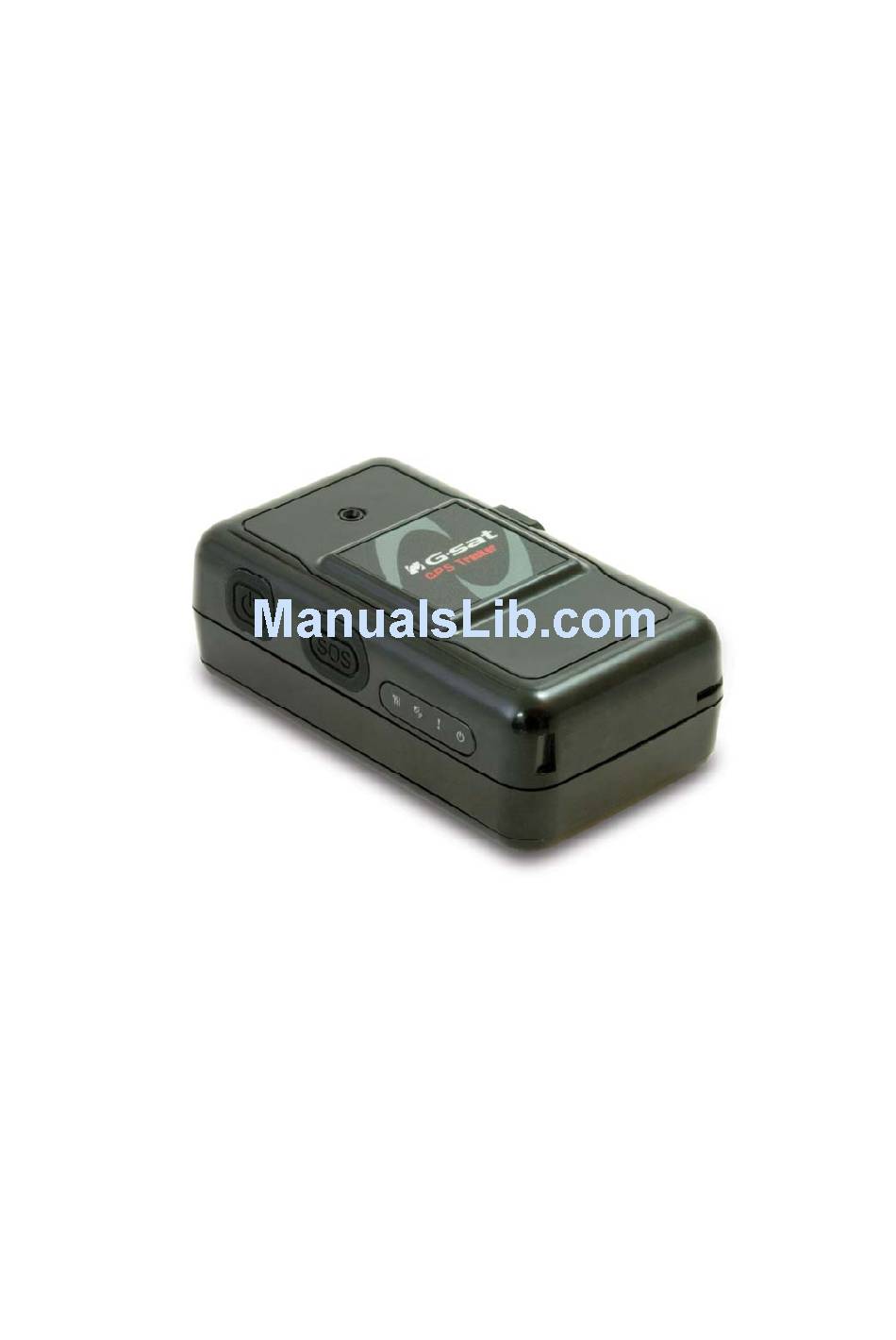

TR-151A / TR-151E
Vehicle/Asset Tracker

User Manual

1.0.0
Version

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR-151A and is the answer not in the manual?

Questions and answers

Related Manuals for Globalsat TR-151A

Summary of Contents for Globalsat TR-151A

  • Page 1: User Manual

    TR-151A / TR-151E Vehicle/Asset Tracker User Manual 1.0.0 Version...

  • Page 2: Table Of Contents

    Table of Content 1. Introduction and Features....................4 1.1 Introduction ......................4 1.2 Features .........................4 1.3 Hardware........................5 2. Start-up.......................... 6 2.1 Accessories ......................6 2.2 Install SIM card and Battery ..................7 2.3 Charging the battery ....................10 2.4 TR-151 with magnetic holder ................... 11 2.5 Turn on/off the device.....................
  • Page 3 4.6 Using Google Map ....................77 4.6.1 Google map data ..................78 4.6.2 Google map operation ................... 80 5. Operating the TR-151 ....................81 5.1 How to set SOS number of TR-151 by SMS?............... 81 5.2 How to set TR-151 to immediately report its position by SMS?........82 5.3 How to set TR-151 to periodically report its position by SMS? ........

  • Page 4: Introduction And Features

    1. Introduction and Features 1.1 Introduction TR-151 is a durable and water resistant GPS/GSM/GPRS tracker. Users can install TR-151 on vehicles or assets for tracking. It can send out SMS with its location (longitude and latitude) to user’s cell phone by GSM network or to personal computer by internet connection of GPRS network.

  • Page 5: Hardware

    1.3 Hardware TR-151A: Siemens GSM 850/1800/1900 GSM module: TR-151E: Siemens GSM 900/1800/1900 -20° to 55° C Operating temperature: GPS patch antenna Antenna Type: 86.7*48.9*32.5 mm Dimension: 2100mA rechargeable Li-ion battery Battery: For Charging, GPS, GSM and Status. LED indicator: Mini USB port for connecting to PC Interface: Water resistant (IPX4) Casing:...

  • Page 6: Start-Up

    2. Start-up 2.1 Accessories AC charger TR-151 USB Cable Battery Mounting bracket with magnet (optional) TR-151 page 6...

  • Page 7: Install Sim Card And Battery

    2.2 Install SIM card and Battery Use a coin or screwdriver to loosen the screw on back cover. Lift up the back cover and remove it as the direction shown. TR-151 page 7...
  • Page 8 Push forward the cover of SIM card slot to the position marked with “OPEN”. Then lift up the cover. Insert the SIM card with its metal contacts facing down and the cut corner at the top left. Plug the battery connector into socket. Be aware that the red wire must be plugged on the top side.
  • Page 9 Please put the connector wire under the battery, and then put the battery into battery compartment. NOTE: After installing the battery, the status LED will emit red light. After the LED go out, please wait for 5 seconds before turning on the power. NOTE: Please take out the battery if you do not use TR-151 for a long time.

  • Page 10: Charging The Battery

    2.3 Charging the battery Before using TR-151 for the first time, please fully charge it by connecting to AC power adapter under the power-off condition. (The attached battery is specially designed for TR-151. Please do not use other type of battery; otherwise it will damage the device. If you need to change the battery of TR-151, please contact your local dealer.) You can also charge the TR-151 by connect it to PC or Notebook via USB cable.

  • Page 11: With Magnetic Holder

    2.4 TR-151 with magnetic holder Insert the TR-151 with the Power button side facing out. Push TR-151 into the holder until it clicks in position. TR-151 page 11...
  • Page 12 There are 4 circular magnets on back of the magnetic holder for attaching TR-151 onto the metal material of vehicle or machine. To remove TR-151, slightly push outward the two sides of holder, and slide out the TR-151. TR-151 page 12...

  • Page 13: Turn On/Off The Device

    2.5 Turn on/off the device ● Turn on: After installing the battery, the status LED will emit red light. After the LED go out, please wait for 5 seconds before turning on the power. Press the power button for 3~4 seconds.
  • Page 14 Power button 1. Power On: Press and hold the power button for 3-4 seconds. The status LED will flash 2 times 2. Power Off: Press and hold the power button for 3-4 seconds. The status LED will flash 1 time. 3.
  • Page 15 USB connector There are two functions of the USB connector: Connect TR-151 to PC by a Mini USB cable and setup all its features and functions from application software through PC. Charge the battery by connecting a USB cable. Microphone For voice monitoring use.

  • Page 16: Dip Switch

    2.7 DIP switch Enable TR-151 to automatically power Users have to press the power button Switch 1 on when it is connected to external to power on TR-151 whether external power. power is connected or not. All LED works as user mode. Make all LED except status LED go off Switch 2 for secret tracking.

  • Page 17: Management Setting

    3. TR-151 Management Setting 3.1 Install the USB driver Insert the Driver CD into your CD-ROM driver. AutoRun installation window will appear. Click “Install USB Driver” button to install the USB driver. You will see two folders. If your Windows is Vista version, please double click to open “PL2303_USB_Driver_for_Windows_Vista”...

  • Page 18: Install, Update, Uninstall The Tr Management Center Program

    3.2 Install, Update, Uninstall the TR Management Center program 3.2.1 Install TR Management Center Step 1: Click “English PC Software” button to install the TR Management Center program. TR-151 page 18...
  • Page 19 Step 2: Click “Next” Step 3: Click "Install" TR-151 page 19...
  • Page 20 Step 4: Wait for the program to install Step 5: Click "Finish" when installation is finished TR-151 page 20...
  • Page 21 3.2.2 Update TR Management Center If you download a new version of the TR Management Center software from the Globalsat website, you could install the downloaded software to upgrade the TR Management center without un-installing the previous version of TR Management center.
  • Page 22 Step 3: Begin to install the upgraded version of TR Management center. Click “Next” Step 4: Click "Finish" TR-151 page 22...
  • Page 23 3.2.3 Uninstall TR Management Center Step 1: Run "Start" -> "Globalsat" -> "TR Management Center" -> "Uninstall TR Management Center" Press “Yes” Step 2: Preparing to remove program Step 3: Uninstall in progress. Close window when finished TR-151 page 23...

  • Page 24: Tr Management Center Screen Introduction

    3.3 TR Management Center Screen Introduction Menu Google Map Query Tool Data Output Area GPRS Tool TR Management Center Main Screen TR-151 page 24...
  • Page 25 There are five parts of TR Management Center Screen as below. Menu: The basic menu options Shows the trackers' connection status, GPRS service status and the GPRS Tools: tracker's latest location Query Tool: Used for searching history data and finding coordinates Data Output Area: Shows the tracker login status, received GPRS data and query results Google Map: Shows the Google Map The detailed description of each part is as following.

  • Page 26: Tracker And Gprs Tool Bar

    3.3.1 Tracker and GPRS Tool Bar GPRS tool is for managing trackers and showing the GPRS server status Trackers List Show tracker trace on Google Map display Skype Messaging Status GPRS Service Status Latest Tracker’s Location Data TR-151 page 26...

  • Page 27: Query Tool

    3.3.2 Query Tool Query tool is for looking up for the history data and coordinate. Find history data Data Tool buttons Coordinate Location Tool TR-151 page 27...

  • Page 28: Data Output Area

    3.3.3 Data Output Area Data output area is for displaying the GPRS data, GPRS log, and query result. The Output area is divided into GPRS Data, GPRS Log and Query Result GPRS Data: Shows the data sent from connected trackers. Only the last 100 entries from each tracker are shown.

  • Page 29: Skype Setup

    3.4 Skype Setup In stead of sending SMS to trackers by mobile phones, TR Management Center sends SMS to trackers by Skype. You can not only send SMS to trackers for asking report by Skype, but send SMS to set the parameters of TR-151’s function. In order to send SMS by Skype, please complete the following steps to activate the SMS function of Skype.
  • Page 30 Step 4: Test the Skype SMS function After completing the above process, please check if Skype's SMS functions can work by sending a test message to mobile phone. Follow the SMS messaging procedure below to send a SMS message and check that your Skype is working normally. Sending a test SMS From the Skype menu, select "Tools"...
  • Page 31 At the Send SMS interface, add the recipient's mobile phone number Write the content of SMS and click Send SMS button TR-151 page 31...
  • Page 32 Step 5: When you launch the TR Management Center program, the following security verification pop-up window will appear in the lower right corner of the screen asking you to allow the TR Management Center to use Skype functions. Click the blue text to request Skype access. Select "Allow this program to use Skype"...
  • Page 33 If you accidentally select "Do not allow this program to use Skype", please change this from within the Skype program at "Options -> "Advanced" Note: The exact procedure may vary from the version of Skype. Please refer to the Skype manual for more information.
  • Page 34 If the TR Management Center is not allowed to use Skype, please click on the "Change" button and select "Allow this program to use Skype". TR-151 page 34...

  • Page 35: Firewall Setting

    3.5 Firewall Setting The TR Management Center sends data via GPRS network, so the firewall must be configured to allow external access. When you launch the GPRS service, a Windows Security Alert window will appear. Click on the "Unblock" button to let the TR Management Center to use the network.

  • Page 36: Tr Management Center System Requirement

    3.6 TR Management Center System Requirement The computer system requirements of the TR Management Center program: 1. The computer must be equipped with at least an Intel Pentium 4 or equivalent AMD CPU, 256MB of RAM and a network card. 2.

  • Page 37: Management Operation

    4. TR-151 Management Operation 4.1 TR Management Center Basic Setup Before operating the TR Management Center, please set the operation parameters of the TR Management Center in the Basic Setup. It will make the afterward operation work properly. Basic Setup Basic Setup Interface TR-151 page 37...

  • Page 38: Tracker Management

    Item Function Description Map Source Choose to use Google Map or Google China Map TCP Port Set the communication The default is 5000. You can set port for connecting GPRS form1024~5000. network Auto start GPRS Choose to automatically service start GPRS service or not Time Zone Set the time zone SMS Return...

  • Page 39: Adding And Setting A Tr-151 Tracker

    4.2.1 Adding and setting a TR-151 tracker You can add a new tracker by making TR-151 Setup, please follow the steps below. Step 1: Connect the TR-151 to the computer's USB port by the USB cable. Step 2: Open the battery cover and adjust DIP Switch 3 to "On". Step 3: Turn on the TR-151.
  • Page 40 Click on Scan COM Port to find the port the TR-151 is connected to Note: If the scan fails to locate TR-151, please try again with the other USB port. Note: If your SIM card asks for SIM PIN entry, a window will appear prompting you for the PIN password.
  • Page 41 4.2.1.1 TR-151 Basic setup TR-151 Basic setup Tracker Information: TR-151's Basic Information: Item Description Version of TR-151 firmware. Firmware Version International Mobile Equipment Identity IMEI Code On: SMS sent from TR-151 will be converted to local time. Off: SMS Set Time Zone sent from TR-151 will include the Coordinated Universal Time (UTC).
  • Page 42 If user leaves “Return Phone Number” blank in the tracking commands, TR-151 will send SMS back to “SMS Default Return Phone Number”. If “Return Phone Number” and “SMS Default Return Phone Number” are both blank, TR-151 will send report back to caller ID. Maximum GPS fixing time: Item Description...
  • Page 43 4.2.1.2 Parking and sleeping mode setup Item Description Default Remarks Activation time Set how long TR-151 will enter Parking 30 seconds Can be set from mode after pressing the power button. 1~300 seconds Interval time The interval of sending SMS when 30 seconds TR-151 senses vibration under parking mode...
  • Page 44 TR-151 will temporarily exit from sleeping mode Alarm report The interval of sending SMS when 30 seconds Can be set from interval TR-151 senses vibration under sleeping 5~86,400 seconds mode Report Set how many SMS will be sent when 0 indicates report numbers TR-151 senses vibration under sleeping continuously...
  • Page 45 Item Description Remarks GPRS Port The communication port for Default is 5000 connecting to GPRS network Can be set from 5000~9999 GPRS APN The name of your GPRS The APN depends on the SIM card service provider's access point for the telecommunication service provider used by your TR-151 (The list below is for service providers in Taiwan.

  • Page 46: Tracker Management

    4.2.2 Tracker Management Tracker Management is used to manage registered or previously configured trackers. In Tracker Management, you can edit or delete trackers. You can find Tracker Management from the Menu "Management" -> "Tracker Management". The Tracker Management option under Management in Menu Tracker Management interface TR-151 page 46...

  • Page 47: Deleting A Tr-151 Tracker

    4.2.2 Deleting a TR-151 tracker There are two ways for deleting TR-151 trackers in the TR Management Center 1. Select "Management" -> "Tracker Management" from menu bar. Choose the TR-151 you want to delete, and then click on the "Delete" button. 2.

  • Page 48: Editing A Tr-151 Tracker

    A confirmation window will appear when deleting a tracker Note: Deleting a tracker does not actually delete its history data from the database. To delete all history data, please use the editing features in Microsoft Access. 4.2.2 Editing a TR-151 tracker If you want to change the information of TR-151 tracker, you can edit the information by “Edit tracker”...
  • Page 49 The other way of bringing “Edit tracker” is selecting a tracker from the Trackers List and right clicking the mouse button to bring the tracker menu. Click on Edit Tracker Edit Tracker window After editing the information, click OK to save the setting. TR-151 page 49...

  • Page 50: Selecting Country/ Area Code

    4.2.5 Selecting Country/ Area code It requires adding country code/Area code prior to the phone number while sending SMS by Skype to TR151 or sending SMS to TR-151 by mobile phone when you and TR-151 are in the different country or area. Please click the button beside the phone number in the window of “Edit tracker”...

  • Page 51: Instruction Of Using Tr Management Center

    4.3 Instruction of using TR Management Center 4.3.1 Instruction for Beginners If it is the first time for you to use TR-151, please refer 4.2.1 Adding and setting TR-151 trackers to set TR-151. It will ensure TR-151 can send the report to TR Management center via GPRS network and display the location on the map.

  • Page 52: Receiving Data From Tr-151 Via Gprs Network

    4.3.2 Receiving data from TR-151 via GPRS network In order to receive report from TR-151 by TR Management Center, there is some setting should be made. Step 1: Activate GPRS service Please set the GPRS port. (You can refer to 4.2.1.3 to set GPRS port.) After setting GPRS port, please activate GPRS server To activate the GPRS service, please click the "Start"...
  • Page 53 TR-151 will send a SMS with the content of OK to mobile phone and send the position report to TR Management center shown as the picture below. You can make the location of that position report to show on Google map by clicking that report. You can also click Satellite to see the location on satellite map.

  • Page 54: Send Gprs Command To Tr-151

    Step 4: Send commands to TR-151 for asking report via GPRS network Select a connected TR-151 and right click the mouse to bring up the option menu. You can click “Send GPRS Command” to ask TR-151 to send position report to TR Management center. Below please find the description of the option menu Item Description...
  • Page 55 After clicking Send GPRS Command, the window for selecting commands will be brought as below. Item Description GPRS Immediate Report Ask the connected TR-151 to report its latest position immediately. GPRS Period Report Ask the connected TR-151 to report according to the Report interval periodically Stop Report Ask the connected TR-151 to disconnect from...

  • Page 56: Tr Management Center Data Query

    4.4 TR Management Center Data Query All the data sent from TR-151 will be stored in the database of TR Management center. You can make this data show on Google map or export them into KML format. 4.4.1 Look up for history data You can look up for the history data that TR-151 sent to TR Management center by Query Tool.
  • Page 57 After specifying all the queried conditions, click the Find button and the query results will be shown on the Data Output Area.. Query Result list The results will also be shown on the Google Map. Query results displayed on the Google Map TR-151 page 57...

  • Page 58: Export The Data Into Kml Format

    If you select a piece of result under the Data Output Area, its location and corresponding details will be shown on the Google Map. If you click on one of the tracker icon on the Google map, the selected tracker’s data under Data Output Area will be highlighted.

  • Page 59: Delete The History Data In The Database

    Enter a name for the exported KML file 4.4.3 Delete the history data in the database You can delete the history data in the database. Step 1: Select the name of the tracker and time interval whose data you’d like to delete. Step 2: Click the Delete button.

  • Page 60: Send Sms By Skype To Set Tr-151

    4.5 Send SMS by Skype to set TR-151 4.2.1 Adding and setting a TR-151, you can connect TR-151 with TR Management center by the USB cable to set its parameters. You can also set its parameters by SMS via the Skype software in the TR Management center.
  • Page 61 4.5.1.1 Set TR-151 to send Geo-fence location report to mobile phone Step1: Select the tracker requires Geo-fence setting from Tracker List. Step 2: Right click the tracker and select Setup Tracker (Skype) SMS Geo-fence Setup Step 3: Enter and select the parameters of Geo-fence SMS on the window of SMS Geo-fence setup.
  • Page 62 You can refer to the table below for the meaning of the Geo-fence parameters. Item Description Geofence Type Choose to set a rectangular (Rectangle) or a circular (Circle) area Alarm Type Choose to send location report when TR-151 gets in (In Geofence) or get out (Out Geofence) the area Report interval The interval of sending location report when TR-151 disobey...
  • Page 63 A dialog window for informing that Skype has sent out the SMS will appear. You can operate the other functions during the process of sending SMS. NOTE: In addition to enter the coordinates to set the Geo-fence, you can also draw a rectangular or circular area on the Google map to set the Geo-fence.
  • Page 64 Loads the coordinates into the coordinate fields Draw a circular area on the Google map to set Geo-fence: Step 1: Select Circle in the field of Geo-fence type. Step 2: Click the Add from Google Map button Step 3: Left click on one point of the Google map as the central point of the circle. A balloon icon will appear.
  • Page 65 Clicking on the center and moving the cursor will make a line appear The system loads the center coordinates and radius into the coordinate fields TR-151 page 65...
  • Page 66 4.5.1.2 Set TR-151 to send Geo-fence location report to TR Management center Step1: Select the tracker requires Geo-fence setting from Tracker List. Step 2: Right click the tracker and select Setup Tracker (Skype) GPRS Geo-fence Setup Step 3: Enter and select the parameters of Geo-fence GPRS on the window of GPRS Geo-fence setup.
  • Page 67 Step 4: Click OK to send out the setting of Geo-fence to the TR-151 BY Skype’s SMS. You can refer to 4.5.1.1 to set the coordinates of Geo-fence by drawing rectangles or circles on the Google map. TR-151 page 67...

  • Page 68: Set The Sms Default Return Phone Number

    4.5.2 Set the SMS default return phone number You can enable or disable the SMS default return phone number and assign the phone number as the default for receiving return SMS. Step 1: Select the TR-151 and right click to select Setup Tracker (Skype) SMS Return Number Setting.

  • Page 69: Set The Maximum Gps Fixing Time

    4.5.3 Set the Maximum GPS Fixing Time You can set a period of time for TR-151 to get fixed of the location. When TR-151 cannot get fixed of the location within the period, TR-151 will send out the last location report. Step 1: Select the TR-151 and right click to select Setup Tracker (Skype) Maximum GPS fixing time...

  • Page 70: Set Default Report Mode

    4.5.4 Set default report mode You can set the default report mode for TR-151. When TR-151 is powered on, it will enter the default report mode. Step 1: Select the TR-151 and right click to select Setup Tracker (Skype) Default Report Mode Setting Default report mode menu Step 2: Select the default report mode, report format, and enter the concerning parameters.
  • Page 71 report mode Report interval Enter the interval between 2 reports Number of reports Enter how many reports will be sent out in the default report mode Step 3: Click OK button to send out the setting by Skype’s SMS. TR-151 page 71...

  • Page 72: Set Sos Phone Number

    4.5.5 Set SOS phone number You can set the phone number for receiving emergency report after SOS button is pressed. Step 1: the TR-151 and right click to select Setup Tracker (Skype) SOS Number Setting Step 2: Enter the phone number for receiving emergency report after SOS button is pressed. Step 3: Click OK button to send out the setting by Skype’s SMS.

  • Page 73: Set The Parking Mode's Parameters

    4.5.6 Set the Parking Mode’s parameters When TR-151 is under Parking Mode, it will turn off the GPS module and turn on motion sensor. It can still receive SMS. When TR-151 senses vibration over the value of sensitivity under parking mode, it will send out location SMS. You have to press the power button when TR-151 is powered on to make TR-151 enter parking mode.

  • Page 74: Set The Sleeping Mode's Parameters

    NOTE: If you enter 0 in the field of Number of reports, TR-151 will not stop sending the report until TR-151 does not sense the vibration. The Sensitivity is that while TR-151 senses the vibration over the sensitivity, it will send out the position report.

  • Page 75: Set The Gprs Parameters

    Step 3: Click OK button to send out the setting by Skype’s SMS NOTE: If you enter 0 in the field of Number of reports, TR-151 will not stop sending the report until TR-151 does not sense the vibration. The Sensitivity is that while TR-151 senses the vibration over the sensitivity, it will send out the position report.
  • Page 76 Step 2: Enter the parameters on the window of GPRS setting. You can refer to 4.2.1.3 TR-151 GPRS setting to enter the parameters Step 3: Click OK button to send out the setting by Skype’s SMS TR-151 page 76...

  • Page 77: Using Google Map

    4.6 Using Google Map Google Map is an online map developed by Google Inc. It offers access to major maps of the world and is constantly updated. As Google Map is integrated into TR Management center, TR Management center can work under Internet connected status.

  • Page 78: Google Map Data

    4.6.1 Google map data Google Map includes the basic map, satellite map, hybrid map and other map data. You can switch the map by the buttons on the upper right corner of Google map. Basic Map TR-151 page 78...
  • Page 79 Satellite Map Hybrid Map TR-151 page 79...

  • Page 80: Google Map Operation

    4.6.2 Google map operation Move the map: You can move the map by right clicking and dragging the map. Or you can move the map by the tool on the Google map. Zoom the map: You can zoom in or zoom out the map by scrolling forward or backward the mouse.

  • Page 81: Operating The Tr-151

    5. Operating the TR-151 5.1 How to set SOS number of TR-151 by SMS? Users can set SOS number of TR-151 by sending SMS via mobile phone or by TR Management’s Skype (Please refer to 4.5.5 Set SOS phone number). The format of SMS by mobile phone is following as: ?7,IMEI,4,SOS1,SOS2,SOS3,Return_Phone_Number! The table below explains the content of the SMS.

  • Page 82: How To Set Tr-151 To Immediately Report Its Position By Sms

    5.2 How to set TR-151 to immediately report its position by SMS? Users can send an SMS by mobile phone or by TR Management center’s Skype to ask TR-151 to immediately report its position. The format of SMS by mobile phone is following as: ?0,IMEI,Report_Format,Return_Phone_Number! The table below explains the content of the SMS.

  • Page 83: How To Set Tr-151 To Periodically Report Its Position By Sms

    5.3 How to set TR-151 to periodically report its position by SMS? Users can send an SMS by mobile phone or by TR Management center’s Skype to ask TR-151 to periodically report its position. The format of SMS by mobile phone is as below. ?1,IMEI,Report_Interval,Number_of_Reports,Report_Format,Return_Phone_Number! The table below explains the content of the SMS.

  • Page 84: How To Set Tr-151 To Immediately Make Report Its Position Via Gprs Network

    5.4 How to set TR-151 to immediately make report its position via GPRS network? Users can send an SMS by mobile phone or by TR Management center’s Skype ( to ask TR-151 to immediately report its position via GPRS network to TR-151 Management center or GPRS server.

  • Page 85: How To Set Tr-151 To Periodically Report Its Position Via Gprs Network

    5.5 How to set TR-151 to periodically report its position via GPRS network? Users can send an SMS by mobile phone or by TR Management center’s Skype to ask TR-151 to periodically report its position via GPRS network to GPRS server (TR Management center). The format of SMS by mobile phone is as below.

  • Page 86: Tracking/Monitoring Tr-151 By Gprs

    5.6 Tracking/Monitoring TR-151 by GPRS Users can make commands to TR-151 for asking immediate report, periodical report, or stop report via GPRS server and network. Report type Format Note Example TR-151 will return Immediate report $0,IMEI! *note1 $0,355632000166323! $OK! Period report $1,IMEI,sec! *note2 $1,355632000166323,30!

  • Page 87: Displaying The Location On Map

    5.7 Displaying the location on map The format of longitudes and latitudes got from TR-151 differs from the format of Google map/earth’s longitudes and latitudes. So users have to convert the format of longitudes and latitudes got from TR-151 into the format Google map/earth’s longitudes and latitudes before displaying the location on map. The format of longitudes and latitudes got from TR-151 is like E2459.79 and N12129.26.
  • Page 88 Or you can start the Internet Explorer and type "http://maps.google.com" to connect to Google Map ● website for displaying the location map. Enter the latitude The Google Select "Satellite" or and longitude Map will "Hybrid". and click on display the It depends on Google Search button.

  • Page 89: How To Set Tr-151 Enter Geofence Mode

    5.8 How to set TR-151 enter Geofence mode? Users can send SMS by mobile phone or by TR Management center’s Skype (refer to 4.5.1 Set Geo-fence) to TR-151 for setting up to 10 permissible or restricted areas whose shape is circular or rectangular for tracking the vehicles or monitoring the equipment/assets.
  • Page 90 End sign Note 1: The format of Google map/earth’s longitudes and latitudes differs from the format of TR-151’s. So please convert the format of Google map/earth’s longitudes and latitudes into the format of TR-151’s longitudes and latitudes before setting Geofence. If you get a set of latitude and longitude from Google earth like 24°59’47.40”...
  • Page 91 {[R,longitude,latitude,longitude,latitude],[C,longitude,latitude,radius],} User can set rectangular follows by two longitudes and two latitudes. circular follows by one longitude, one latitude and one radius. Rectangle Example: R,E12128.1883,N2342.8117,E12129.2186,N2459.8915 Circle (radius is 1000 meters) Example: C,E12129.2186,N2459.8915,1000 Note 4: Example: Send one SMS to setup Geofence. Boundary includes one rectangle (two longitudes and two latitudes E12128.1883,N2342.8117,E12129.2186,N2459.8915) When TR-151 gets out boundary, it would send format1, 10 times, 120 sec interval, alarm message...

  • Page 92: How To Make Tr-151 Do Voice Monitor Function

    5.9 How to make TR-151 do Voice monitor function? User can send a SMS by a mobile phone or by TR Management’s Skype to ask TR-151 start the voice monitoring. The format of SMS is following as: ?6,IMEI,Return_Phone_Number! The table below explains the content of the SMS Format Description Start sign...

  • Page 93: How To Set The Parameters Of Parking Mode

    5.10. How to set the parameters of Parking Mode? Parking Mode is for users to make TR-151 to send out location SMS while it senses vibration over the value of sensitivity. When TR-151 is under Parking Mode, it will turn off the GPS module and turn on motion sensor.

  • Page 94: How To Set The Parameters Of Sleeping Mode

    Users can press the power button or send an SMS to exit from parking mode. The format of SMS is following as: ?2,IMEI,Return_Phone_Number! 5.11 How to set the parameters of Sleeping Mode? When TR-151 is under sleeping mode, its GSM module and GPS module will be turned off, the motion sensor will be turned on.
  • Page 95 Format0 Report format Format1 Set the number of vibration which enables TR-151 to send out alarm. The Sensitivity number you can set is 1～255. Larger value means less sensitive. Sleep_Return_Number Return phone number for default report mode. The confirmed SMS sent to the phone number to indicate the setting is Return_Phone_Number successful.

  • Page 96: The Return Format From Tr-151

    5.12 The return format from TR-151 Return SMS format from TR-151 The data format is configurable in the SMS tracking commands. There are two types of the data format as below. Format0 is for general end users who send SMS commands to TR-151 by their cell phone or PDA phone.
  • Page 97 Speed xxxxx.xx unit: knots (1knots = 1.852km) Heading Number_of_Satellites_In_Use HDOP Command End Format of return GPRS from TR-151 Format: Command_Head,IMEI,status,GPS_fix,date,time,longitude,latitude,altitude,speed,heading,number of satellites in use,HDOP,Command_End Example: $355632000166323,1,1,040202,093633,E12129.2252,N2459.8891,00161,0.0100,147,07,2.4! Format Value Note Command_Head IMEI (The number of IMEI) 0: Immediate report Status 1: Period report 2: Stop connect 4: Geo-fence 5: Battery Low...

  • Page 98: Sms Configuration

    5.13 SMS Configuration User can configure following parameters into TR-151 by SMS. There are seven settings as below. SMS Default Return Phone Number Maximum GPS Fixing Time Default Report Mode Setting SOS Numbers (Please refer to 5.1 How to set SOS number of TR-151 by SMS?) Parking setting Sleeping setting...
  • Page 99 Return_Phone_Number: TR-151 will send confirmed message back to this Return_Phone_Number. If user let Return_Phone_Number be empty, TR-151 will send report back to SMSDefaultReturnPhoneNumber. If Return_Phone_Number and SMSDefaultReturnPhoneNumber are both empty, TR-151 will send report back to caller ID. ReturnPhoneNnumberForDefaultReportMode: Return phone number for default report mode. TR-151 will send report to this number after it is turned on when Default Report Mode is set to immediate report or period report.

  • Page 100: Sms Configuration _ Sms Default Return Phone Number

    5.13.1 SMS Configuration _ SMS Default Return Phone Number TR-151 will send location report or confirmed message back to the return phone number that is in the last field of all SMS tracking commands. If user leaves “Return Phone Number” blank in the tracking commands, TR-151 will send SMS back to “SMS Default Return Phone Number”.

  • Page 101: Sms Configuration _ Maximum Gps Fixing Time

    5.13.2 SMS Configuration _ Maximum GPS Fixing Time You can set a period of time for TR-151 to get fixed of the location. When TR-151 cannot get fixed of the location within the period, TR-151 will send out the last location report. You can set the maximum GPS fixing time by TR Management center (refer to 4.2.1.1 TR-151 Basic...

  • Page 102: Sms Configuration _ Default Report Mode Setting

    5.13.3 SMS Configuration _ Default Report Mode Setting You can set the default report mode for TR-151. When TR-151 is powered on, it will enter the default report mode. You can set the default report mode by TR Management center (refer to 4.2.1.1 TR-151 Basic setup) or by sending SMS via mobile phone or via TR Management center (refer to...
  • Page 103 ?7,355632000166323,3,1,180,10,0,313987654,626123456! Stop. Configure default report mode as stop (standby), and send confirmed SMS to 626-123456. Example: ?7,355632000166323,3,2,,,,,626123456! Example: GPRS Period report. Configure default report mode as GPRS period report, send 180-sec period report, and send confirmed SMS to 626-123456. ?7,355632000166323,3,9,180,,,,626123456! TR-151 page 103...

  • Page 104: Sms Configuration _ Gprs Setting

    5.13.4 SMS Configuration _ GPRS Setting In order to make GPRS connection between TR-151 and TR Management center, you have to set the GPRS parameters into TR-151. You can set the GPRS parameters by TR Management center (refer to 4.2.1.3 TR-151 GPRS setting) or by sending SMS via mobile phone or via TR Management center (refer to 4.5.8 Set the GPRS...
