    TR-101 User Manual Ver 1.14...

  • Page 2: Table Of Contents

    7.5 Send out emergency SMS ....................16 8. Tracking by SMS mode ....................8.1 Send SMS from a cell phone to TR-101 ................17 8.2 TR-101 sends SMS to cell phone ..................17 8.3 Displaying the location on map ..................... 18 9.

  • Page 3: Introduction

    There are three speed-dial keys and one emergency key on the TR-101. You can use these features for protecting and searching children and old persons.

  • Page 4: Specification

    TR-101 3. Specification Hardware GSM module: embedded GSM 850/900/1800/1900 Operating temperature: -20° to 55° C Humidity: 5% to 95% Non-condensing GPS Chipset: SiRF Star III Dimension: 115 mm × 45 mm × 22.5 mm Frequency: L1, 1575.42 MHz Voltage: Rechargeable and replaceable 1300 mAh battery (3.7V), 5V for charging...

  • Page 5: Start-Up

    TR-101 . Start-up 4.1 Accessories 1. TR-101 2. 1300 mAh Li-ion Battery 3. Mini USB cable 4. AC power adapter 5. CD-ROM 6. Leather case (Optional) Li-lon Battery...

  • Page 6: Charging The Battery

    Before you can use the TR-101, you must complete the following procedures: 1. Fully charge the battery. Before your first time using of TR-101, please connect it with AC power adapter for battery charging at least hours under the power-off condition. (The included battery is specially designed for TR-101. Please do not use other type of battery, otherwise it will damage the device.

  • Page 7: Hardware Overview

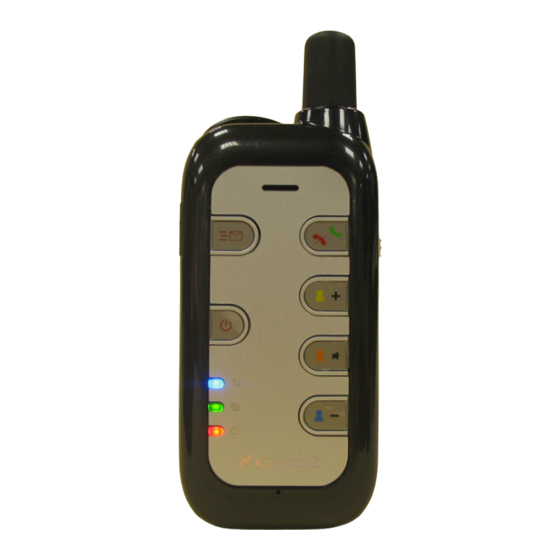

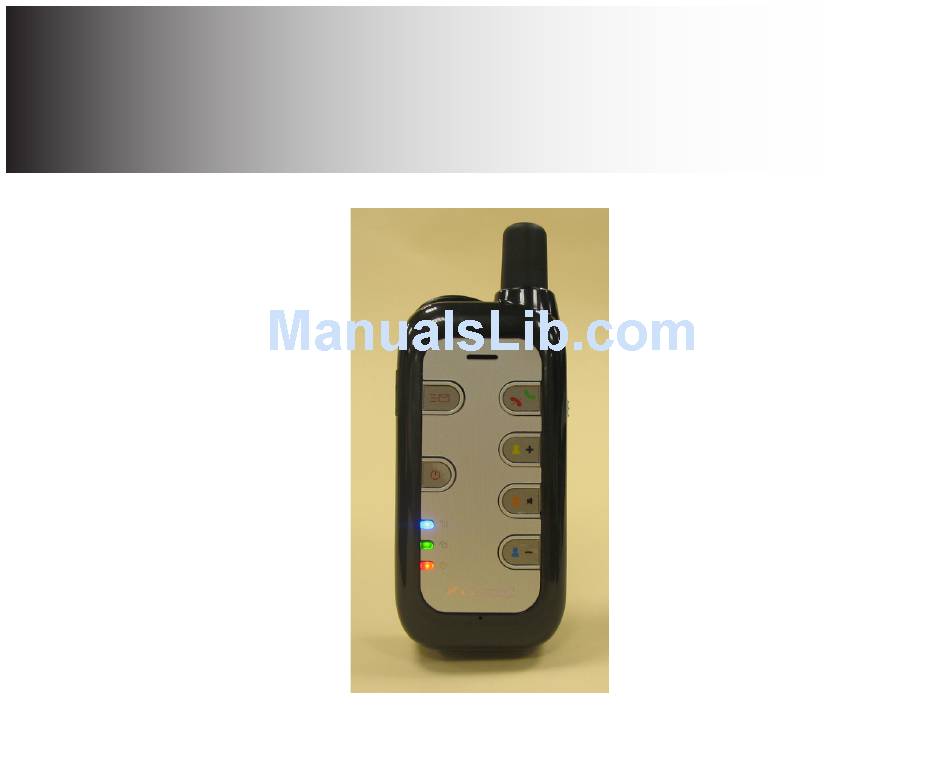

    TR-101 . Hardware Overview 5.1 Appearance SOS button Speaker Answer / Hang up Power button Quick dial 1 / Volume up Quick dial 2 / Mute the microphone GSM LED GPS LED Quick dial 3 / Volume down Power LED...

  • Page 8: Button Description

    Turn on / Turn off: Please see 7.1 for details. SOS button You can assign up to 3 sets of phone numbers to the SOS button. When this button is pressed, TR-101 will send it's location information to these 3 sets of phone numbers by SMS.

  • Page 9: Tr-101 Setup Wizard

    6.1 Install the USB driver 1. Insert the CD into CD-ROM drive. When the autorun dialog box is displayed, click on "Install USB Driver" button to install the TR-101 driver. 2. You will see dialog box 1, click on Next to continue.

  • Page 10: Install The Setup Wizard Program

    TR-101 6.2 Install the Setup Wizard program 1. From the autorun dialog box, click on the "Install PC Software" to install the Setup Wizard program. 2. Follow instruction in dialog box 1 to continue the installation. 3. When the installation is complete, click on Finish in dialog box 2 to close the dialog box.

  • Page 11: Basic Setting

    3. Start the TR-101 Setup Wizard program in your PC (or double click on the "TR101-Setup Wizard" icon from desktop). 4. Click on the Scan button to scan the COM port for which TR-101 is connected. When the scan process is finished, click on OK and it will automatically set the correct COM Port.
  • Page 12 TR-101...

  • Page 13: Position Report

    Back button to do 2. When everything is done, click on OK button to save the setting to TR-101. Note: The returned SMS from TR-101 to your mobile phone will be the following format: (example) Position Report: TR101 2005/01/02 11:20:30 24.9965,121.4877...

  • Page 14: Operating The Device

    TR-101 . Operating the device 7.1 Turn on / Turn off ● Turn on: When the device is off, press the Power button for 3 seconds, three LEDs will start to flash quickly from top to bottom. It will enter the standby mode with blue LED flash slowly after the startup process is finished.

  • Page 15: Adjust The Volume

    TR-101 7.3 Adjust the volume ● While in talking, you can press the "+" button to increase the volume. ● While in talking, the other party will not hear from you if the mute button is pressed to mute the microphone; press it again to enable the microphone.

  • Page 16: Send Out Emergency Sms

    1. To confirm that you have pressed SOS button correctly, TR-101 will followed by long flash the red LED about 2 times. 2. TR-101 will start to position itself with green GPS LED flashing; when the GPS position is fixed, the LED will be on.

  • Page 17: Tracking By Sms Mode

    . Tracking by SMS mode 8.1 Send SMS from a cell phone to TR-101 • Send a short message to TR-101 to trigger it for sending back the location information. (The message content can be anything, even a blank message.) 8.2 TR-101 sends SMS to cell phone...

  • Page 18: Displaying The Location On Map

    8.3 Displaying the location on map ● Start the Google Earth software. (For more information about the Google Earth software, please refer to “TR-101 Supporting User Manual En_Free Google Earth Software.pdf” which you can find them in the CD-ROM under the “Manual”...
  • Page 19 TR-101 ● Or you can start the Internet Explorer and type "http://maps.google.com" to connect to Google Map website for displaying the location map. Select "Satellite" or "Hybrid". It depends on Google Map whether your area is supported by this mode or not.

  • Page 20: How Does Tr-101 Work By Sms

    TR-101 . How does TR-101 work by SMS?
  • Page 21 TR-101 Answer Mobile Phone Call TR-101 Answer Figure. 1 mode is "On". (Any content, include blank SMS.) Mobile Phone TR-101 Answer mode is "On". example Position Report: Figure. 2 TR101 2005/01/02 11:20:30 24.9965,121.4877 GPS fixed Call or SMS (Any content, include blank SMS.)
  • Page 22 TR-101 Mobile Phone SOS number 1 TR-101 SOS number 2 When SOS button Emergency Report: example TR101 is pressed. 2005/01/02 11:20:30 24.9965,121.4877 SOS number 3 GPS fixed Figure. 4 TR-101 Mobile Phone Quick Dial number Call Answer When Quick Dial button is pressed.

  • Page 23: Troubleshooting And Safety Info

    ► Please do not connect TR-101 to a USB cable when you are changing the battery, otherwise it will make some beep sound. ► If TR-101 can not be turned off properly, please open the battery cover and remove the battery for at least 3 seconds. Put the battery back and then restart it.
  • Page 24 ► When you use TR-101 to make a call, but the other party can not be reached for some reason (not turn on, busy line, reject the call), you may hear the voice that requests you to leave a message in the voice box. If you don't want...

  • Page 25: Fcc Notices

    TR-101 FCC Notices This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
