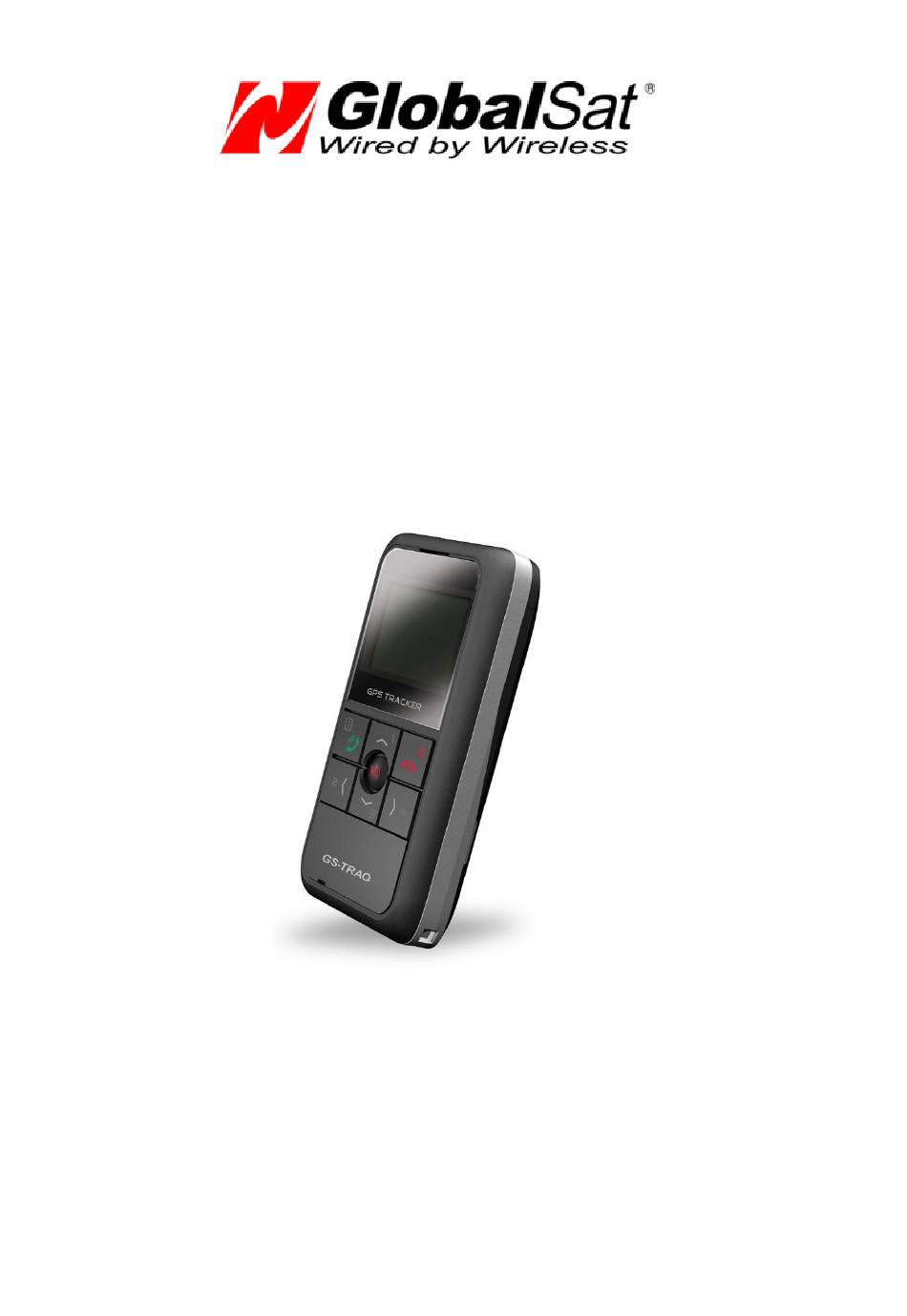

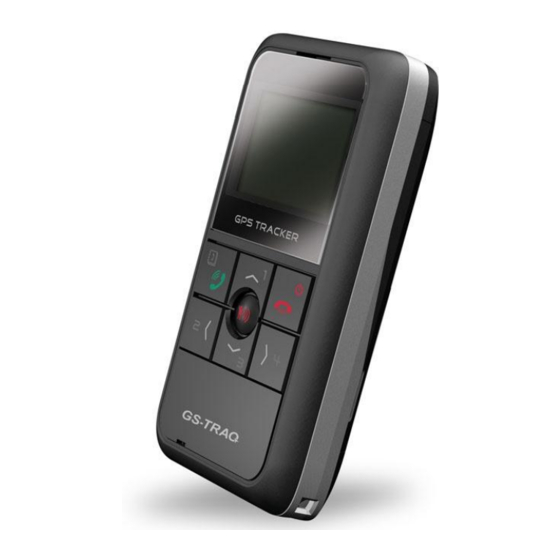

GlobalSat TR-206 / TR-206 GLONASS
Персональный GSM/GPRS/SMS трекер
ОПИСАНИЕ ПРОТОКОЛА ОБМЕНА ДАННЫМИ
Версия документации: 1.2
©
2009-2014
ООО «ГлобалСат»

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR-206 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Globalsat TR-206

Summary of Contents for Globalsat TR-206

  • Page 1 GlobalSat TR-206 / TR-206 GLONASS Персональный GSM/GPRS/SMS трекер ОПИСАНИЕ ПРОТОКОЛА ОБМЕНА ДАННЫМИ Версия документации: 1.2 © 2009-2014 ООО «ГлобалСат»...

  • Page 2: Table Of Contents

    Оглавление 1 Introduction ..............................3 2 Protocol Summary ............................4 2.1 General Format ............................ 4 Format of Configuration Message ....................5 Codeword of Configuration Parameters ..................12 Codeword of Command ....................... 29 Report Media ..........................31 Configuration ............................33 GSM & GPRS ............................35 GPRS Setting ..........................

  • Page 3: Introduction

    1 Introduction TR-206 is a tracker that could track the location of the elderly, children, pets, and vehicles. It can apply for fleet management, looking for lost children, elderly care, and lost pets. The key functions of TR-206 are listed as below.

  • Page 4: Protocol Summary

    ‘3’ : Start and End of message, i.e., only one packet for message ‘0’,’1’,’2’,’3’,…,’9’,’10’,’11’,…,’99’ Sequence number Field 1 ~ Field N, separated by ‘,’, contain command Refer to “TR-206 Field configure parameters” or/and configuration parameters for details End of field...

  • Page 5: Format Of Configuration Message

    GSS,123456789012345,1,0,A0=1,C0=0,C1=90,C2=20*51! GSS,123456789012345,0,1,D1=internet,E0=123.234.168.1,E1=5000*04! GSS,123456789012345,2,2,O3= SORPZAB27GHKLMN*U!*01! 2.2.2 Device -> Server The message is generated by the TR-206 in accordance with a reading configuration command. If the message is too long, it will be separated into several packets in sequence. The format is GSs,IMEI,T,S,x1=y1,x2=y2,x3=y3,…………………….*Check Sum!
  • Page 6 Setting of each area is enclosed by (…). Please refer to 2.3.3 & 7.3 for detail. 2.3.2 Device -> Server The message is generated by TR-206 in accordance with a reading geo-fence setting command. If the message is too long, it will be separated into several packets in sequence.
  • Page 7 type 1=get in area 2=get out of area 3=cross over the boundary 4=stay in area 5=stay out of area upper_left_Lon The upper left coordinate of specified area. upper_left_Lat right_bottom_Lon The right-bottom coordinate of specified area. right_bottom_Lat startTime Optional field for specifying the effective time frame endTime of this geo-fence area.
  • Page 8 2.5 Format of Report Message Report message is generated by the TR-206 to inform the application server of its location and status. There are three types of GPRS report message format, “format 0”, “format 1” and “format 2”. Report format 0 (GSr,…) & format 1 (GSh,…) are configurable reports. They are composed of report prefix and report parameters which are described in section 2.6.
  • Page 9 2.6 Parameters of Report Messages Parameters of Report Message Codeword Parameters Description GPS fixing status 1=not fix 2=2D fix 3=3D fix UTC Date, Time ddmmyy,hhmmss Local Date, Time ddmmyy,hhmmss Longitude (E or W)ddd.dddddd Longitude (E or W)dddmm.mmmm Longitude (+ or -)ddddddddd unit: 0.000001 degree Latitude (N or S)dd.dddddd...
  • Page 10 8=Off Alarm status xx(hex digits) bit0=SOS alarm bit4=Geo-fence alarm bit5=Speed alarm bit7=Battery low alarm Geo-fence status Empty field: no geo-fence alarm Ixxx: get in area xxx Oxxx: get out area xxx Report Media xx(hex digits) bit0=SMS bit1=TCP bit2=UDP bit5=USB bit6=Acton[0] bit7=Action[1] Action=00: report format 0 Action=01: report format 1...
  • Page 11 b=Power on report (battery) c=Power on report (temperature) d=Power on report (OTA complete) e=Power on report (reboot) f=OTA download fail g= Power off report (manual) h=Power off report (battery) i= Power off report (temperature) j=request EPO download IMEI Device ID Checksum The checksum value is derived by the same method of NMEA standard.

  • Page 12: Codeword Of Configuration Parameters

    Send the “GSC,….!” command with the configuration parameters to TR-206 All the settings or commands could be sent by SMS or TCP or UDP. You could also send L1 command to read the present setting of TR-206. Configure Parameters Code...
  • Page 13 The power capacity for sending out 15 ~ 100 battery low alarm percent report The power capacity 10 ~ 100 for power off TR-206 percent bit0=SMS bit1=TCP bit2=UDP bit5=USB Battery low alarm Media bit6=Action[0] report Media type bit7=Action[1] Action=00: report format 0...
  • Page 14 Default=0. Enable/ disable The report format will TR-206 to report “cell automatically switch from format ID” if it does not get 0 to format 2 when TR-206 does GPS fix not get GPS fix. Report media for bit1=TCP Media reading...
  • Page 15 TR-206 got GPS fix not when C2 time ends. within 1 hour GPS fix time before 0 ~ 600 u16, in sending out the first If "C3"=0, disable first report seconds report message. 0=use C8 Choose to use C8 or...
  • Page 16 SMS return phone char(20) number 0= Same as GPRS format SMS format 1= Text format SMS format 1 report char(96) string for ping SMS format 1 report char(96) string for SOS alarm SMS format 1 report string for main char(96) battery low SMS format 1 report string for geo-fence...
  • Page 17 SMS format 1 report string for high speed char(96) alarm SMS format 1 report string for low speed char(96) alarm SMS format 1 report char(96) string for timer 0 SMS format 1 report char(96) string for timer 1 SMS format 1 report char(96) string for timer 2 SMS format 1 report...
  • Page 18 Command 1=enable Date format (LCD) dd/mm/yy or mm:dd:yy 0=12 hour Time format (LCD) 1=24 hour 1=enable Daylight saving 0=disable 1=enable Auto key lock 0=disable 0=vibrator + beep 1=beep Vibrator/beep type 2=vibrator 3=off 0=minimum 1=medium Volume level of ring 2=maximum 3=progressive tone Default=1 0=minimum 1=medium...
  • Page 19 bit0=SMS bit1=TCP bit2=UDP bit5=USB Media Report media bit6=Action[0] Type bit7=Action[1] Action=00: report format 0 Action=01: report format 1 Action=10: GPS on Number of SMS 1 ~ 65535 report u16, in 0 ~ 65535 report interval seconds Default=30 Number of GPRS 0 =continue sending SOS alarm report till receive stop command report...
  • Page 20 bit7=Action[1] Action=00: report format 0 Action=01: report format 1 Action=10: GPS on 0=disable Geo-fence enable 1=enable bit0=SMS bit1=TCP bit2=UDP bit5=USB Geo-fence alarm Media bit6=Action[0] type report Media bit7=Action[1] Action=00: report format 0 Action=01: report format 1 Action=10: GPS on bit1=TCP Report media for Media bit2=UDP...
  • Page 21 Interval for checking if GPRS connection is on-line. If GPRS u16, in connection is cut, 0=disable seconds TR-206 will try to connect to server for one time. Enable/disable 0=disable TR-206 to send “OK” 1=enable to server after GPRS...
  • Page 22 1=enable Interval in on-line state for u16, in 0=disable disconnecting and seconds then re-connecting Interval for checking if GPRS connection is online. If GPRS u16, in 0=disable connection is cut, seconds TR-206 will try to connect to server for...
  • Page 23 Enable/disable TR-206 to send “OK” 0=disable to server after GPRS 1=enable connection is Available when E5 is not 0 re-built. Interval for switching from validation to u16, in 0=Interval is the same with R1 static state seconds if no motion detected...
  • Page 24 a week, where bit 0 represents Sunday, bit1 represents Monday, etc. bit0=SMS bit1=TCP bit2=UDP bit5=USB Media Report Media bit6=Action[0] type bit7=Action[1] Action=00: report format 0 Action=01: report format 1 Action=10: GPS on u32, in Start time 0 ~ 86399 seconds u32, in End time 1 ~86400...
  • Page 25 u32, in Start time 0 ~ 86399 seconds u32, in End time 1 ~ 86400 seconds u16, in Report interval 0 ~ 65535 seconds 00 ~ 7f Weekday is in hex-digit format u8, xx(hex which specifies applicable day in Weekday mask digits) a week, where bit 0 represents Sunday, bit1 represents Monday,...
  • Page 26 bit6=Action[0] bit7=Action[1] Action=00: report format 0 Action=01: report format 1 Action=10: GPS on Melody of alarm clock 1 Alarm time of alarm u32, in 0 ~ 86400 clock 1 seconds 0=disable 1=once Type of alarm clock 1 u8 2=daily 3=weekly (XD must be set) Available when XC=3 00 ~ 7f Weekday is in hex-digit format...
  • Page 27 Available when ZC=3 00 ~ 7f Weekday is in hex-digit format Weekday mask of u8, xx(hex which specifies applicable day in alarm clock 2 digits) a week, where bit 0 represents Sunday, bit1 represents Monday, etc. Prompt message of Char(16) alarm clock 2 Melody of alarm clock 3...
  • Page 28 Phone number of VA~VT Char(20) phone book Contacts of phone Va~Vt Char(24) book...

  • Page 29: Codeword Of Command

    Disable Data logger Dismiss SOS alarm Dismiss Geo-fence alarm Dismiss low battery alarm Dismiss All alarm Adding up to 1-5 parameters. Read Configuration If parameter=(ALL), then all user configuration data will be reported. Read Geo-fence Make TR-206 connect to Server...
  • Page 30 Example: Ask TR-206 to send configuration parameters. GSC,123456789012345,L1(R0,R1,RE,RF)*35! Example: Ask TR-206 to restore default configuration. GSC,123456789012345,LA*6a! Example: Ask TR-206 to send SMS message to 0918518518. GSC,123456789012345,LJ(0918518518,”00Please call service center ASAP.”)*3b! Example: Ask TR-206 to switch to motion mode. GSC,123456789012345,M4(R0=3600,R1=60)*31! Example: Ask TR-206 to connect to server immediately.

  • Page 31: Report Media

    2.9 Report Media Report media is the method that TR-206 sends report. No matter how you send the command by SMS or TCP or UDP, TR-206 will send the report according to the appropriate report media setting. A report media byte contains 8 flag bits and it is represented by 2 hex digits.
  • Page 32 TCP, the server IP is 213.219.245.116, the server port number 20100. The setup command is GSS,011412000011274,3,1,D1=internet,D2=,D3=,D8=02,E0=213.219.245.116,E1=20100 *QQ! Example2: Set TR-206 periodic report and ask it to report based on traveled distance (P3) of 500 meters The setup command is GSC,011412000010789,M2(P3=500)*72! The checksum is 72.

  • Page 33: Configuration

    2.7 for the list of configuration parameters. 3.1 Read parameters of configuration The PC tool “TR-206 Config Tool_DEV.exe” is used to configure the device by RS-232 interface. You could also send L1 command to remotely read back the setting by TCP or UDP protocol.
  • Page 34 213.219.245.116 Host Port number 1 20100 GSS,138785469589531,3,0,D1=internet,E0=213.219.245.116,E1=20100*01! Example 2: Ping TR-206 and set parameters of Timer 1: Start time: 09:00 AM (X0=32400), End time: 06:00 PM (X1=64800), Report interval: 1 hour (X2=3600), Report day: from Monday to Friday (X3=3E) GSC,011412000012789,N1(X0=32400,X1=64800,X2=3600,X3=3E)*4b!

  • Page 35: Gsm & Gprs

    4 GSM & GPRS GPRS Setting In order to activate the communication between server and device, the GPRS parameter is necessary to set at the beginning. The GPRS parameters are included as the table below. Please contact with your telecom operator for the APN, user name, and password.

  • Page 36: Acknowledgement

    ”Device ID, ACK\r” ”IMEI, ACK\r” Note: “Device ID” is defined by O5. For example, set A0=1, A1=1, A3=1, A4=1, server sends command to TR-206 whose IMEI is 011412000010789. After receiving the command, TR-206 will send acknowledgement receipt as “011412000010789,ACK\r” For example, set A0=1, A1=1, A3=1, A4=0 and O5=Globalsat. After receiving command, TR-206 will send acknowledgement receipt as “Globalsat,ACK\r”...
  • Page 37 4.2.1 Receive Acknowledgement from Server Receive ACK from server during “A2” time: Server Device Send commands via SMS or UDP or TCP Report via SMS or UDP or TCP “A2” time ACK\r Send “ ” via SMS or UDP or TCP Didn’t receive ACK from server during “A2”...
  • Page 38 4.2.2 Respond Acknowledgement to Server Receive report commands from server: Server Device Send report commands via SMS or UDP or TCP Respond ACK via SMS or UDP or TCP Send report via SMS or UDP or TCP Receive other commands from server: Server Device Send other commands via SMS or UDP or TCP...

  • Page 39: Gprs Connection

    4.3 GPRS connection Normally TR-206 will setup GPRS connection before sending report and disconnect after sending report. But TR-206 will try to keep GPRS always on-line in one of the following conditions.  In on-line mode  In motion mode / static state and ‘RB’ is set.
  • Page 40 Keep GPRS on-line in static 0=disable state of motion mode 1=enable Keep GPRS on-line in moving 0=disable state of motion mode 1=enable Command format: GSC,IMEI,L4*Checksum! Command Codeword Parameters Connect to server Example: Ask TR-206 to connect to server by TCP. GSC,123456789012345,L4(D8=02)*5d!

  • Page 41: Gps

    While using timer, you could set the report media (X4 or Y4 or Z4) as 80, then TR-206 will turn on the GPS according to the report interval (X2 or Y2 or Z2) and check location/distance/speed related functions. For the details of setting timer, please refer to chapter “9 Timer.”...
  • Page 42 GPS always on in moving state 1=enable C1 example, the next report time is 10:00:00 AM and TR-206 does not get GPS fix in last report, C1 is 180 seconds. TR-206 will start to get GPS fix at 9:57:00 AM and...
  • Page 43 C2 example, the next report time is 10:00:00 AM and TR-206 got GPS fix within 1 hour, C2 is 20 seconds. TR-206 will start to get GPS fix at 9:59:40 AM and send out report at 10:00:00 C3 example, C3=10 seconds, TR-206 is in the static state of motion mode. When TR-206 is moved, it will switch to moving state and try to get GPS fix for 10 seconds.

  • Page 44: Tracking

    N1. Please set the tolerance time for TR-206 to get fixed before sending out the report by the parameter OS. TR-206 will turn on GPS once N1 command is received. If TR-206 gets GPS fix within OS time, it will send ping report as soon as it gets GPS fix.
  • Page 45 Set periodic mode Example 1: Set TR-206 periodic report and ask it to report based on traveled distance (P3) of 500 meters (Send command via SMS or TCP or UDP), turn on GPS by timer 1: Start time:12:00 AM (X0=0), End time:12:00 AM (X1=86400), Report interval:30 seconds...
  • Page 46 (X2=30), Report time: From Monday to Sunday (X3=7F), GPS on (X4=80) GSC,011412000010789,M2(P3=500,X0=0,X1=86400,X2=30,X3=7F,X4=80)*7F! Note: You have to turn GPS on. Please refer to chapter 5 GPS. Example 2: Set TR-206 periodic report and ask it to report based on report interval (P0) 0f 30 seconds GSC,135785412249986,M2(P0=30)*45!
  • Page 47 6.3 On-Line Mode In On-Line mode, TR-206 works in the same way as that of periodic mode except it will keep GPRS connection after sending report. If TR-206 detects the GPRS connection is cut, it will try to connect to server for one time. If it cannot connect to server, it will re-connect to server at next report time.
  • Page 48 6.4 Motion Mode TR-206 has built in a motion sensor to detect the movement or vibration. Using this feature, the device can work in moving state or static state. Each state has independent parameters to control the behavior. Basically, TR-206 will send report periodically according to the interval defined for the working state.
  • Page 49 You may configure parameters to send report by specific media for state transition. If report interval is set to 0, TR-206 will not send report in respective state. Parameter ‘O1’ is used to control the sensitivity of motion sensor. The larger the value is, the less sensitive the sensor is.
  • Page 50 Report media Commands format: GSC,IMEI,M4*Checksum! Commands Codeword Parameters Set motion mode Example: Set TR-206 motion mode with report interval of 3600 seconds for static state (R0), report interval of 30 for moving state (R1) and report media (R2) TCP GSC,130158974523157,M4(R0=3600,R1=30,R2=02)*44!
  • Page 51 7.1 Emergency When SOS (Emergency) button is hold and pressed over 2 seconds, The SOS alarm flag will be raised and TR-206 will start to send emergency reports by SMS and/or TCP/UDP with the interval defined by ‘H2’. The SMS reports can be configured to send to maximum 6 sets of phone numbers.
  • Page 52 7.2 Speed Limits TR-206 implements high speed alarm and low speed alarm. There’re two parameters for the function to work. One is the speed limit (OI / OJ). The other one is the hysteresis range (OP). Once the speed alarm is detected, the alarm flag of alarm status is set and a report is sent.
  • Page 53 The parameters of speed alarm are listed below. Code Parameters Value word u8, in Km/H Upper limit of speed alarm 0 ~ 255 Km/H 0=disable u8, in Km/H Lower limit of speed alarm 0 ~ 255 Km/H 0=disable Please refer to 2.9 Report media for speed alarm Report media u8, in Km/H...
  • Page 54 Example 2: Set lower limit of speed alert (Send command via SMS or TCP or UDP) GSS,10339376540375,3,0,OJ=65,OP=5,OL=02*5E! The behavior mode is as following: Speed higher than the top limit  Automatic dismiss alarm  OJ+OP 70 Km/h 65 Km/h  OJ-OP 60 Km/h ...
  • Page 55 7.3 Geo-fence Geo-fence is for setting a rectangular area as permissible area or restricted area. When TR-206 gets out of the permissible area or goes in to the restricted area, TR-206 will send a report to notify the alarm condition.
  • Page 56  Left (west) longitude, Top (north) latitude  Right (east) longitude, Bottom (south) latitude  Type  Optional effective time window (start time, end time, weekday mask) Message format for configuring Geo-fence area: GSG,IMEI,T,S,1=(type,upper_left_Lon,upper_left_Lat,right_bottom_ Lon,right_bottom_Lat[,gxxx][,StartTime,EndTime,weekday]),2=(…), 3=(…),…*Checksum! A complete geo-fence configuration message may be composed of several packets in sequence.
  • Page 57 Bit 0 : Start of message Message Bit 1 : End of message packet control Bit 2 : Erase all of previous setting ‘0’,’1’,’2’,’3’,…,’9’,’10’,’11’,…,’63’ Sequence number ‘1’ ~ ‘64’ Area ID type 0=disable the area Alert type of 1=get in area Geo-fence area 2=get out of area 3=cross over the boundary...
  • Page 58 12129141x0.000001=12.129141degree Start Time 0~86400 sec Example: 00:00:01 = 1 23:59:59 = 86399 End Time 0~86400 sec Example: 00:00:01 = 1 23:59:59 = 86399 weekday bit0=Sunday bit1=Monday bit2=Tuesday bit3=Wednesday bit4=Thursday bit5=Friday bit6=Saturday End of field Checksum The checksum value is derived by the same method of NMEA standard.
  • Page 59 =(3,160053272,24144678,160056791,2414037)*73! GSG,130738902846156,2,2,56=(1,160080072,24161526,160080866,24160439),57 =(2,160075888,2410602,120722923,2406402)*47! Example 1.2: Disable the 56 set of geo-fence (by setting the alert type to be 0) GSG,130738902846156,3,0,56=(0,160080072,24161526,160080866,24160439)*61 Example 1.3.1: Erase 52 sets of geo-fence areas and set 2 geo-fence areas GSG,130738902846156,7,0,1=(1,12146435,25009979,121466711,25008423),2=(1, 121471624,25012487,121474736,25010756)*7C! Example 1.3.2: Erase 52 sets of geo-fence areas and set 3 geo-fence areas GSG,130738902846156,5,0,1=(1,12146435,25009979,121466711,25008423),2=(1, 121471624,25012487,121474736,25010756)*7E! GSG,130738902846156,2,1,3=(1,123479371,28016629,123148068,28015657)*55!
  • Page 60 7.3.2 Reading Geo-fence setting of reading geo-fence data is ‘L3’ and the report media is Command defined by ‘K4’. Command Codeword Parameters (id1,id2~id3,id4) Example 1: Read 1 Geo-fence areas GSC,132763902812736,L3(1- 10)*04! Example 2: Read Geo-fence area 1,2,5~8 & 10. GSC,132763902812736,L3(1,2,5~8,10)*44! Message format for reading Geo-fence area: GSg,IMEI,T,S,id1=(type,upper_left_Lon,upper_left_Lat,right_bottom _Lon,right_bottom_Lat[,StartTime,EndTime,weekday]),id2=(…),id3...
  • Page 61 Asking TR-206 enter geo-fence alert state and make GPS always on (C0=1) GSC, 135097652783615,N6(C0=1)*47! Example 2: Asking TR-206 enter geo-fence alert state and use timer 1: Start Time: 12:00AM (X0=0), End Time:11:59PM(X1=86399), Report Interval=0 (X2=0), Weekday: Sunday~ Saturday (X3=7f), Report Media: GPS ON(X4=80)
  • Page 62 (type 5), you could dismiss the geo-fence alarm to check if TR-206 still stay in the geo-fence area or stay out of the area. After dismissing the geo-fence alarm, if TR-206 still stays in the geo-fence area or stay out of the area, TR-206 will send a new report.

  • Page 63: Timer

    8 Timer Timer can be used to send report or turn on GPS. There are four periodic timers for setting specified time report. The timers are effective during the time frame from start time to end time and the weekday defined by weekday mask. When start time is reached, the device enables the periodic timer with defined interval.
  • Page 64 Code Parameters Value Description word Start time 0~86399 End time 1~86400 Report interval 1~65535 Weekday mask 00~7f u8, xx(hex digits) Please refer to 2.9 Report Report Media Media type media Start time 0~86399 End time 1~86400 Report interval 1~65535 Weekday mask 00~7f u8, xx(hex digits) Please refer to 2.9 Report...

  • Page 65: Alarm Clock

    9 Alarm Clock TR-206 has built in 3 alarm clocks. Each alarm clock has 5 setting parameters – alarm melody, alarm time, type, weekday mask & prompt message. Alarm clock type specifies the clock is effective for once, daily or recurrently.
  • Page 66 XC, YC, ZC to be 0. If you sets the frequency as recurrently (XC or YC or ZC=3), you must also set the weekday mask of alarm clock. XE, YE, ZE are for showing the message on TR-206 LCD when alarm clock rings. Example 1:...
  • Page 67 “Get up” (XE=Get up) GSS,011412000010789,3,1,XA=2,XB=14430,XC=2,XE=Get up*1d! Example 2: Make TR-206 ring on 10:00 (YB=36000) from Monday to Friday (YC=3, YD=3e) with melody 1 (YA=1) and show message “Meeting” (YE=Meeting) GSS, 011412000010789,3,1,YA=1,YB=36000,YC=3,YD=3e,YE=Meeting*48!

  • Page 68: User Interface

    10 User interface There’re parameters that control the behavior of user interface. They are summarized in the following table. Code Parameters Value Description word Date format (LCD) Char(16) See note below 0=12 hour Time format (LCD) 1=24 hour 1=enable Daylight saving 0=disable 1=enable Auto key lock...
  • Page 69 Note: F4 could be dd/mm/yy or mm/dd/yy or yy/mm/dd. The date, month and year could also be separated by ‘:’. F7: Make F7 =1 will make TR-206 lock the keys if there’s no key pressed for 30 seconds.

  • Page 70: Report Messages

    11 Report Messages A report is generated by a specific event, such as ping, SOS alarm, battery low, etc. Each event has a corresponding report type and report media. Please refer to section 2.6 for the mapping of report type. The report media defines the report channel (TCP/UDP/SMS) and report format.
  • Page 71 “O3”. Please refer to section 2.6 for the available report parameters and the respective code words. Please collect the required code words and put them together to form a string and set to “O3”. Then TR-206 will generate report according to the codeword sequence and translate to corresponding information.
  • Page 72 “ON”. Please refer to section 2.6 for the available report parameter and the respective codeword. Please collect the required codeword and put them together to form a string and set to “ON”. Then TR-206 will generate report according to the codeword sequence and translate to corresponding information.
  • Page 73 11.3 Format 2 of Report Messages GSM Cell ID is assisted information to get device location. When TR-206 does not get GPS fix, you could enable TR-206 to report the Cell ID information. Then the report format of TR-206 will automatically switch from format 0 to format 2 when TR-206 does not get GPS fix.
  • Page 74 ,0A8C,E726,11,11"*01! 11.4 SMS Report If the SMS flag of the report media is enabled when TR-206 is generating report, a SMS report will be sent to the phone number defined by F0. There’re two types of SMS message. The first one is the same as GPRS messages described in the above sections.
  • Page 75 SMS format 1 "00Emergency! $+IMEI:$S$+Time:$C$+GPS report string char(96) $A$+$6,$1$+Speed:$I km/hr$+Power:$N%" for SOS alarm SMS format 1 "00Power low!$+IMEI:$S$+Time:$C$+GPS report string char(96) for main $A$+$6,$1$+Speed:$I km/hr$+Power:$N%" battery low SMS format 1 "00Geofence report string char(96) alarm$+IMEI:$S$+Time:$C$+Area for geo-fence $Z$+$6,$1$+Speed:$I km/hr$+Power:$N%" alarm SMS format 1 "00Periodic report string...
  • Page 76 SMS format 1 report string "00Stop moving!$+IMEI:$S$+Time:$C$+GPS for changing char(96) $A$+$6,$1$+Speed:$I km/hr$+Power:$N%" from moving to static state SMS format 1 report string "00Over speed!$+IMEI:$S$+Time:$C$+GPS char(96) for high $A$+$6,$1$+Speed:$I km/hr$+Power:$N%" speed alarm SMS format 1 report string "00Under speed!$+IMEI:$S$+Time:$C$+GPS char(96) for low speed $A$+$6,$1$+Speed:$I km/hr$+Power:$N%"...
  • Page 77 Example: Ping: "00Ping!$+IMEI:$S$+Time:$C$+GPS $A$+$6,$1$+Speed:$I km/hr$+Power:$N%" S=IMEI C=Local date, time A=GPS fix status 6=latitude 1=longitude I=speed (km/hr) N=battery capacity The received SMS is displayed as Ping! IMEI:12345678901234 Time:2009/11/17 04:43:20, GPS:3D fix N21.924598,E100.314536 Speed:18km/hr Power:70%...

  • Page 78: Data Log

    12 Data Log The function of Data Log is used to record the GPS location information in TR-206. The recording criteria may based on time interval or/and traveled distance. If traveled distance criterion is selected, GPS must be turned on to calculate the moving distance.

  • Page 79: Buffer Storage

    When TR-206 is carried to the areas with GSM/GPRS signal, it will retrieve the reports in the buffer storage and send them to server. TR-206 could save up to 8000 pieces of location reports to buffer storage.

  • Page 80: Simple Command

    14 Simple Command Typical command of TR-206 is composed of command code words, parameters & checksum. The code words are hard to remember and you may need a tool to generate the checksum. The purpose of simple command is to simplify the command format and send command without checksum.
  • Page 81 The command is “GSS,011412000010789,3,1,OU=VICTORY,A5=1*7e!” Example 2, cancel the password of TR-206. The command is “GSS,011412000010789,3,1,OU=*5b!” Example 3, ping TR-206 and set the tolerance time of GPS fix as 3 minutes. The password is 520JX The command is “520JX,PI=180” Example 4, switch TR-206 to motion mode and set the moving report interval as 30 seconds and static report interval as 30 minutes.

  • Page 82: Техническая Поддержка

    Техническая поддержка Мы делаем всё возможное, чтобы сервис и оборудование компании GlobalSat были удобными и простыми в использовании. Но, если у Вас возникли вопросы по оборудованию, услугам или настройкам сервера, а также по подключению оборудования, обратитесь в нашу Службу Технической Поддержки, и мы поможем...
