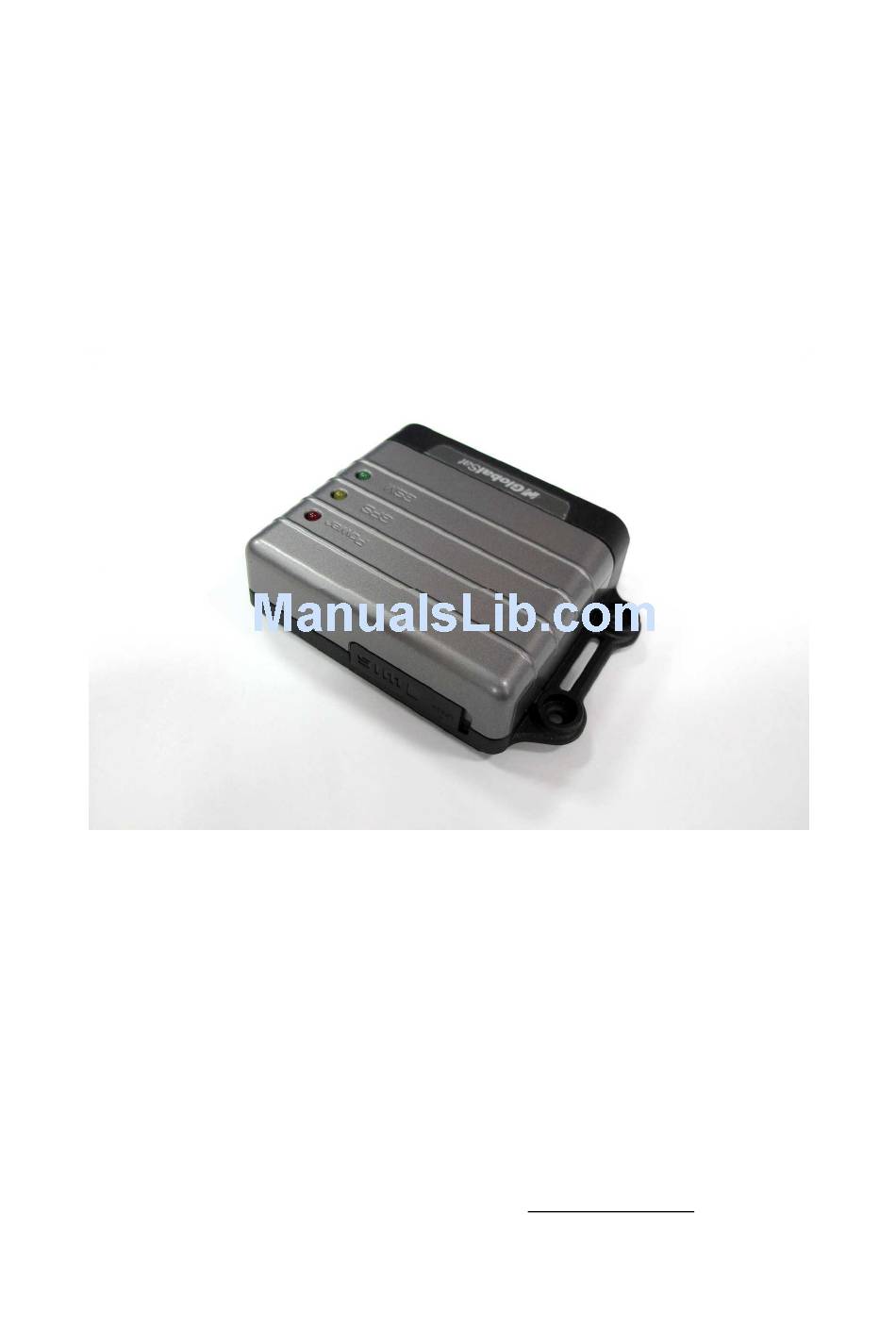

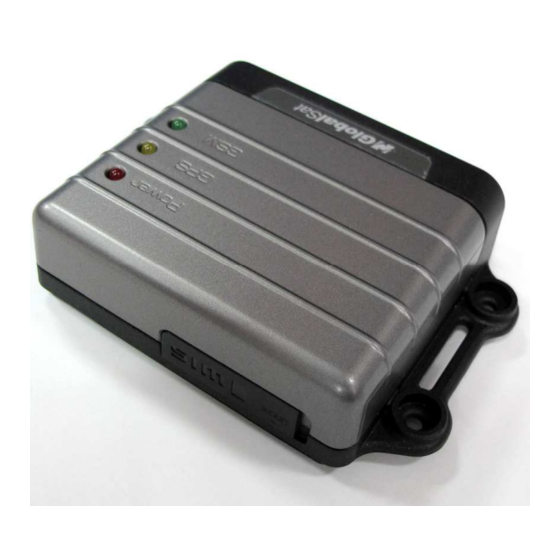

  • Page 1 GLONASS AVL Tracking System TR-600G GlobalSat WorldCom Corporation 16F., No. 186, Jian 1 Rd, Zhonghe Dist., USGlobalSat Incorporated 14740 Yorba Court Chino, CA 91710 New Taipei City 23553, Taiwan 909.597.8532 Tel: 888.323.8720 / Fax: Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899 sales@usglobalsat.com service@globalsat.com.tw www.usglobalsat.com...

  • Page 2: Table Of Contents

    CONTENT 1. Introduction ............................3 1.1 Introduction ..........................3 1.2 Features ............................ 3 1.3 Hardware Architecture ......................4 1.4 Hardware specification ......................5 1.5 Appearance ..........................6 1.6 LED indicator ........................... 7 1.7 Cable description ........................8 1.8 Accessories ..........................10 2 Operation ............................

  • Page 3: Introduction

    It integrates high sensitivity GPS/GLONASS/GALILEO module and Quad-band 850/900/1800/1900 GSM communication module with powerful microcontroller into a compact board. TR-600G enclosed into a solid housing for simple installation. It provides Real Time GPS/GLONASS/GALILEO positions anytime and anywhere in the open sky and offer the precise position and vehicle status to control computer to display the necessary information onto the maps.

  • Page 4: Hardware Architecture

    1.3 Hardware Architecture GPS antenna GSM antenna Speaker MODEM Microphone Glonass USART/ RS-232 Emergency Analog Motion Li backup Digital Digital Input Sensor Battery input output...

  • Page 5: Hardware Specification

    1.4 Hardware specification Item Description Dimension 98 mm X 71 mm X 22 mm High performance line ARM-base 32-bit MCU GPS receiver High sensitive GPS/Glonass receiver -30℃ ~ + 80℃ Temperature Operation -40℃ ~ + 85℃ Storage GPS Antenna SMA Type connector. Active antenna ( 3.3~3.8V) GSM Antenna SMA Type connector.

  • Page 6: Appearance

    1.5 Appearance Peripheral interface port I/O port Power Status LED GPS LED GSM LED For fixing device with screws GSM antenna connector For fixing device with belt GPS antenna connector SIM card holder...

  • Page 7: Led Indicator

    GPS not fix GPS fix GSM LED (Green) Permanently off Fast blinking (Once Slow blinking (Once every 1 second) every 3 seconds) State GSM off TR-600G is TR-600G is registered searching GSM full service network SIM card is registering to GSM network...

  • Page 8: Cable Description

    1.7 Cable description 14 Pin I/O Cable Wire Color Description Green/ White Analog Input_1 White Digital Output 3 (Negative Trigger) Gray Digital Output 1 (Negative Trigger) Purple Digital Input 3 (Positive Trigger) Blue Digital Input 1 (Negative Trigger) Black Ground Main Power Green Digital Output 2 (Negative Trigger)
  • Page 9 8 Pin Cable Wire Color Description Pink Audio_5V Blue Speaker 1(Positive) Serial-1_5V White Receiver 1 White Microphone 1 P Black (3 Pieces) Ground Orange Speaker 1(Negative) Green Transmission 1...

  • Page 10: Accessories

    1.8 Accessories Main Unit GPS Antenna GSM Antenna 14 Pin I/O Cable 8 Pin Cable RS-232 Cable (Option)

  • Page 11: Operation

    To eject SIM card, simply, use your finger nail and apply slight pressure. Note: Make sure to disable the SIM PIN entry function on the SIM card before inserting your SIM card Note: Before installing or taking out the SIM card, please power off the TR-600G.

  • Page 12: Install The Gps And Gsm Antenna

    2.2 Install the GPS and GSM antenna Install the GSM antenna to the GSM antenna port on the left side of the back of the device and install the GPS antenna to the GPS antenna port on the right side of the back of the device making sure both antennas tightly screwed in place.

  • Page 13: Installing The Emergency Button

    2.3 Installing the Emergency button There is a line of the 14 pin IO cable for connecting push button for emergency help. One end of the button must be connected to the emergency line and the other end must be connected to the ground line.
