TR-203 Personal Tracker
Globalsat Technology Corporation
16F., No. 186, Jian-Yi Road, Chung-Ho City, Taipei Hsien 235,
Taiwan
Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899
service@globalsat.com.tw
www.globalsat.com.tw
User's Manual
V0.5
1
USGlobalSat Incorporated
1308 John Reed Court, City of Industry, CA
91745
Tel: 626.968.4145 / Fax: 626.968.4373
sales@usglobalsat.com
www.usglobalsat.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR-203 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Globalsat TR-203

Summary of Contents for Globalsat TR-203

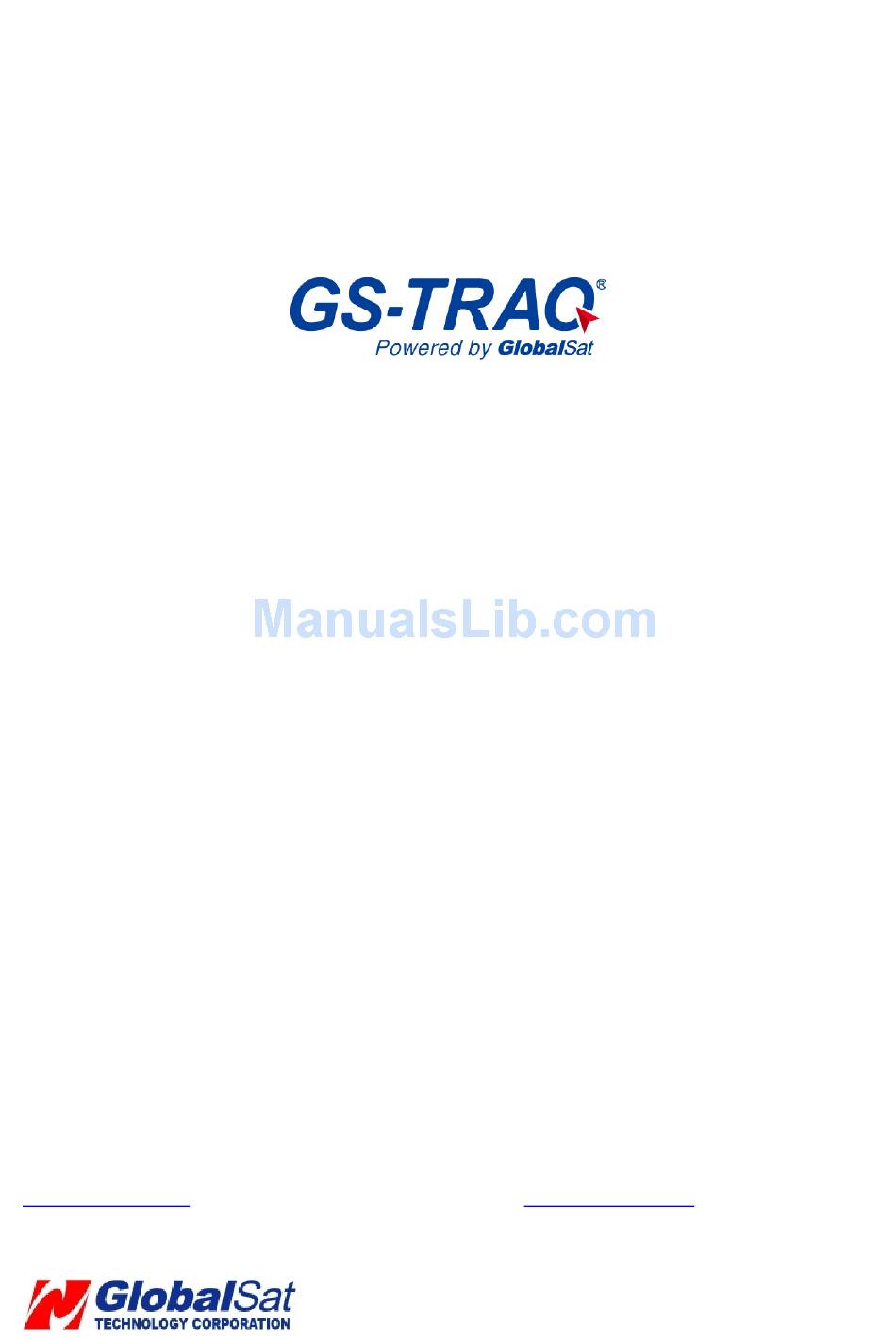

  • Page 1 TR-203 Personal Tracker User’s Manual V0.5 Globalsat Technology Corporation USGlobalSat Incorporated 16F., No. 186, Jian-Yi Road, Chung-Ho City, Taipei Hsien 235, 1308 John Reed Court, City of Industry, CA Taiwan 91745 Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899 Tel: 626.968.4145 / Fax: 626.968.4373 service@globalsat.com.tw...

  • Page 2: Document History

    Globalsat Technology Corporation or USGlobalsat, Inc. Globalsat/USGlobalsat hereby grants the right to download one (1) copy of this manual onto a hard drive for personal use. This manual is copyrighted and may contain proprietary information that is subject to change without...

  • Page 3: Table Of Contents

    5.5 Set up SOS parameters.......................21 5.6 TR-203 Ping........................23 5.7 TR-203 Periodic Report.....................24 5.8 TR-203 Motion Report ......................25 5.9 Stop TR-203 Periodic or Motion Report................26 5.10 Geo-fence Function......................27 5.11 Editing login profile and e-mail ..................31 5.12 TR-203 SIM card replacement..................32 5.13 History data information look up..................35 6.

  • Page 5: Warning

    USE RESPONSIBLY. READ ALL INSTRUCTIONS AND SAFETY INFORMATION BEFORE USE TO AVOID INJURY. Globalsat Technology Corporation / USGlobalsat, Inc. will not accept any responsibility whatsoever for accidents resulting from failure to observe common sense precautions. Your personal judgment, traffic regulations, and common sense must always take precedence over any directions produced by GPS receiver or the mapping software.

  • Page 6: Welcome

    In addition to its tracking abilities, the unit incorporates a wide array of custom configurations for users with unique needs. In result, the TR-203 tracker’s versatility can be used for many tracking applications.

  • Page 7: Introduction And Features

    3. Introduction and Features 3.1 Introduction TR-203 is a personal tracking device with fast acquisition time. It is compact, portable and stylish in design with GPS / GSM / GPRS wireless network. User can easily remotely configure TR-203, and then displays the location on Globalsat Web Service.

  • Page 8: Led Indicators

    Battery power is low GPS LED Blink Quickly (Once per second) Blink Slowly (Once every 3 seconds) State TR-203 does not get GPS fix TR-203 gets GPS fix GSM LED Blink Quickly (Once per second) Blink Slowly (Once every 3 seconds)

  • Page 9: Device Operation

    2. Allow a 4 hour battery charge time. (TR-203 in power-off condition) Using the USB cable charge method: 1. Connect TR-203 to its supplied USB to Mini-USB cable to PC or Notebook. (Computer requires to be “ON”) 2. Allow a 4 hour battery charge time. (TR-203 in power-off condition)

  • Page 10: Sim Card Installation

    You could take out the SIM card by lightly pressing the SIM card with your nail. Note: Refer to your mobile phone manual to disable the SIM PIN entry function by your mobile phone . Note: Before installing or taking out SIM card, please power off TR-203.

  • Page 11: Power

    To turn the device “ON”, press and hold the power button until you feel the device vibrating. To turn the device “OFF”, press and hold the power button until you feel the device vibrating. 4. Device Operation (Continued) 4.3 Emergency button Shortly press the emergency button to make TR-203 connect to Free Web Service.
  • Page 12 Press and hold the emergency button until you feel the device vibrating. TR-203 will send the emergency report to the preset phone number or the free web service website. Note: .Please set the SOS parameters on free web service website before using emergency...

  • Page 13: Use The Carry Bag

    4. Device Operation (Continued) 4.4 Use the carry bag For human use, wear the carry bag on the belt like the picture above. For pet use, wear the carry bag like the picture above.

  • Page 14: Free Web Service

    After putting TR-203 in the carry bag, you could take out it by pressing on the bottom of the bag and pushing outward TR-203 according to the direction on the picture. 5. Free Web Service 5.1 Preparation for Use Website ...

  • Page 15: Account Creation

    5. Free Web Service (Continued) 5.2 Account creation Please turn on your web browser and go to http://traq.gstraq.com/ Next, click the Register hyperlink. Read Agreement, check I Agree, and click Next button.
  • Page 16 5. Free Web Service (Continued) Check the preparation again and click Next button. Select TR-203 for Device Type, your Time Zone, enter Device IMEI and Serial No., select your Country code, enter Device Phone Number, Device Name, and click Next button.
  • Page 17 5. Free Web Service (Continued) Create your login profile by entering User Name, Password, and Email, and click Next button. Please print this page or write down your User Name, Password and click “Click to start Setup” button.
  • Page 18 Please select your country and telecom operator. Selecting your telecom operator will bring out the concerning GPRS parameters. If you do not find your telecom operator in the pull-down menu or the information in the pull-down menu is incorrect, please click “User Define”. And then please contact your telecom operator about the GPRS parameter.
  • Page 19 If TR-203 has received the setup SMS from the system, it will vibrate indicating that it has accepted the command. We suggest you to hold TR-203, so that you could feel the vibration when it receives the command. If TR-203 does not receive Setup SMS after 5 minutes, you can resend again.

  • Page 20: Add Device In Your Account

    5. Free Web Service (Continued) 5.3 Add device in your account Perform the following: Setup  Add New Device Then please refer to 5.2 Create Account to enter the concerning information of the device After adding the required information and sending out the SMS, you could switch to use separate device by selecting in the Device pull-down menu on the upper of the webpage.

  • Page 21: Set Up Sos Parameters

    5.5 Set up SOS parameters SOS Phone Number 1. Perform the following: Setup  Setup SOS Number 2. Enter destination phone number to receive emergency SMS. 3. Please click Send button. 4. Next, go to Setup SOS Other Parameter...
  • Page 22 SOS Time Zone 1. Select SOS Time Zone and SOS Report Type 2. Click Send button. 3. Then please call TR-203. TR-203 will not answer the phone call but connect to this website. Note: .The content of SOS report includes GPS fix date and time. The GPS date and time will...

  • Page 23: Tr-203 Ping

    If the TR-203 is not in Periodic report mode or Motion mode, you may contact the device by calling it from your phone. The TR-203 will not answer the phone call, but, it will hang up the call automatically. Then, the TR-203 will connect to the website and report its physical location.

  • Page 24: Tr-203 Periodic Report

    TR-203 is not in Periodic report mode or Motion mode, you may contact the device by calling it from your phone. TR-203 will not answer the phone call but hang up it automatically. Then, TR-203 will communicate to the website and...

  • Page 25: Tr-203 Motion Report

    TR-203 is not in Periodic report mode or Motion mode, you may contact the device by calling it from your phone. TR-203 will not answer the phone call but hang up it automatically. Then, TR-203 will communicate to the website and...

  • Page 26: Stop Tr-203 Periodic Or Motion Report

    5.9 Stop TR-203 Periodic or Motion Report Disable Periodic or Motion Reporting Select Setup Report Mode on the menu bar. Select Stop Report in the pull-down menu of Report Command Click Send button. TR-203 will stop periodic and motion report.

  • Page 27: Geo-Fence Function

    5. Free Web Service (Continued) 5.10 TR-203 Geo-fence Function Setup Geo-fence area 1. Select Setup on the menu bar. 2. Select Setup Geo-fencing Parameter. 3. Click on Map Define...
  • Page 28 Then you could enter a specific address or city or landmark in the field of Address Search and then click Go button. Map will move to the entered location. For example, the map will show as below after entering Washington D.C. Please move the cursor and click on the two points of the map to form a geo-fence area like the screenshot below.
  • Page 29 And then click Send button to send out the setting. Please call TR-203 for connecting to the website for getting the setting. The steps above are for setting geo-fence area. You have to enable the geo-fence function by the steps below.
  • Page 30 And then click Send button to send out the setting. Please call TR-203 for connecting to the website for getting the setting.

  • Page 31: Editing Login Profile And E-Mail

    5. Free Web Service (Continued) 5.11 Editing login profile and e-mail 1. Select Setup  User Information 2. Click Edit. Edit the content and click OK button.

  • Page 32: Tr-203 Sim Card Replacement

    5. Free Web Service (Continued) 5.12 TR-203 SIM card replacement When replacing telecom operator’s SIM card from the original, be certain, to change phone number on the website. Select Setup Device Information Next, enter new phone number and click the OK button.
  • Page 33 5. Free Web Service (Continued) In the case, a different telecom operator’s SIM card is desired to replace the original SIM card, then, perform the following steps to alter the phone number and GPRS parameters on the website. Select Setup Device Information Next, enter new phone number and click the OK button.
  • Page 34 If you have not send SMS by Free Web Service over 3 times, proceed to Setup  Send Setup SMS Auto Mode. Click Send button Free web service provides 3 pieces of free SMS for configuring TR-203. If you want to change the configuration after sending 3 pieces of free SMS, please go to Setup  Send Setup SMS...

  • Page 35: History Data Information Look Up

    5. Free Web Service (Continued) 5.13 History data information look up Free Web Service could store up to 10000 reports from your TR-203. Otherwise, the 10001 report will replace 1 report and so on. That is to say, if TR-203 periodically reports its location to website every 1 minute, website can store the reports of 7 days.
  • Page 36 Note: If the value of GPS fix is No Fix, the point will not be displayed on the map. Only 2D and 3D Fix data will be displayed. After clicking View Map Mode button, please click any piece of report to show it on the map.
  • Page 37 You will see the window below. Please click Save and then select the location you want to save the file. In addition, you may also view the last TR-203 25 points by selecting Show Last 25 Points on the menu bar.
  • Page 38 Users have the ability to click on any point to view detailed information.

  • Page 39: Contact Information

    6. Contact Information Globalsat Technology Corporation (Taiwan) USGlobalsat, Inc. (North America) www.globalsat.com.tw www.usglobalsat.com service@globalsat.com.tw sales@usglobalsat.com (pre-sales GPS product questions only) (pre-sales GPS product questions only) Technical Support (North America) See our DOWNLOADS and FAQ section on our web-site for GPS driver updates.

  • Page 40: Limited Warranty

    END OF THIS DOCUMENT ACCORDING TO THE COUNTRY OR REGION IN WHICH THE PRODUCT PURCHASE TOOK PLACE. Globalsat/ USGlobalsat’s warranty obligations for this hardware product are limited to the terms set forth below: Globalsat/ USGlobalsat, as defined below, warrants this hardware product against defects in materials...
  • Page 41 Globalsat/ USGlobalsat and becomes Globalsat/ USGlobalsat’s property. If a defect arises and a valid claim is received by Globalsat/ USGlobalsat after the first one hundred and eighty (180) days of Warranty period, a shipping and handling charge may apply to any repair or exchange of the product undertaken by Globalsat/ USGlobalsat.

  • Page 42: Limited Warranty (Continued)

    IMPORTANT: Do not open the hardware product. Opening the hardware product may cause damage that is not covered by this warranty. Only Globalsat/ USGlobalsat or an authorized service provider should perform service on this hardware product. TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, STATUTORY, EXPRESS OR IMPLIED.
  • Page 43 Globalsat/ USGlobalsat and you agree to follow instructions, including, if requires, arranging the return of the product or part to Globalsat/ USGlobalsat in a timely manner. When providing RMA service requiring the return of the original product or part, Globalsat/ USGlobalsat may require credit card authorization as security for the retail price of the replacement product or part and applicable shipping costs.

  • Page 44: Fcc Notices

    Globalsat/ USGlobalsat may repair or exchange defective products and parts with comparable products and parts that comply with local standards. In accordance with applicable law, Globalsat/ USGlobalsat may require that you furnish proof of purchase details and/ or comply with the registration requirements before receiving warranty service.
  • Page 45 radio communications. However, there is no guarantee that interference will not occur in a particular 9. FCC Notices (Continued) installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ...

  • Page 46: Ieee 1725

    10. IEEE 1725 -Do not disassemble or open crush, bend or deform, puncture or shred -Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids, expose to fire, explosion or other hazard. -Only use the battery for the system for which it is specified -Only use the battery with a charging system that has been qualified with the system per this standard.
