- Page 1 AVL Tracking System TR-600 V0.2 Globalsat Technology Corporation USGlobalSat Incorporated 16F., No. 186, Jian-Yi Road, Chung-Ho City, Taipei Hsien 235, Taiwan 1308 John Reed Court, City of Industry, CA 91745 Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899 Tel: 626.968.4145 / Fax: 626.968.4373 service@globalsat.com.tw sales@usglobalsat.com...
-
Page 2: Table Of Contents
3 Free Web Service..........................14 3.1 Preparation for Use Website....................14 3.2 Account creation ........................14 3.3 Account creation ........................18 3.4 Delete device from your account ..................18 3.5 Set up SOS Parameters ....................19 3.6 Set up Digital Output ......................20 3.7 TR-600 Motion report......................21... -
Page 3: Introduction

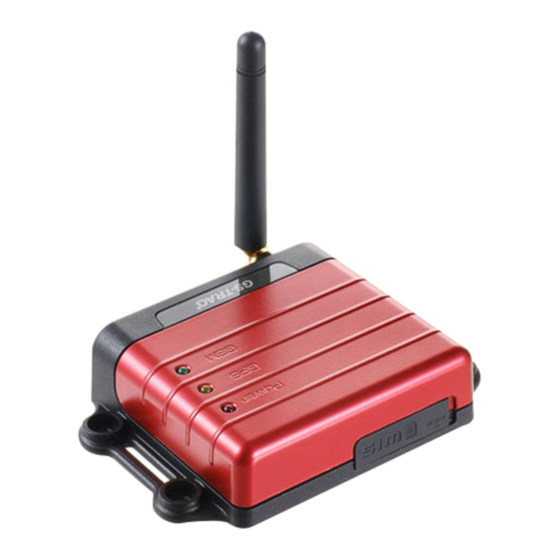

It integrates high sensitivity GPS system and quad-band 850/900/1800/1900 MHz GSM system into a compact mechanism. TR-600 is enclosed into a solid housing for simple installation. It provides real time GPS positions anytime and anywhere in the open sky and offers the precise position and vehicle status to back-end server or controller’s cell phone to handle/ display/ calculate the necessary... -
Page 4: Hardware Architecture
1.3 Hardware Architecture GPS antenna GSM antenna MODEM USART/ RS-232 Analog Motion Li backup Digital Digital Input Sensor Battery input output... -
Page 5: Hardware Specification
1.4 Hardware specification Item Description Dimension 98 mm X 65 mm X 22 mm High performance line ARM-base 32-bit MCU GPS receiver SiRF Star III high performance GPS chipset -30℃ ~ + 80℃ Temperature Operation -40℃ ~ + 85℃ Storage GPS Antenna SMA Type connector Active antenna ( 3.3~3.8V) -
Page 6: Appearance
1.5 Appearance Peripheral interface port I/O port Power Status LED GPS LED GSM LED For fixing device with screws GSM antenna connector For fixing device with belt GPS antenna connector SIM card holder... -
Page 7: Led Indicator
GPS not fix GPS fix GSM LED (Green) Permanently off Fast blinking (Once Slow blinking (Once every 1 second) every 3 seconds) State GSM off TR-600 is TR-600 is registered searching GSM full service network SIM card is registering to GSM network... -
Page 8: Cable Description
1.7 Cable description 14 Pin I/O Cable Wire Color Description Green/ White Analog Input_1 White Digital Output 3 (Negative Trigger) Gray Digital Output 1 (Negative Trigger) Purple Digital Input 3 (Positive Trigger) Blue Digital Input 1 (Negative Trigger) Black Ground Main Power Green Digital Output 2 (Negative Trigger) - Page 9 8 Pin Cable Wire Color Description Pink Receiver Blue Receiver Serial-1_5V White Receiver White Receiver Black (3 Pieces) Ground Orange Receiver Green Transmission 1...
-
Page 10: Accessories
1.8 Accessories Main Unit GPS Antenna GSM Antenna 14 Pin I/O Cable 8 Pin Cable RS-232 Cable (Option) CD (User manual, driver) -
Page 11: Operation
To eject SIM card, simply, use your finger nail and apply slight pressure. Note: Refer to your mobile phone manual to disable the SIM PIN entry function by your mobile phone. Note: Before installing or taking out SIM card, please power off TR-600. -
Page 12: Install The Gps And Gsm Antenna
2.2 Install the GPS and GSM antenna Install the GSM antenna to the GSM antenna connector on the left part of the back side and GPS antenna to the GPS antenna connector on the right part of the back side tightly. Please refer to the photo above. - Page 13 2.3 Install the Emergency button There is a line of the 14 pin IO cable for connecting push button for emergency help. One end of the button must be connected to the SOS line and the other end must be connected to the ground line.
-
Page 14: Free Web Service
SIM card. • Disable the SIM PIN entry of the SIM card via mobile phone. • Tracker IMEI and serial number information can be found on the bottom of TR-600. 3.2 Account creation Please turn on your web browser and go to http://traq.gstraq.com/ Next, click the Register hyperlink. - Page 15 Check the preparation again and click Next button. 圖待網站更新 (目前為 TR-203 與 TR-151) Select your Time Zone, enter Device IMEI and Serial No., select your Country code, enter Device Phone Number, Device Name, and click Next button. Create your login profile by entering User Name, Password, and Email, and click Next button.
- Page 16 Please print this page or write down your User Name, Password and click “Click to start Setup” button. Please select your country and telecom operator. Selecting your telecom operator will bring out the concerning GPRS parameters. If you do not find your telecom operator in the pull-down menu or the information in the pull-down menu is incorrect, please click “User Define”.
- Page 17 Please click Send button. 圖待網站更新 (目前為 TR-203 與 TR-151 畫面)
-
Page 18: Account Creation
3.3 Account creation Perform the following: Setup Add New Device Then please refer to 3.2 Create Account to enter the concerning information of the device After adding the required information and sending out the SMS, you could switch to use separate device by selecting in the Device pull-down menu on the upper right corner of the webpage. -
Page 19: Set Up Sos Parameters
3.5 Set up SOS Parameters SOS Phone Number 1. Perform the following: Setup Setup SOS Number 2. Enter destination phone number to receive emergency SMS. 3. Please click Send button. 4. Next, go to Setup SOS Other Parameter SOS Time Zone 1. -
Page 20: Set Up Digital Output
2. Click Send button. 3. Then please copy the SMS and send it to the phone number of TR-600 by your mobile phone. Note: .The content of SOS report includes GPS fix date and time. The GPS date and time will be according to the setting of SOS Time Zone. -
Page 21: Tr-600 Motion Report
Select Active to activate that digital output or Disactive to deactivate that digital output in the pull-down menu of Out Status. Click Send button. Then please copy the SMS and send it to the phone number of TR-600 by your mobile phone 3.7 TR-600 Motion report Select Setup Report Mode on the menu bar. - Page 22 Select Setup Report Mode on the menu bar. Select Stop Report in the pull-down menu of Report Command Click Send button. TR-600 will stop motion report. Then please copy the SMS and send it to the phone number of TR-600 by your mobile phone...
- Page 23 3.9 TR-600 Geo-fence Function Setup Geo-fence area 1. Select Setup on the menu bar. 2. Select Setup Geo-fencing Parameter. 3. Click on Map Define...
- Page 24 4. Then you could enter a specific address or city or landmark in the field of Address Search and then click Go button. Map will move to the entered location. For example, the map will show as below after entering Washington D.C. Please move the cursor and click on the two points of the map to form a geo-fence area like the screenshot below.
- Page 25 And then click Send button to send out the setting. Then please copy the SMS and send it to the phone number of TR-600 by your mobile phone. It will make TR-600 connect to the website for getting the setting.
- Page 26 And then click Send button to send out the setting. copy the SMS and send it to the phone number of TR-600 by your mobile Please phone. It will make TR-600 connect to the website for getting the command of enable...
- Page 27 Industry Canada statement: This device complies with RSS-132 & RSS-133 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
