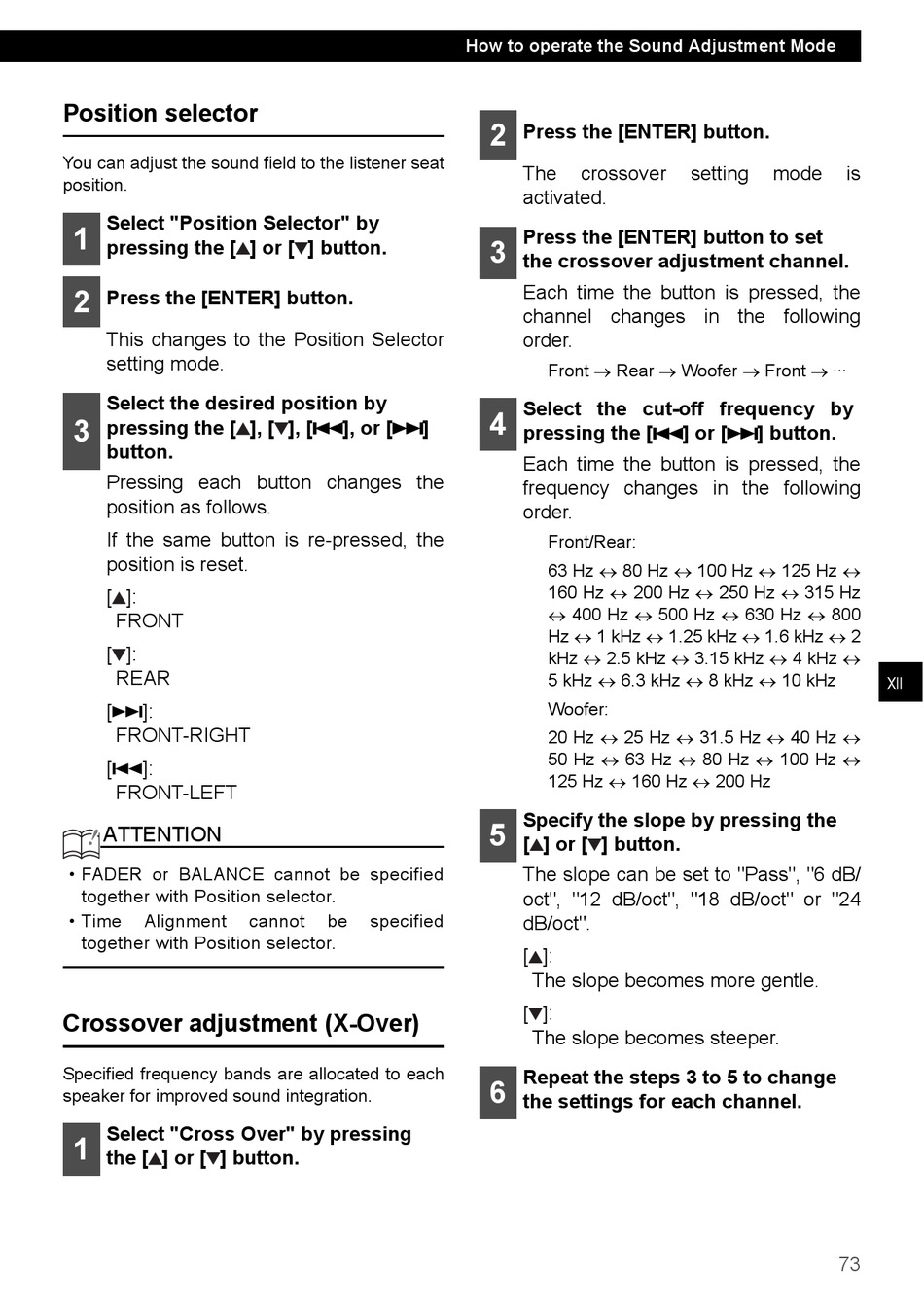

Position selector

You can adjust the sound field to the listener seat
position.
Select "Position Selector" by
1
pressing the [ ] or [ ] button.
2
Press the [ENTER] button.
This changes to the Position Selector
setting mode.
Select the desired position by
3
pressing the [ ], [ ], [<], or [>]
button.
Pressing each button changes the
position as follows.
If the same button is re-pressed, the
position is reset.
[ ]:
FRONT
[ ]:
REAR
[>]:
FRONT-RIGHT
[<]:
FRONT-LEFT
ATTENTION
• FADER or BALANCE cannot be specified
together with Position selector.
• Time Alignment
together with Position selector.

Crossover adjustment (X-Over)

Specified frequency bands are allocated to each
speaker for improved sound integration.
Select "Cross Over" by pressing
1
the [ ] or [ ] button.
cannot be specified
How to operate the Sound Adjustment Mode
2
Press the [ENTER] button.
The crossover
activated.
Press the [ENTER] button to set
3
the crossover adjustment channel.
Each time the button is pressed, the
channel changes in the following
order.
Front → Rear → Woofer → Front →
Select the cut-off frequency by
4
pressing the [<] or [>] button.
Each time the button is pressed, the
frequency changes in the following
order.
Front/Rear:
63 Hz ↔ 80 Hz ↔ 100 Hz ↔ 125 Hz ↔
160 Hz ↔ 200 Hz ↔ 250 Hz ↔ 315 Hz
↔ 400 Hz ↔ 500 Hz ↔ 630 Hz ↔ 800
Hz ↔ 1 kHz ↔ 1.25 kHz ↔ 1.6 kHz ↔ 2
kHz ↔ 2.5 kHz ↔ 3.15 kHz ↔ 4 kHz ↔
5 kHz ↔ 6.3 kHz ↔ 8 kHz ↔ 10 kHz
Woofer:
20 Hz ↔ 25 Hz ↔ 31.5 Hz ↔ 40 Hz ↔
50 Hz ↔ 63 Hz ↔ 80 Hz ↔ 100 Hz ↔
125 Hz ↔ 160 Hz ↔ 200 Hz
Specify the slope by pressing the
5
[ ] or [ ] button.
The slope can be set to "Pass", "6 dB/
oct", "12 dB/oct", "18 dB/oct" or "24
dB/oct".
[ ]:
The slope becomes more gentle.
[ ]:
The slope becomes steeper.
Repeat the steps 3 to 5 to change
6
the settings for each channel.
setting mode is
