Owner's Manual

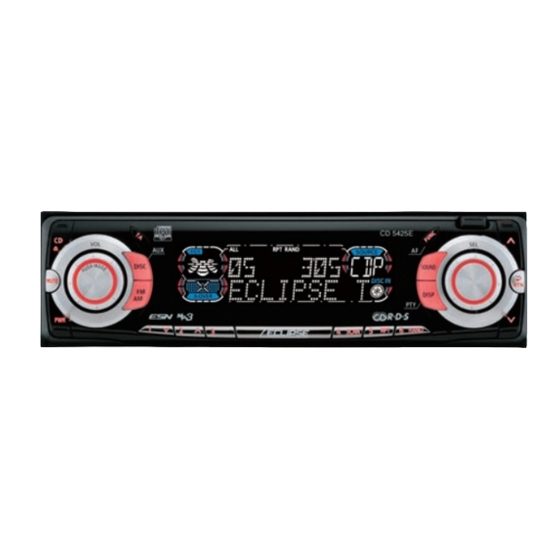

Excellent Sound Quality CD/Memory Stick Receiver with MP3/WMA
INSTALLATION MANUAL
Be sure to read this installation manual thoroughly before carrying out installation and making
connections. If installation methods or non-standard parts that are not specified in this installation
manual are used, accidents or injury may result.
Professional installation is recommended, contact the place of purchase to schedule an appointment.
After reading the owner's manual and the installation manual thoroughly, keep them in a safe place for
later reference.
To dealers:
Give this installation manual to the customer after installation and connections have been completed.
Contents
Contents
Components
Before
installation
For your safety in using the CD8445E or CD5425E
Names and functions of terminals
Connections
System connection example
Installation
Installing the main unit
MODEL
Superb Sound Quality CD Receiver with MP3
MODEL
2
3
4
6
7
Advertisement
Table of Contents
Related Manuals for Eclipse CD 5425E
Summary of Contents for Eclipse CD 5425E
-
Page 1: Installation Manual
Excellent Sound Quality CD/Memory Stick Receiver with MP3/WMA MODEL Superb Sound Quality CD Receiver with MP3 MODEL INSTALLATION MANUAL Be sure to read this installation manual thoroughly before carrying out installation and making connections. If installation methods or non-standard parts that are not specified in this installation manual are used, accidents or injury may result. - Page 2 Components Components Check that all of the following components are present Check that all of the following components are present Main unit components Main unit x 1 Interconnecting cable Mounting sleeve Side bracket (Power and speaker connector) (16P) x 1 Bezel Hex-head bolt Flat head screw...
- Page 3 Also, do not deviate from the installation procedures • described herein; Eclipse will not be held liable for damages To avoid equipment and vehicle damage, including fire, including, but not limited to serious injury, death or property...
-
Page 4: Names And Functions Of Ter Minals
Names and functions of ter minals Names and functions of ter minals • Never cut the insulation on the power cable or use it to power any other equipment. If the rated current capacity of the power cable is exceeded, fire and electric shocks may result. •... -
Page 5: Main Unit Connections
Wire colours and connection points for connection cables Antenna power supply (Blue) Connect to the automatic-antenna control terminal of the vehicle. Control power supply (Blue/White) Connect the control terminal for the external amplifier, etc. Cellular phone mute Wire (Pink) Connect to the earth output terminal on a mobile phone. Earth (Black) Connect where good body earthing is available. - Page 6 System connection e xample System connection e xample • Never cut the insulation on the power cable or use it to power any other equipment. If the rated current capacity of the power cable is exceeded, fire and electric shocks may result. •...
-
Page 7: Installing The Main Unit
Installing the main unit Installing the main unit - Installation angle - Front To maintain proper function, the unit must be mounted at less than 30 degrees. If the angle is in excess of 30 degrees, CD skipping or ejection may occur. - Page 8 - Main unit installation example (If installing the main unit using the side brackets of the vehicle) - • Carefully bind any excess length of cord that is connected to the main unit and secure it to an Centre cluster panel area of empty space in the vehicle so that it does not move around or get caught in the main unit or Pocket, etc...
