Eclipse CD5433 Owner's Manual

Esn e5 high-power cd receiver with multi control and remote
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CD5433
MODEL
ESN E5 High-Power CD Receiver with
Multi Control and Remote

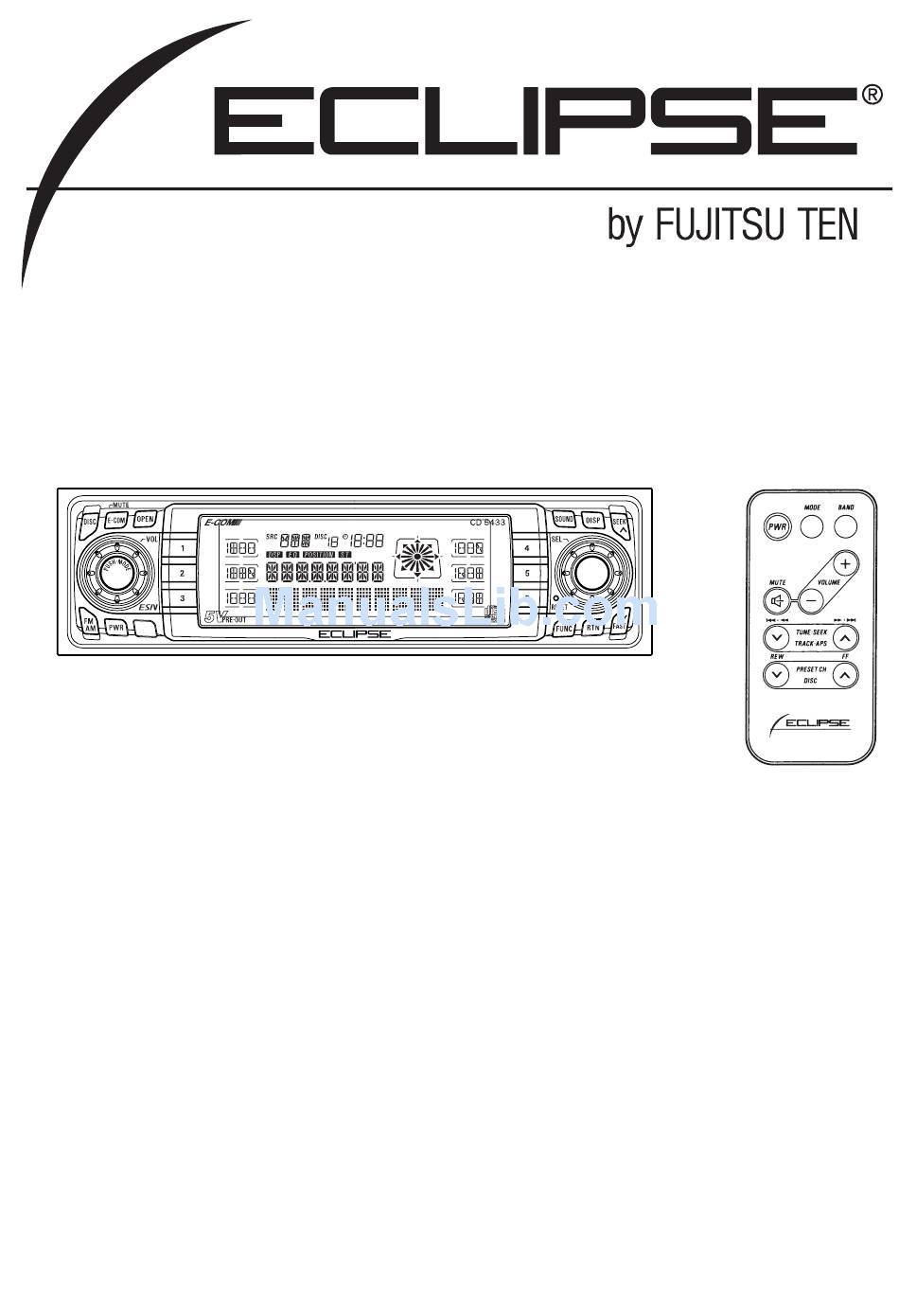

OWNER'S MANUAL
We appreciate your purchase of this receiver.
Please read through this manual for correct operation.
We suggest that after reading it you keep this manual
in a safe place for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Eclipse ECLIPSE CD5433

Summary of Contents for Eclipse ECLIPSE CD5433

  • Page 1 CD5433 MODEL ESN E5 High-Power CD Receiver with Multi Control and Remote OWNER'S MANUAL We appreciate your purchase of this receiver. Please read through this manual for correct operation. We suggest that after reading it you keep this manual in a safe place for future reference.
  • Page 2 For your safety in using the CD5433 Warnings and caution signs, illustrated below, are posted throughout this manual as well as on the CD5433. They show safe and correct ways to handle the product so as to prevent personal injury to you and others and avoid damage to property. Before reading through the manual, take time to read through and learn the important information listed in this section.
  • Page 3 Warning • Do not place the vinyl storage bag over a person. It may cause a serious accident or death by suffocation. • Do not adjust the controls while driving the car. To adjust the controls, stop the car in a safe location. •...
  • Page 4 Warning • To prevent a short circuit from occurring, disconnect the battery's negative terminal before installing this product. Otherwise, an electric shock or injury may result. • When using an existing nut and/or bolt from the vehicle to ground this product, do not use any that secure parts of the steering or braking systems.
  • Page 5 Caution • Play the audio at a moderate volume level that permits you to hear sounds from outside the car. Driving without being able to hear outside sounds may result in an accident. • Keep foreign objects out of the disc slot. They may cause fire or electrical shock.
  • Page 6 Caution • Avoid installing this product in places where it may get wet, such as near windows, or in places that are moist or dusty. Presence of liquid, moisture or dust inside this product can cause short circuiting, resulting in smoke or fire. •...

  • Page 7: Table Of Contents

    Table of Contents Operating precautions..........10 Notes on operation ...............10 About compact discs ..............11 About cleaning a CD ..............13 Names of controls and parts ........14 ESN (Key CD) security operating procedure ..15 How to program the Key CD ............15 How to cancel the Key CD ............16 How to change the Key CD ............17 How to resume normal operation (ESN security lock out)....17 What happens if an incorrect CD is inserted? ......18...
  • Page 8 How to operate the MP3 player ........43 About MP3..................43 Listening to MP3 file ..............46 Advancing to the next track (file) or returning to the beginning of the track (file) being played ............47 Skipping to the next or previous folder .........47 Return to the root directory of the CD ..........47 Playing the beginning of files (SCAN) ..........48 Repeating the same file (REPEAT)..........48...
  • Page 9 How to operate the receiver with an optional CD changer connected..........70 Listening to a CD................70 Advancing to the next track or returning to the beginning of the track being played ..............70 Fast Forward/Rewind ..............70 Playing the beginning of tracks (SCAN) ........71 Repeating the same track (REPEAT)...........71 Playing tracks in random order (RANDOM) .........72 Skipping to the next or previous CD..........72...

  • Page 10: Operating Precautions

    Operating precautions Operating precautions <Your CD5433 will perform well over a long period of time through correct handling and care.> Notes on operation • For your safety, play only at volume levels that allow outside sounds to be heard. • We recommend using with this player a disc with the logo shown to the left.

  • Page 11: About Compact Discs

    Operating precautions About compact discs • The signal recorded on a compact disc is read by a laser beam, so nothing touches the disc surface. A scratch on the recorded surface or a badly warped disc may cause deteriorated sound quality or intermittent playback.
  • Page 12 Operating precautions About brand new CDs About CD accessories • You may notice that some brand • Do not use accessories new discs are rough around the (stabilizers, protective seals, laser center hole or outside edge. lens cleaners, etc.) sold for Remove the rough edges with “improving sound performance”...

  • Page 13: About Cleaning A Cd

    Operating precautions About borrowed CDs About irregularly-shaped CDs • Do not use a CD with glue or • Specially-shaped CDs, like remnants of adhesive tape or heart-shaped or octagonal CDs, labels. They may cause the CD cannot be played. Do not to get stuck inside or damage attempt to play them, even with the deck.

  • Page 14: Names Of Controls And Parts

    Names of controls and parts Names of controls and parts Front view With the front open Never place an object or rest your hands or the like on the front panel. Caution Switches disc modes and switches to AUX mode. [DISC] button [E-COM] button* Activates and deactivates mute.

  • Page 15: Esn (Key Cd) Security Operating Procedure

    ESN (Key CD) security operating procedure ESN (Key CD) security operating procedure Button [6] [FUNC] button How to program the Key CD Check that the Power is OFF. Press and hold button [6], then the [FUNC] button, and hold both for more than one second. A [SEC] message appears, then in two seconds it will change to [DISC].

  • Page 16: How To Cancel The Key Cd

    ESN (Key CD) security operating procedure Button [6] [FUNC] button How to cancel the Key CD Turn OFF the Power. Press and hold button [6], then the [FUNC] button, and hold both for more than one second. A [SEC] message appears, then in two seconds it will change to [DISC].

  • Page 17: How To Change The Key Cd

    ESN (Key CD) security operating procedure How to change the Key CD First, cancel the existing Key CD. Refer to “How to cancel the Key CD.” Next, program a new Key CD. Refer to “How to program the Key CD.” How to resume normal operation (ESN security lock out) If power is disconnected while ESN security is active (a Key CD was...

  • Page 18: What Happens If An Incorrect Cd Is Inserted

    ESN (Key CD) security operating procedure Button [6] [FUNC] button What happens if an incorrect CD is inserted? An [ERR] message will be appear, then change to a flashing [DISC], then the CD will be ejected. You will have five uninterrupted attempts to insert the correct After the 5th incorrect attempt, the display reads [HELP].

  • Page 19: How To Turn The Security Indicator On/Off

    ESN (Key CD) security operating procedure Button [2] Button [4] [FUNC] button How to turn the security indicator on/off Once ESN security is activated, the indicator flashes whenever the vehicle’s ignition is turned off, warning potential thieves that the unit is protected.

  • Page 20: Basic Operation

    Basic operation Basic operation [PWR] button This section covers basic operating procedures. For additional details, please refer to the sections on specific functions. Turning the power on and off Turning the power on and off. When the power is turned on, the state used when the power was turned off such as CD and tuner playing is restored.

  • Page 21: Listening To A Cd

    Basic operation [OPEN] button [DISC] button Listening to a CD Press the [OPEN] button. The front panel opens. Insert a CD into the disc slot, label side up. The CD will immediately start playing. When a CD is already loaded, press the [DISC] button to switch to the CD mode.

  • Page 22: Listening To The Tuner

    Basic operation Buttons [1] to [6] [SEEK ] button [SEL] button [FM AM] button [FAST ] button Listening to the tuner Press the [FM AM] button. This will turn the tuner on. Press the [FM AM] button to switch to the desired FM or AM bands.

  • Page 23: Adjusting Audio Volume

    Basic operation [E-COM] button [AUDIO CONTROL] button Adjusting audio volume Turn the [AUDIO CONTROL] button to the left or right. Turn to the right: Increases the volume. Turn to the left: Decreases the volume. Press the [E-COM] button for more than one second if E-COM is connected and less than one second if E-COM is not connected ATTENTION to cut the volume or restore it instantly.

  • Page 24: Switching Audio Control Modes

    Basic operation [AUDIO CONTROL] button Switching audio control modes Various audio control modes may be fine-tuned using this procedure. Press the [AUDIO CONTROL] button for less than one second to select the item to be adjusted. Modes will switch in the order shown below each time the button is pressed.

  • Page 25: Enabling The Loudness Control

    Basic operation [AUDIO CONTROL] button BAL (BALANCE) Mode Adjusts left/right speaker balance. Turn the [AUDIO CONTROL] button to the left or right. Turn to the right: Emphasizes right speakers. Turn to the left: Emphasizes left speakers. FAD (FADER) Mode Adjusts front/rear speaker balance. Turn the [AUDIO CONTROL] button to the left or right.

  • Page 26: Making Changes With Display Adjustment Mode

    Basic operation [DISP] button [SEL] button [RTN] button Making changes with Display Adjustment Mode This function allows adjustment of display contrast and changing illumination colors. Press the [DISP] button. Enters Display Adjustment Mode. Contrast adjustment Adjust the display contrast to the best level in accordance with the angle of viewing.

  • Page 27: Making Changes With Function Mode

    Basic operation [SEL] button [FUNC] button Making changes with Function Mode A variety of settings can be changed. Press the [FUNC] button. The function mode is activated. Turn [SEL] button in either direction to display setting items for selection. Setting items will be displayed in the following order when the [SEL] button is turned to the right.
  • Page 28 Basic operation [SEL] button [FUNC] button [RTN] button Disabling the guide tone feature (for button operation) The receiver is set at the factory to emit a beep tone in response to button operation. The guide tone feature may be disabled in the following procedure: Turn [SEL] button to select GUIDE TONE.

  • Page 29: Setting The Time

    Basic operation [SEEK ] button [SEL] button [FUNC] button [RTN] button [FAST ] button Setting the Time This receiver uses the 12-hour display notation. Turn [SEL] button to select CLOCK ADJ. Press the [SEL] button. The clock adjustment mode is activated. Turn [SEL] button to display the item to be selected for adjustment.

  • Page 30: Making Changes With Sound Adjustment Mode

    Basic operation [SOUND] button [SEL] button Making changes with Sound Adjustment Mode Used to adjust acoustic feature in the vehicle. Press the [SOUND] button. The sound adjustment mode is activated. Turn [SEL] button in either direction to display setting items for selection. Setting items will be displayed in the following order when the [SEL] button is turned to the right.
  • Page 31 Basic operation [SOUND] button [SEL] button [RTN] button SETTING BASS/TREBLE These modes adjust bass (low sounds) and treble (high sounds). Turn [SEL] button to select BASS/TREB. Press the [SEL] button. The BASS/TREB setting mode is activated. Turn [SEL] button to select BASS/TREB. Press the [SEL] button.
  • Page 32 Basic operation [SOUND] button [SEL] button [RTN] button Disabling the Cross Over (NF) function Here, the LPF (low-pass filter) to the non-fader pre-out can be switched ON and OFF. Since the low-pass filter passes only lower ranges (higher ranges are cut off), efficient playback is enabled by cutting off mid to higher range elements not needed for a woofer.

  • Page 33: Others

    Basic operation [E-COM] button [OPEN] button Others Enabling E-COM feature Press the [E-COM] button for one second. Pressing the button will switch the E-COM feature on or off. Adjustment of the front panel angle Press and hold the [OPEN] button for more than one second.

  • Page 34: How To Operate The Cd Player

    How to operate the CD player How to operate the CD player [DISC] button First press the [DISC] button to switch to the disc mode. It is assumed here that a CD has already been loaded into the unit. Listening to CDs Press the [DISC] button.

  • Page 35: Advancing To The Next Track Or Returning To The Beginning Of The Track Being Played

    How to operate the CD player Button [4] [SEEK ] button [SEL] button [FAST ] button Advancing to the next track or returning to the beginning of the track being played Turn the [SEL] button to the left or right. Turn to the right: Advances to the next track.

  • Page 36: Repeating The Same Track (Repeat)

    How to operate the CD player Buttons [5] and [6] Repeating the same track (REPEAT) Press button [5] to repeat the track being played. To cancel, press button [5] again. Playing tracks in random order (RANDOM) Press button [6] to play the tracks in random order. To cancel, press button [6] again.

  • Page 37: Ejecting The Disc

    How to operate the CD player [OPEN] button Ejecting the disc Press the [OPEN] button for less than one second. The front panel opens fully and ejects the disc. Remove the disc and press the [OPEN] button. The front panel returns to the angle before the disc ejection. If left alone for 15 seconds after the disc ejection, the front panel returns to the angle before the disc ejection after the BEEP sound.

  • Page 38: Creating A Title For A Cd

    How to operate the CD player [SEEK ] button [SEL] button [FUNC] button [RTN] button [FAST ] button Creating a title for a CD A CD title may be created, attached and displayed for your discs. If external CD changers are connected, a title for a CD will be created in the same way.
  • Page 39 How to operate the CD player Turn the [SEL] button to the left or right to select characters. Turn to the right: Advances the character forward in its type. Turn to the left: Moves the character backward in its type. [Upper-case alphabet characters] Initial value [A] [Right direction] A B C .

  • Page 40: Changing A Previously Set Title

    How to operate the CD player [SEL] button [FUNC] button [RTN] button [FAST ] button Changing a previously set title If external CD changers are connected, a previously set title for a CD will be changed in the same way. It is assumed here that the disc mode is selected.

  • Page 41: Deleting A Previously Created Title

    How to operate the CD player Button [6] [SEL] button [FUNC] button [RTN] button Deleting a previously created title If external CD changers are connected, a previously created title for a CD will be deleted in the same way. It is assumed here that the disc mode is selected.

  • Page 42: Displaying Cd Text

    How to operate the CD player [DISP] button Displaying CD TEXT Only the built-in CD player supports CD TEXT. It can not be displayed with the optional CD changer. If the CD came with a logo shown below, it is recorded with a disc title and track titles. These information will be displayed during playback.

  • Page 43: How To Operate The Mp3 Player

    How to operate the MP3 player How to operate the MP3 player MP3 files can only be played when E-COM is connected. About MP3 The making of MP3 files by recording from sources such as broadcasts, records, recordings, videos and live performances ATTENTION without permission from the copyright holder for uses other than personal enjoyment is prohibited.

  • Page 44: Format Of Discs

    How to operate the MP3 player Media Media capable of playing MP3 includes CD-ROM and CD-R discs. Compared to CD-ROM media commonly used for music discs, CD-R discs are fragile in high temperature/high humidity environments and one section of the CD-R may become incapable of playback. Fingerprints or scratches on the disc may prevent playback or cause skipping during playback.

  • Page 45: File Names

    How to operate the MP3 player File names Only files with the MP3 file extension ".mp3" can be recognized as MP3 and played. Be sure to save MP3 files with the ".mp3" file extension. The "MP" letters of the file extension will be recognized whether entered as uppercase letters or lowercase letters.

  • Page 46: Listening To Mp3 File

    How to operate the MP3 player [DISC] button Listening to MP3 file Press the [DISC] button. This starts MP3 file play. If an external CD changer is connected, each additional press of the [DISC] button will switch modes from CD changer 1 ➔ CD changer 2 ➔...

  • Page 47: Advancing To The Next Track (File) Or Returning To The Beginning Of The Track (File) Being Played

    How to operate the MP3 player [SEL] button Buttons [1] and [2] [RTN] button Advancing to the next track (file) or returning to the beginning of the track (file) being played Turn the [SEL] button to the left or right. Turn to the right: Advances to the next track (file).

  • Page 48: Playing The Beginning Of Files (Scan)

    How to operate the MP3 player Buttons [4] and [5] Playing the beginning of files (SCAN) Press button [4]. Press the button briefly to play just the first 10 seconds of each song for all the files in the same layer of the folder being played.

  • Page 49: Playing Files In Random Order (Random)

    How to operate the MP3 player [DISP] button Buttons [5] and [6] Playing files in random order (RANDOM) Press button [6]. Press the button briefly to randomly play the files in the same layer as the folder being played. Pressing the button until [ALL RANDOM] is displayed will randomly play the files in all the folders.

  • Page 50: How To Operate The Tuner

    How to operate the tuner How to operate the tuner [SEEK ] button [SEL] button [FM AM] button [FAST ] button First, press the [FM AM] button to start tuner operation. There are automatic and manual methods for setting stations in memory.

  • Page 51: Entering Stations Into Memory Automatically (The Automatic Preset Mode: Asm)

    How to operate the tuner Buttons [1] to [6] [SEL] button [FM AM] button Entering stations into memory automatically (The automatic preset mode: ASM) Press the [FM AM] button to switch to the desired FM or AM bands. Radio bands will switch from FM1 ➔ FM2 ➔ FM3 ➔ AM in order each time the button is pressed.

  • Page 52: Manually Setting Stations Into Memory

    How to operate the tuner Buttons [1] to [6] [SEL] button [FM AM] button Manually setting stations into memory This section covers the setting of stations in memory under the numbered buttons. Press the [FM AM] button to switch between FM and AM. Turn the [SEL] button to the right or left to tune to the station to be entered in memory.

  • Page 53: Preset Station Scan

    How to operate the tuner Buttons [1] to [6] [SEL] button Preset station scan This function enables reception of all the stations in the preset buttons for five seconds each. Press the [SEL] button for less than one second. [P SCAN] will appear at the display, and stations stored under preset buttons [1] through [6] will be played for five seconds each.

  • Page 54: Fm Reception Characteristics

    How to operate the tuner FM reception characteristics In general, FM has much better tonal quality than AM. However, FM and FM stereo reception encounter several characteristic problems not encountered with AM. FM is more difficult to receive than AM in a moving vehicle.

  • Page 55: Reception Area Of Fm Broadcasts

    How to operate the tuner RECEPTION AREA OF FM BROADCASTS A home receiver can catch weak FM stereo signals through the use of a tall, directional or ultra-sensitive antenna. In a moving vehicle, the area for good reception is limited because of varying conditions encountered while driving, including the types and heights of broadcast antenna structures, signal strength, engine noise, etc.

  • Page 56: How To Use The Card Remote Control

    How to use the Card remote control How to use the Card remote control Precautions in use of the remote control • Be careful when handling the control, especially because it is small and light. Dropping or striking it hard may damage it, wear out the battery or cause a malfunction.

  • Page 57: Turning The Power On/Off

    How to use the Card remote control [PWR] Remote-control button light receptor [+] button [-] button [MUTE] button Turning the power on/off When the power is turned on, the state used when the power was turned off such as CD and tuner playing is restored. Press the [PWR] button.

  • Page 58: Switching Playback Modes

    How to use the Card remote control [MODE] button [BAND] button Switching playback modes Press the [MODE] button. Press the button to switch modes in the following sequence: Tuner Disc How to play the tuner Select the tuner mode first. Selecting the FM/AM band Press the [BAND] button.

  • Page 59: Selecting Preset Stations

    How to use the Card remote control [BAND] button TUNE•SEEK ] buttons PRESET CH ] buttons Selecting a station (manually or automatically) A short press of the button will allow manual station tuning. Pressing for more than one second will start automatic tuning. Press the [ TUNE•SEEK ] button.

  • Page 60: Enabling The Optional E-Com Feature

    How to use the Card remote control [MUTE] button TRACK•APS ] buttons DISC ] buttons Advancing to the next track or returning to the beginning of the track being played Press the [ TRACK•APS ] button. ] button: Skips to the next track. ] button: Returns to the beginning of the track being played.

  • Page 61: Switching The Remote Control Settings

    How to use the Card remote control [SEL] button TRACK ] buttons [FUNC] button [RTN] button DISC ] buttons Switching the remote control settings Remote control functions can be switched to the three patterns. Press the [FUNC] button of the main unit. Turn [SEL] button to select REMOTE.

  • Page 62: Replacing The Battery

    How to use the Card remote control Replacing the battery To prevent accidents, store batteries out of the reach of children. If a child has swallowed one, consult a doctor Warning immediately. Use one CR2025 battery. On the back of the remote control, while pressing the locking knob on the battery slot cover toward your right, pull out the battery carrier with your fingernail.

  • Page 63: How To Use An Optional Nob Remote Control

    How to use an optional NOB remote control How to use an optional NOB remote control [AUDIO CONTROL] Remote-control button light receptor [MUTE] button [PWR] button Turning the power on/off When the power is turned on, the state used when the power was turned off such as CD and tuner playing is restored.

  • Page 64: Switching Playback Modes

    How to use an optional NOB remote control [BAND] button BAND MODE [MODE] button TRACK TUNE SEEK DISC E-COM MUTE ILLUMI Switching playback modes Press the [MODE] button. Press the button to switch modes in the following sequence: Tuner Disc How to play the tuner Select the tuner mode first.

  • Page 65: How To Play Cds

    How to use an optional NOB remote control [BAND] button BAND MODE TUNE•SEEK ] buttons TRACK TUNE SEEK DISC DISC ] buttons E-COM MUTE ILLUMI Selecting a station (manually or automatically) A short press of the button will allow manual station tuning. Pressing for more than one second will start automatic tuning.

  • Page 66: Illuminating The Nob Remote Control

    How to use an optional NOB remote control BAND MODE TRACK ] buttons TRACK TUNE SEEK DISC DISC ] buttons [E-COM] button E-COM MUTE ILLUMI [ILLUMI] button Advancing to the next track or returning to the beginning of the track being played Press the [ TRACK ] button.

  • Page 67: Switching The Remote Control Settings

    How to use an optional NOB remote control [SEL] button BAND MODE TRACK ] buttons TRACK TUNE SEEK DISC DISC ] buttons E-COM MUTE ILLUMI [FUNC] button [RTN] button Switching the remote control settings Remote control functions can be switched to the three patterns. Press the [FUNC] button of the main unit.

  • Page 68: Replacing The Battery

    How to use an optional NOB remote control Replacing the battery To prevent accidents, store batteries out of the reach of children. If a child has swallowed one, consult a doctor Warning immediately. Use two AA-size batteries. Remove the back cover of the remote control unit by gently pressing and sliding it in the direction indicated by the arrow.
  • Page 69 How to use an optional NOB remote control •Be extremely careful not to swallow the battery. •The battery life is approximately one year. If the remote Caution control unit does not operate correctly or if the button lamp gets dim, replace the batteries. •Be sure to orient the batteries correctly so that the positive and negative poles match the diagram.

  • Page 70: How To Operate The Receiver With An Optional Cd Changer Connected

    How to operate the receiver with an optional CD changer connected How to operate the receiver with an optional CD changer connected [DISC] button [SEEK ] button [SEL] button [FAST ] button This section covers the operation of an optional CD changer that is connected to the receiver.

  • Page 71: Playing The Beginning Of Tracks (Scan)

    How to operate the receiver with an optional CD changer connected Buttons [4] and [5] Playing the beginning of tracks (SCAN) Press button [4]. Pressing the button causes the changer to move up to the next track and play it for 10 seconds, then move up to the next track and play it for 10 seconds, and so on, on one CD, until the button is pressed again.

  • Page 72: Playing Tracks In Random Order (Random)

    How to operate the receiver with an optional CD changer connected Buttons [1] and [2] Buttons [5] and [6] Playing tracks in random order (RANDOM) Press button [6]. Pressing on the button causes the changer to play the tracks on the currently playing CD in random order. Hold the button until the [ALL RAND] display appears to play tracks from all of CDs loaded in the currently selected changer, in random order.

  • Page 73: Specifying A Cd To Play

    How to operate the receiver with an optional CD changer connected Buttons [1] to [6] [SEL] button Specifying a CD to play A CD of your choice is directly selectable out of the loaded discs. Press the [SEL] button for less than one second. Press a button from [1] to [6].

  • Page 74: How To Operate The Receiver With An Optional Dsp/Eq Unit Connected

    How to operate the receiver with an optional DSP/EQ unit connected How to operate the receiver with an optional DSP/EQ unit connected [SOUND] button [SEL] button [RTN] button How to operate the DSP functions The DSP feature adds reverberations to simulate ambience in different types of surroundings (room sizes).
  • Page 75 How to operate the receiver with an optional DSP/EQ unit connected [SEEK ] button [SEL] button [FAST ] button Fine-tuning an individual room-size mode Detailed adjustments are available in any of the room size modes. Select the room size. Refer to "Switching room sizes." Turn the [SEL] button to select the desired mode of adjustment.
  • Page 76 How to operate the receiver with an optional DSP/EQ unit connected Buttons [1] to [6] [SOUND] button [RTN] button Hold down a button, [1] to [6], for more than two seconds to preset a value. The preset value is overwritten by the value set using the above steps.

  • Page 77: How To Operate The Eq Functions

    How to operate the receiver with an optional DSP/EQ unit connected [SOUND] button [SEL] button [RTN] button How to operate the EQ functions The EQ functions enable level adjustments of various frequency groups for optimum listening conditions with a specific kind of music or musical instrument.
  • Page 78 How to operate the receiver with an optional DSP/EQ unit connected Buttons [1] to [6] [SOUND] button [SEEK ] button [SEL] button [RTN] button [FAST ] button Fine-tuning EQ functions Press the [SEL] button until the desired equalizer mode is displayed. Turn the [SEL] button to switch frequencies.

  • Page 79: Selecting An Equalizer Mode From Memory

    How to operate the receiver with an optional DSP/EQ unit connected Buttons [1] to [6] [SOUND] button [RTN] button Selecting an equalizer mode from memory Press a preset button to select the equalizer mode set in memory for the button. The buttons that set equalizer modes in memory are called preset buttons.

  • Page 80: Others

    Others Others [DISC] button Connecting Portable Audio Players to the AUX Jack Use a commonly available accessory cord with stereo mini-plug to connect the audio output jack (LINE) or headphone jack of a portable audio player to the AUX (auxiliary) jack of this system. Turn on the portable audio player and start its play function.

  • Page 81: If You Have A Question

    If you have a question: If you have a question: [RESET] button First check the items mentioned below before attempting to troubleshoot problems. If a problem occurs, for instance when the unit does not respond to any button presses, or the display doesn't work correctly, Caution press the [RESET] button using a sharp tool.

  • Page 82: Displayed Information (For Troubleshooting)

    If you have a question: Displayed information (for troubleshooting) The information listed in the chart below is displayed to show the status of the CD player and CD changer. Refer to the chart for the appropriate action. Information Code Table When "INFO "...
  • Page 83 If you have a question: Remedial action Refer Mode Problem Causes to take to page Is the volume control up sufficiently? Turn up the volume control. Is the muting function in effect Cancel the muting (MUTE)? (MUTE) function. Dead or Readjust the fader and Is the fader or balance control set far weak sound...
  • Page 84 If you have a question: Remedial action Refer Mode Problem Causes to take to page Is an extra label or seal Do not apply labels or seals The disc cannot be inserted. applied to the disc? to the disc. The disc is ejected as soon as it is insertaed.

  • Page 85: Specifications

    Specifications Specifications < > GENERAL Power Supply 14.4V DC (11-16V) Current Drain 3A MAX Dimensions (W x H x D) In-Dash Unit 7" x 2" x 6-1/8" (178 x 50 x 155mm) Mass (weight) Approx. 1.4kg < > FM TUNER Frequency Range 87.75~107.9MHz (200kHz step) Usable Sensitivity...

  • Page 86: Before Installation

    Before installation Before installation Note Be sure to disconnect the battery's negative terminal before installing the receiver. Components Item Q'ty Main unit Mounting sleeve Side bracket Rear bracket Bezel Bushing Self-tapping screw (6 x 16 mm) Stud bolt Flat head screw (5 x 8 mm) Hex-head bolt (5 x 20 mm) Hex nut (5 mm) Interconnecting cable...

  • Page 87: Installation Angle

    Before installation Installation angle In order to maintain proper functioning, install the unit within an angle of 30 degrees from horizontal (standard). If this is not done, sound skipping or ejection of the CD may occur. FRONT WITHIN AN ANGLE OF 30 DEGREES STANDARD...

  • Page 88: Mounting Instruction

    Mounting instruction Mounting instruction Mounting the main unit Insert the mounting sleeve into the opening in the vehicle console. Use a screwdriver or the like to bend the tabs in the mounting sleeve to secure the mounting sleeve. BEND THE MOUNTING TABS.
  • Page 89 Mounting instruction Mount the stud bolt to the main unit. Insert the main unit into the mounting sleeve until it locks in place. Fasten the rear of the main unit using either method [A] or [B]. Select method [A] or [B] to suit the interior configuration of the vehicle.

  • Page 90: Names Of Lead Wires And Destinations

    Mounting instruction Note To prevent unconnected leads from shorting out, insulate them by wrapping their tips with electrical tape. Similarly, insulate the ends of connected leads. If an external amplifier is to be connected to the receiver, be sure to ground its outside housing to the vehicle body (a metal part).

  • Page 91: System

    Mounting instruction System...
  • Page 92 Mounting instruction...
  • Page 93 Mounting instruction...
  • Page 94 Mounting instruction...
  • Page 95 Mounting instruction...
  • Page 96 M e m o • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •...
  • Page 97 IMPORTANT RECORD YOUR “KEY CD” HERE… STORE YOUR “KEY CD” ALONG WITH YOUR OWNER’S MANUAL IN YOUR SOCK DRAWER.
  • Page 98 Please retain this booklet and write in the serial number of your CD5433 for identification. The serial number is labeled or stamped on the chassis. Serial No. DIVISION OF FUJITSU TEN CORP. OF AMERICA 19600 SOUTH VERMONT AVENUE, TORRANCE, CA 90502 (310) 327-2151 090001-1443A700 0303 (Y.O)
