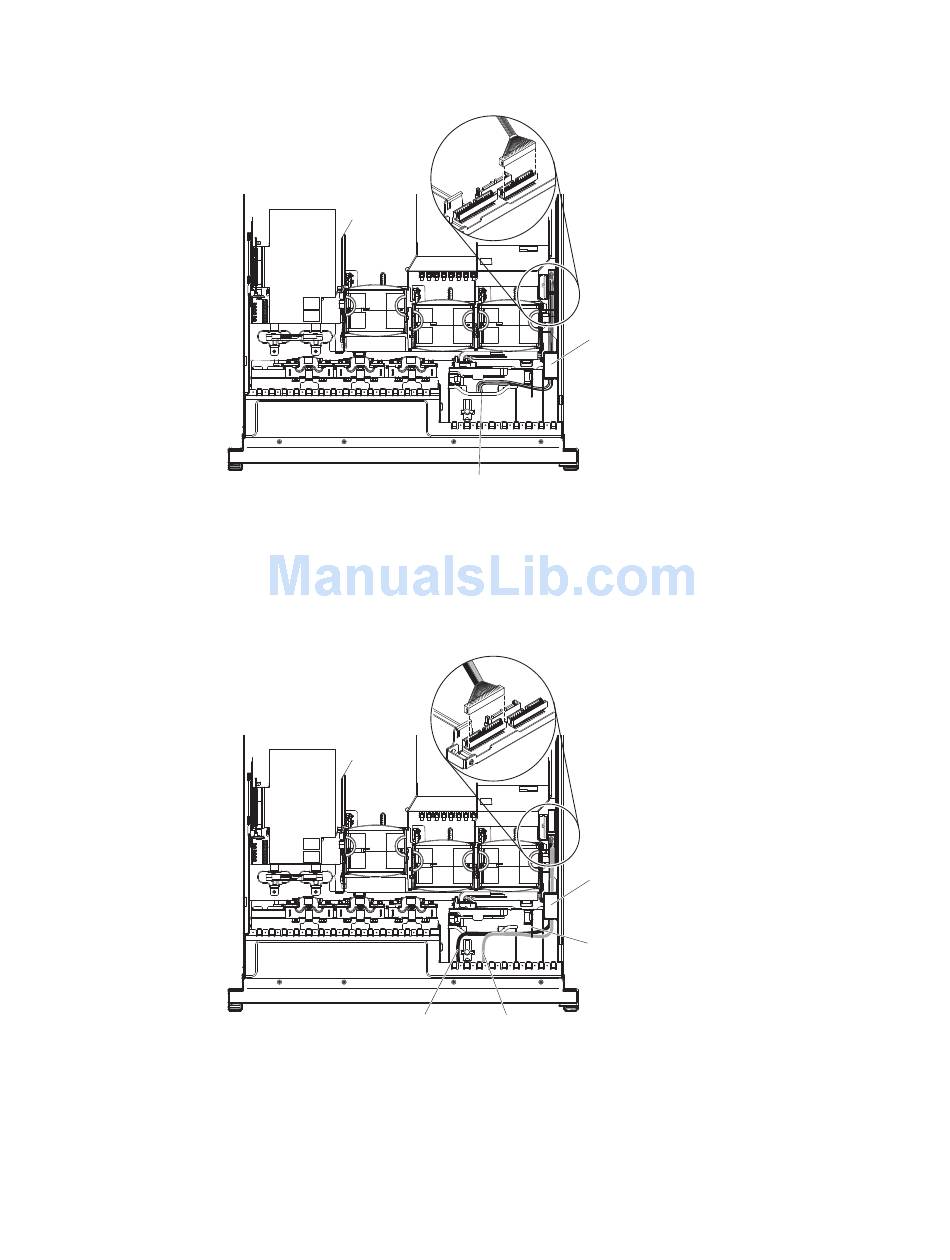

The following illustration shows the internal routing and connector for the operator
information panel cable.
The following illustration shows the internal routing and connector for the USB/video
cable.
Note: The USB cable is routed under the video cable and then both the USB and
video cables are routed under the cable retention tab and the top cover latch
receptacle.
40
System x3650 M2 Type 7947: Installation and User's Guide
Operator panel
cable
USB cable Video cable
Top cover latch
receptacle
Top cover latch
receptacle
Cable retention
tab
