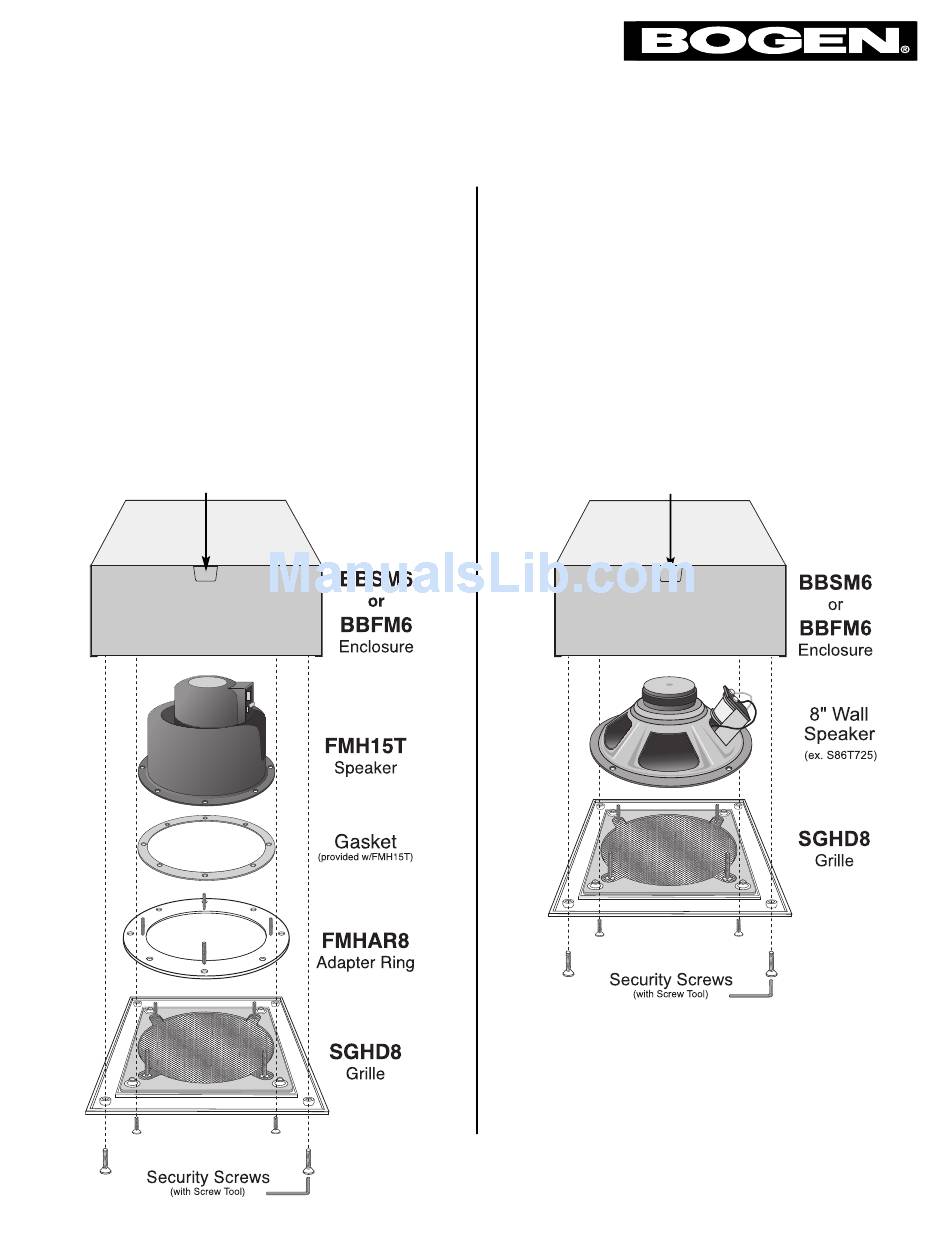

Models BBSM6, BBFM6, FMHAR8, & SGHD8
For use with FMH15T horn loudspeaker
1) Place gasket supplied with FMH15T onto FMHAR8 Adapter
Ring over the studs. Then mount FMH15T to FMHAR8
Adapter Ring, sliding flange hole over adapter ring studs and
secure with nuts supplied with adapter ring.
2) Slide FMH15T/FMHAR8 assembly over studs in SGHD8
Grille and secure with nuts supplied with grille.
3) Mount BBSM6 or BBFM6 enclosure as necessary.
4) Use 4 white security screws and tool supplied with SGHD8
Grille to mount the speaker/grille assembly onto the enclosure.
Wiremold
®
Knockouts
(only on BBSM6)
For use with 8" cone loudspeakers
1) Slide 8" cone speaker over studs in SGHD8 Grille and
secure with nuts supplied with grille.
2) Mount BBSM6 or BBFM6 enclosure as necessary.
3) Use 4 white security screws and tool supplied with SGHD8
Grille to mount the speaker/grille assembly onto the enclosure.
Wiremold
®
(only on BBSM6)
Wiremold
®
is a Registered Trademark of Wiremold/Legrand
Specifications subject to change without notice.
Knockouts
© 2005 Bogen Communications, Inc.
All rights reserved.
54-2136-01C 1211
