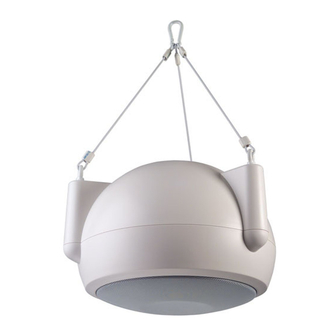

Bogen NEAR ORBIT OPS1 Installation And Use Manual
Bogen communications, in use manual speaker ops1
Hide thumbs
Also See for Bogen NEAR ORBIT OPS1:
- Specifications (4 pages) ,
- Installation and use manual (9 pages) ,
- Installation and use manual (9 pages)
Related Manuals for Bogen Bogen NEAR ORBIT OPS1
Summary of Contents for Bogen Bogen NEAR ORBIT OPS1
- Page 1 Orbit Pendant Speaker OPS1 Installation and Use Manual © 2003 Bogen Communications, Inc. All rights reserved. Specifications subject to change without notice. 54-2090-01A 0302 Printed in Taiwan.
-
Page 2: Product Description
Settings for both 70V and 100V high-impedance systems, as well as a low-impedance (16-ohm) position, are provided.Also, a conversion chart for speaker use in 25V sys- tems is provided in this manual. All ORBIT models feature a removable snap-lock input connector, providing easy... -
Page 3: Product Diagrams
OPS1 Rear Drawing 1. Snap-Lock Input Connector 2. Suspension Points (x3) 3. Safety Cable Suspension Point OPS1 Rear Drawing Package Contents (1) Orbit Pendant Speaker (1) Manual (1) Quick-Snap Clip (1) Snap-Lock Input Connector (3) Forged Eye Bolts (3) Nuts... -
Page 4: Installation
The OPS1 includes a safety cable suspension point for extra protection. The thread of the suspension point is a 1/4-20" x 1/2" thread. Bogen offers a cable kit as an optional accessory (CK10) that is suitable for use as the safety cable. -
Page 5: Speaker Wiring
If the connections to one speaker in a system are reversed from the others, that speaker’s movement will be out of sync with the other speakers.This will result in a loss of low frequency response and will effect the overall performance of the sys- tem. - Page 6 The fully counterclockwise position of the setting switch is the 16-ohm position.This setting is suitable for use with low-impedance amplifiers that typically support 4- or 8-ohm speakers.The speaker’s higher, 16-ohm impedance makes it easier to combine multiple speakers into series - parallel networks while keeping the total system impedance at a level suitable for low-impedance amplifiers.
-
Page 7: Specifications
Impedance Ratings Power Input (Max.) Power Settings (in watts) Enclosure Material Grille Material Terminations Product Weight Speaker Dimensions Included Accessories Optional Accessories Enclosure Finish & Color * Free Space Response, 16-ohm input † Front panel, switch-selected. " MDT Metal-Alloy Cone... -
Page 8: Warranty
Bogen believes may affect the reliability of the product, or where the serial number or date code has been removed or defaced.
