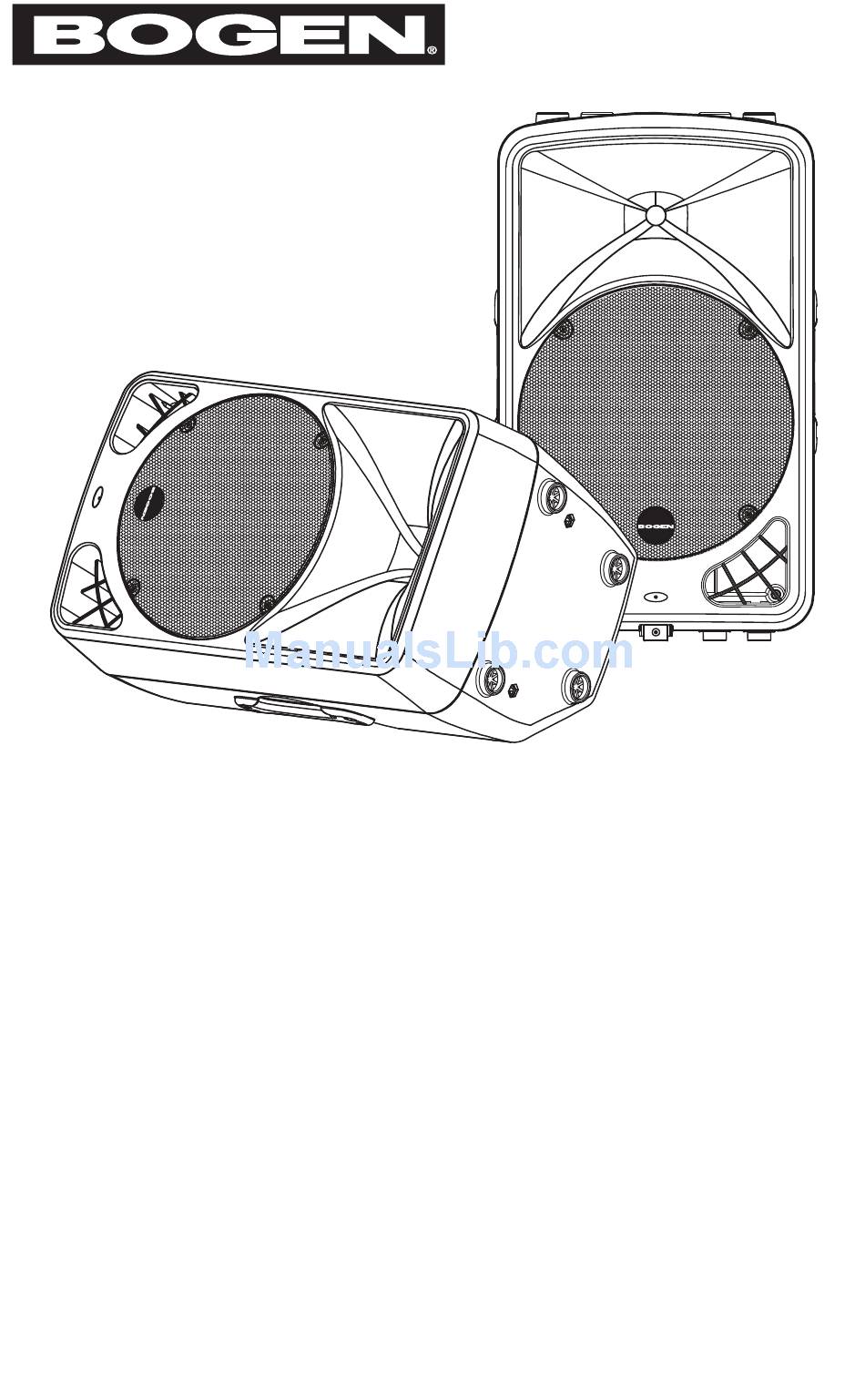

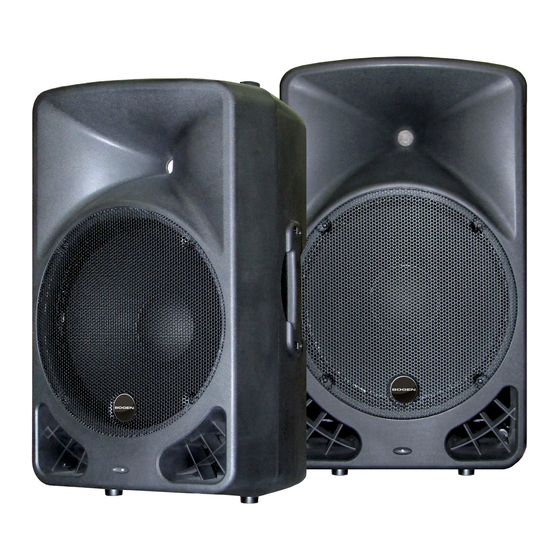

- Page 1 Bogen Pro BP15DSP & BP12DSP Powered Loudspeakers Installation and Use Manual © 2013 Bogen Communications, Inc. All rights reserved. Specifications subject to change without notice. 54-2218-01B 1308...
-
Page 2: Important Safety Instructions
NOTICE : Every effort was made to ensure that the information in this guide was complete and accurate at the time of printing. However, information is subject to change. WARNING: To reduce the risk of Fire or Electric Shock, Do Not Expose this apparatus to rain or moisture. -
Page 3: Quick Start
Enjoy your new Bogen Pro Powered Loudspeaker. Please be sure to read and follow instructions within this manual carefully before you begin operation. -
Page 4: Panel Description
Panel Description (4) (5) (6) FREQUENCY INPUT LINK VOLUME SIGNAL LIMIT BOOST FLAT (10) 0 dB POWER PIN 1 LINE (11) BP 15 DSP "WARNING" TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. SERIAL MODEL AC INPUT... -
Page 5: Wire Connections
Wire Connections For Powered Speaker Cabinets Audio connections are mostly intended for the signal flow. Determine the wire con- figuration needed for your real application. Typical options are: BALANCED TIP RING SLEEVE TIP RING SLEEVE Ring Ring Sleeve Sleeve TIP RING SLEEVE Ring Sleeve UNBALANCED... -
Page 6: Hookup Diagrams
Hook-Up Diagrams Single Speaker with Direct Microphone Input Sensitivity = “MIC”; Low Frequency = “CUT” MIC IN Two Speakers in Stereo Operation Input Sensitivity = “LINE” AUX OUT MAIN OUT CAM8PRO Threshold Ratio LINE IN LINE IN -6 -3 0 +3 Limit Headphone Power... - Page 7 Hook-Up Diagrams Multiple Speakers with the same Source Input Sensitivity = “LINE” BAL OUT VMIX MIXER / PRE-AMPLIFIER LINK LINK LINK LINK TO NEXT SPEAKER LINE IN LINE IN LINE IN LINE IN INPUT LINK INPUT LINK INPUT LINK VOLUME FLAT VOLUME FLAT...
- Page 8 Multi-Use Cabinet The BP15DSP/BP12DSP Loudspeaker cabinet provides suspension points for flown installation (M10 x 1.5PH, LENGTH:30mm). For further details, please refer to the illustration below. 6 Suspension Points for Rigging with Forged Eyebolts TOP: 2 Rigging Points BOTTOM: 2 Rigging Points REAR: 2 Rigging...
- Page 9 Multi-Use Cabinet BP15DSP/BP12DSP provides 45 angle when used on floor as a stage monitor. NOTE: When used as a stage monitor (or with a subwoofer), Low-Frequency switch should be set to “CUT”. BP15DSP/BP12DSP provides a Tripod Mount located in bottom of the speaker for raised use on tripods.
-
Page 10: Technical Specifications
Technical Specifications BP15DSP Loudspeaker System Type ........2-Way Powered Speaker Transducer Low ........15" Neodymium Woofer, 2.5" Voice Coil Transducer High........1" Compression Driver, 1.75" Voice Coil Horn Coverage (H ) ....90˚H x 45˚V ˚ ˚ Frequency Response ......45 Hz to 20 kHz with FLAT Crossover Frequency ......2.2 kHz-DSP Processor 12 dB/oct Max. -
Page 11: Limited Warranty; Exclusion Of Certain Damages
State to State. Products that are out of warranty will also be repaired by the Bogen Factory Service Department — same address as above or call 201-934-8500. The parts and labor involved in these repairs are warranted for 90 days when repaired by the Bogen Factory Service Department. - Page 12 50 Spring Street, Ramsey, NJ 07446 USA Tel. 201-934-8500 • Fax: 201-934-9832 www.bogen.com...
