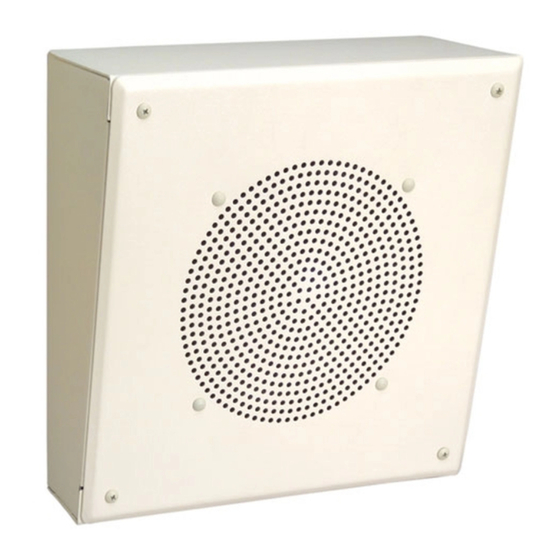

MB8TSL, MB8TSQ, MB8TSLVR, MB8TSQVR
70V/25V Metal Box Speakers
For Surface Mounting to Walls and Ceilings
Installation Instructions
Determine where the speaker(s) will be mounted. Ensure power is not connected to speaker wires prior to installation.
1.
Follow all local safety and building codes and route speaker wires to desired wall or ceiling location. Pull approximately
12" of wire through opening in mounting surface.
Pull speaker wire through the back of the large opening of the speaker enclosure. Using the supplied mounting hardware,
2.
secure the enclosure to the mounting surface. Note that two toggle bolts (for sheet rock surfaces) and two wood screws
(for securing to solid wood/beams) have been included. Utilize the two washers (supplied) as shown in Figure 1 with either
toggle bolts, wood screws, or other user supplied hardware.
Toggle bolts
(for sheet rock)

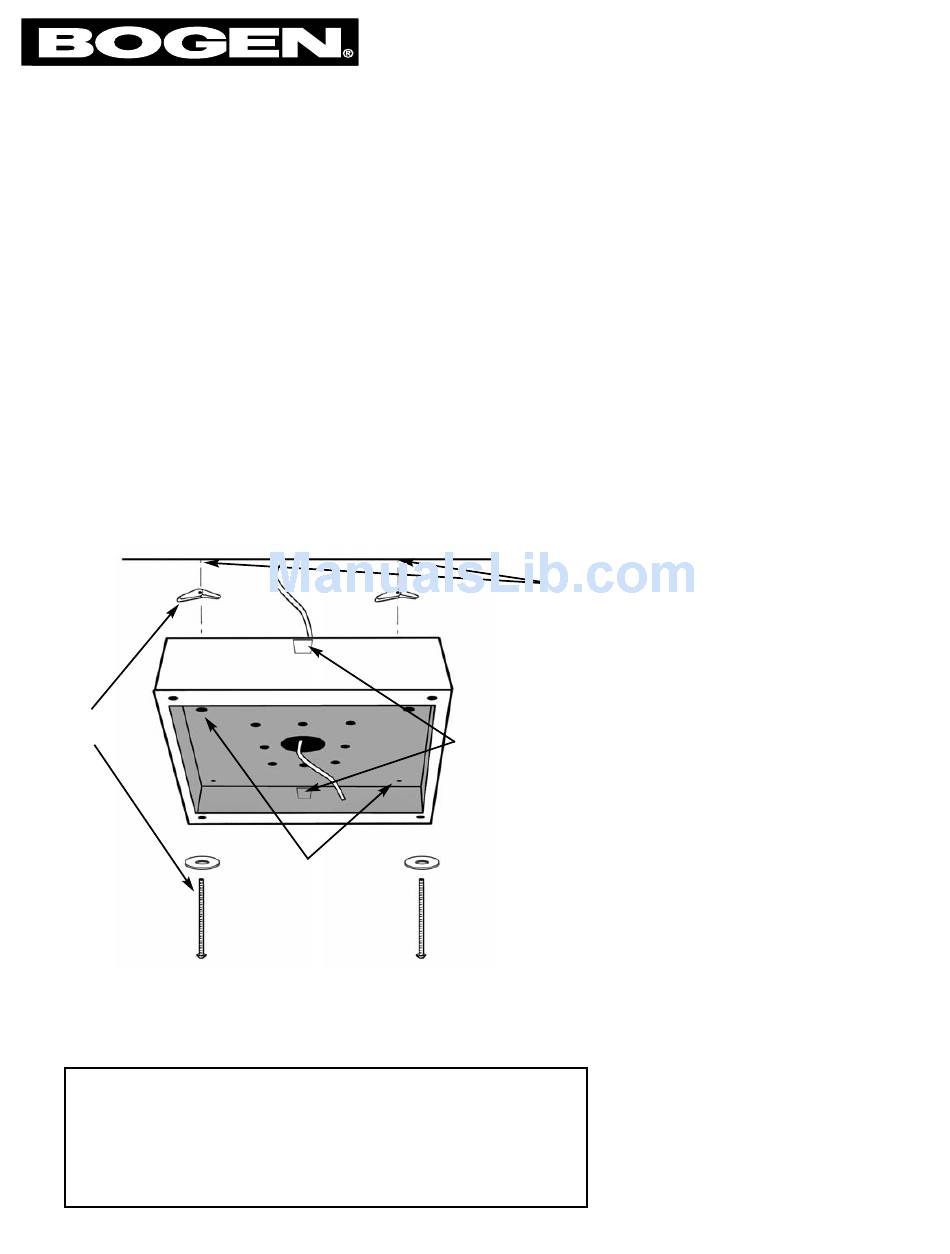

Figure 1 - Sheet rocked ceiling mount example
Package Contents:
• Back box enclosure
• Grille with speaker assembly
• Two crimp-type connectors
• Two toggle bolts
Ceiling
Enclosure
mounting holes
• Two wood screws
• Two washers
• Four 1" screws for attaching
grille assembly
Use two of the enclosure's mounting
holes as a template (diagonally
opposed), and mark screw hole
locations. If toggle bolts will be
used, drill two, 1/2" diameter holes
in the mounting surface, otherwise
drill a hole appropriate for hardware
being used.
®
Wiremold
Knockouts
© 2005 Bogen Communications, Inc.
Specifications subject to change without notice.
54-2135-01C
0809
