Bogen FG15 Technical Specifications

Background &
Foreground
Speakers
Models FG15 (B/W),
FG20S & FG30
The Bogen FG-Series of background and foreground speakers are designed to complement more sophisti-
cated music systems. Their wide bandwidth provides the performance demanded by customers while their
quality construction provides the reliability installer's can count on.
Description
The FG-Series is available in a variety of physical size and performance models to meet the needs of a wide
range of distributed music applications.

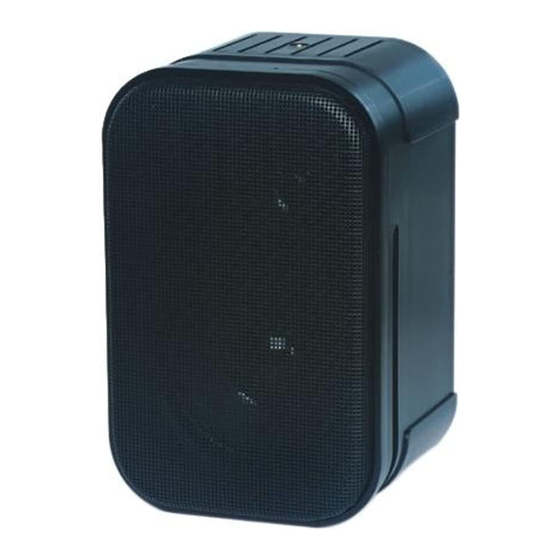

FG15B/W
The FG15B is black in color; the FG15W is eggshell white.The drivers consist of a 3" paper woofer and 3/4"
mylar tweeter. Both models of FG15 handle 15 watts @ 8 ohms or 1, 2, 4, 7.5 or 15 watts @ 70 volts.
FG20S
The FG20S is a black splashproof speaker, which can be used outdoors and exposed to low-pressure water
spray. It consists of a 5" poly woofer and 3/4" mylar tweeter. The FG20S is rated at 20 watts @ 8 ohms or
5, 10, 15, or 20 watts @ 70 volts. Corrosion-resistant stainless steel contacts and an epoxy-coated splash-
proof grille are incorporated for use in high humidity environments.
FG30
The FG30 is a black speaker consisting of a 5" paper woofer and a 3/4" mylar tweeter. The FG30 is rated at
30 watts @ 8 ohms or 10, 15, 20 or 30 watts @ 70 volts.
• Three models
• Smooth, wide frequency response for music or
voice
Features
• Compact, rugged plastic enclosures
• Individually sweep-tone tested to ensure reliability
FG20S, FG30
• Mounting brackets included
• Splashproof speaker (FG20S only)
• Black swivel mount available for FG20S and FG30
(not included)
FG15B
Specifications subject to change without notice.
© 2002 Bogen Communications, Inc.
Part No. 54-7867-02C 0610
