Summary of Contents for Bogen MPS1B

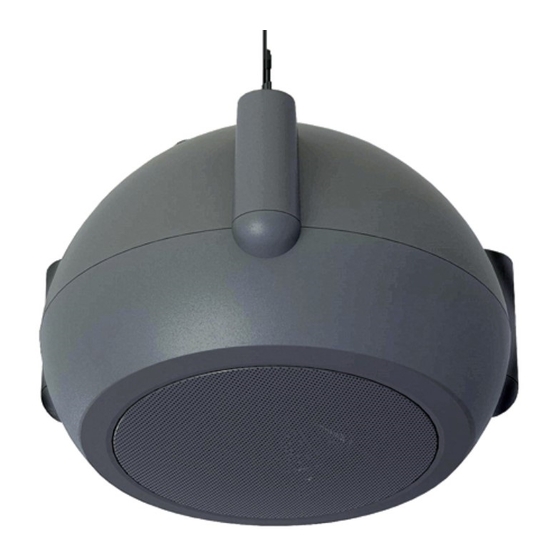

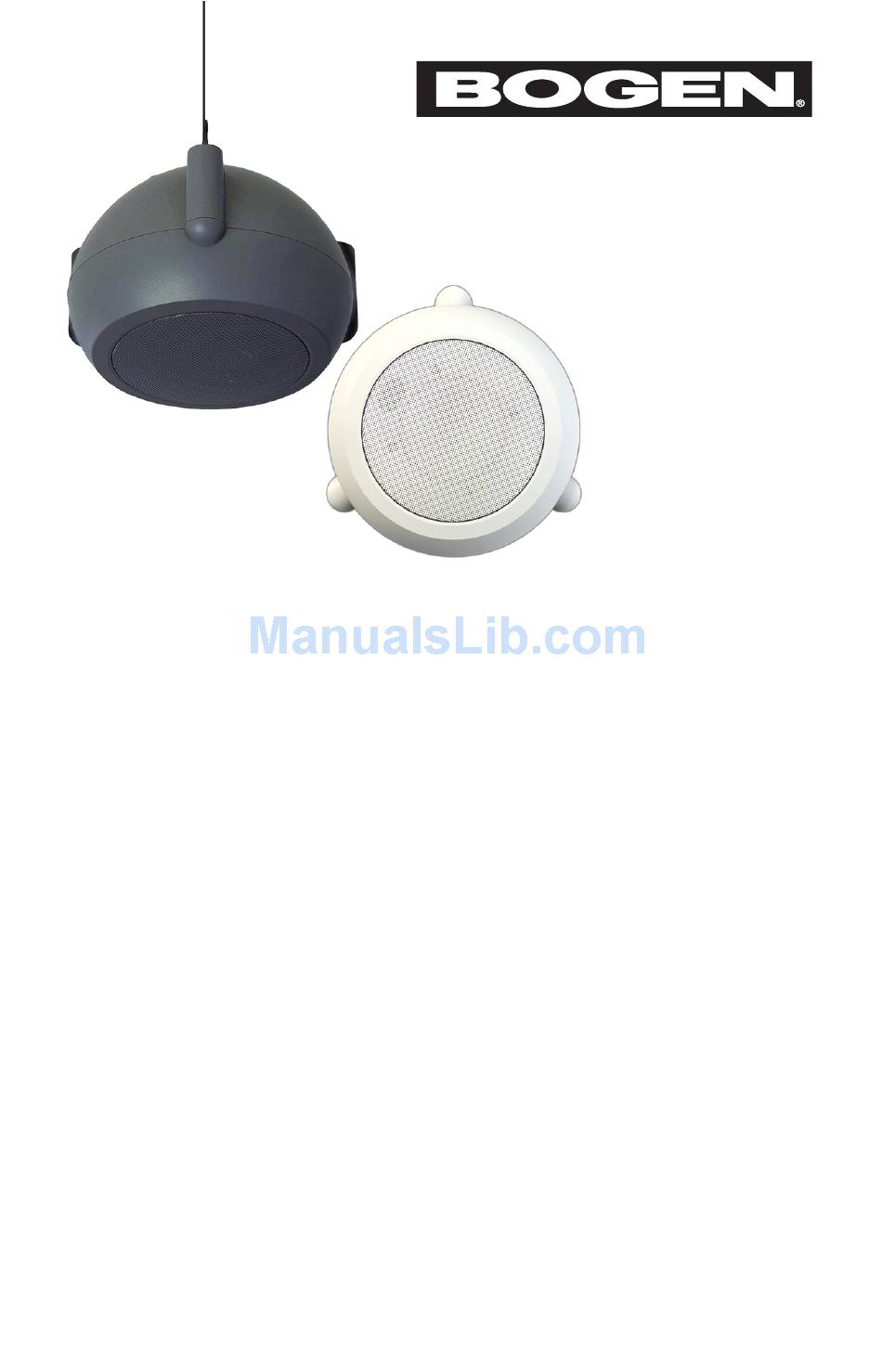

- Page 1 MPS1, MPS2 Mini Pendant Speakers Models MPS1B /MPS2B (Black) MPS1W / MPS2W (White) Installation and Use Manual © 2010 Bogen Communications, Inc. All rights reserved. Specifications subject to change without notice. 54-2194-01C 1307...
- Page 2 Power Tap Selection POWER TAP SELECTOR SWITCH 16-ohm or 70V The Power Tap selector switch is used to set the appropriate power level or impedance for your system. Rotate the switch until the power level you require lines up with arrow. IMPORTANT: When connecting to a 70V amplifier, make sure that the Tap Selector switch on the speaker IS NOT set in the “16Ω”...
- Page 3 MPS1/2 Speaker Cable Connections TO SPEAKER ANCHOR and Suspension Instructions POINT In addition to the Main suspension Drop Cable, a backup Safety Cable is required for proper installation. Use wire rope or other drop line rated for at least 100 lbs. to ensure a proper safety margin. The attachment point on the structure from which MAIN the speaker is to be anchored also must be able to...
-
Page 4: Technical Specifications
Limited Warranty; Exclusion of Certain Damages The Bogen MPS1 & MPS2 Mini Pendant Speakers are warranted to be free from defects in material or workmanship for two (2) years from the date of sale to the original purchaser. Any part of the product covered by this warranty that, with normal installation and use, becomes defective will be repaired or replaced by Bogen, at our option, provided the product is shipped insured and prepaid to: Bogen Factory Service Department, 50 Spring Street, Ramsey, NJ 07446, USA.
