Bogen FMH15T Assembly

Bogen fmh15t: install guide

Components Assembly

Models BBSM6, BBFM6, FMHAR8, & SGHD8

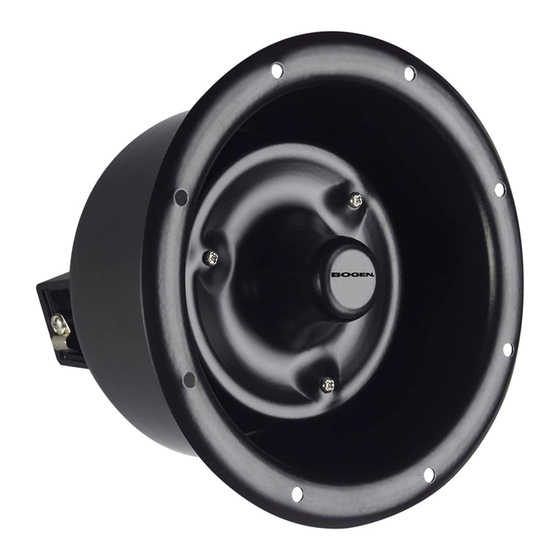

For use with FMH15T horn loudspeaker

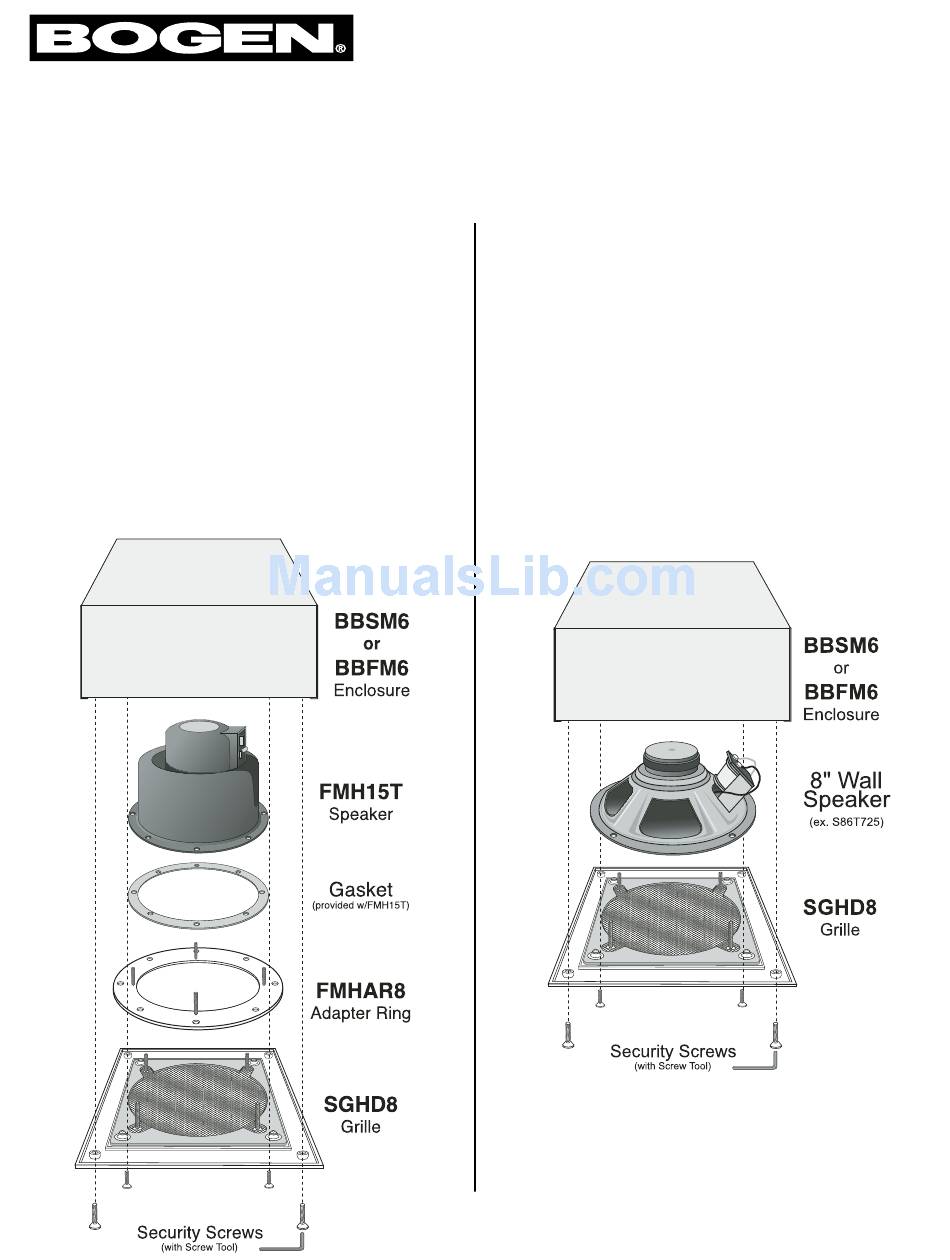

1) Place gasket supplied with FMH15T onto FMHAR8

Adapter Ring over the studs. Then mount FMH15T to

FMHAR8 Adapter Ring, sliding flange hole over adapter ring

studs and secure with nuts supplied with adapter ring.

2) Slide FMH15T/FMHAR8 assembly over studs in SGHD8

Grille and secure with nuts supplied with grille.

3) Mount BBSM6 or BBFM6 enclosure as necessary.

4) Use 4 white security screws and tool supplied with

SGHD8 Grille to mount the speaker/grille assembly onto

the enclosure.

For use with 8" cone loudspeakers

1) Slide 8" cone speaker over studs in SGHD8 Grille and

secure with nuts supplied with grille.

2) Mount BBSM6 or BBFM6 enclosure as necessary.

3) Use 4 white security screws and tool supplied with

SGHD8 Grille to mount the speaker/grille assembly onto

the enclosure.

Specifications subject to change without notice.

54-2136-01A 0505
