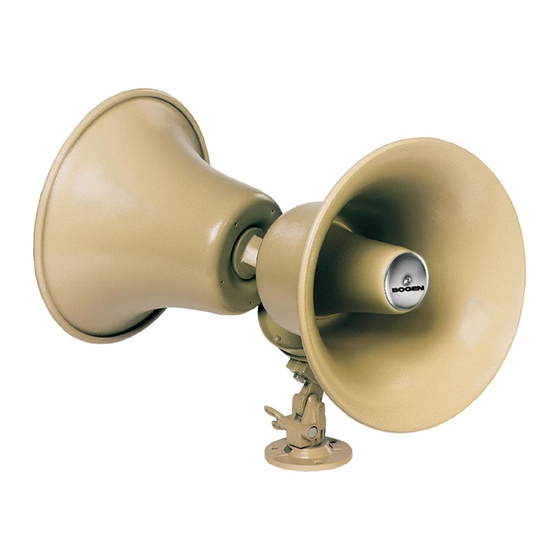

Bi-Directional
Reentrant Horn
Loudspeaker
Model BDT30A
The BDT30A is a compact loudspeaker designed for one- or two-way sound and communication systems.
Ideal for use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recre-
Description
ational areas.
Speaker assembly required.
• Twin reentrant horns for bi-directional projection
Features
• High intelligibility and efficiency
• Ideal for both one-way and talkback paging
applications
• Weatherproof
• Sturdy, all-metal construction
• 30 watts at 70V operation or 15 watts at 25V
operation
• Rotary tap impedance selector switch
• Screw terminals make installation fast and easy
• For indoor and outdoor use
• Uniquely designed all-purpose mounting bracket
for simple installation
• Self-aligning, field-replaceable diaphragm for easy
maintenance
Specifications subject to change without notice.
© 2006 Bogen Communications Inc. All rights reserved.
54-7761-02D 0703
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Bogen BDT30A
Summary of Contents for Bogen BDT30A
- Page 1 Bi-Directional Reentrant Horn Loudspeaker Model BDT30A The BDT30A is a compact loudspeaker designed for one- or two-way sound and communication systems. Ideal for use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recre- Description ational areas. Speaker assembly required.
- Page 2 Technical Specifications Impedance Selector Switch Settings: Sound Pressure Level in dB @ 1000Hz: The loudspeaker shall be a Bogen Model BDT30A, or approved equivalent, reentrant horn type loud- Architect & speaker. The frequency response shall be from Engineer 225Hz to 14kHz. Rated power output shall be 30 Specifications watts RMS continuous.
