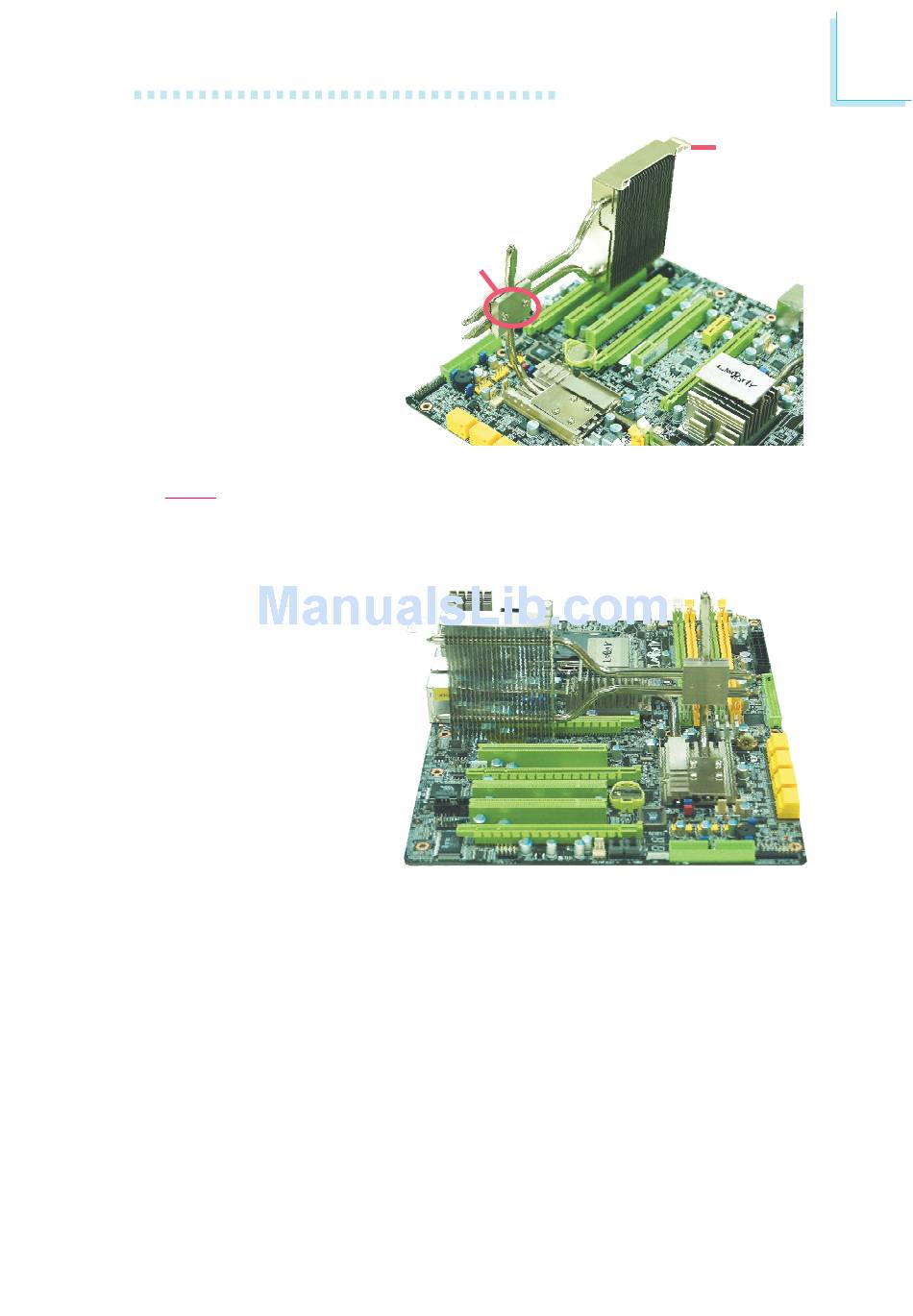

5. Coming from a side of
the board, inser t the
Transpiper under the
metal plate. Adjust the
Transpiper to an avail-
able expansion slot then
tighten its screws. The
right photo shows the
Transpiper on the PCI 3
slot.
Note:
Before you install the Transpiper, make sure the bracket side is facing
upward otherwise the Transpiper will not install properly.
6. The Transpiper can also
be installed from the
opposite side. The instal-
lation steps are the
same but make sure it is
the longer side of the
o
90 metal that is in-
ser ted into
Transpiper and
shorter side goes under
the metal plate. The right
photo shows
Transpiper on the PCIE
2 slot.
Screws
the
the
the
Hardware Installation
Bracket
2
