Brother T-8752C Parts Manual page 31

Twin needle direct drive split needle bar lock stitcher
Hide thumbs Also See for T-8752C:
Table of Contents

Advertisement

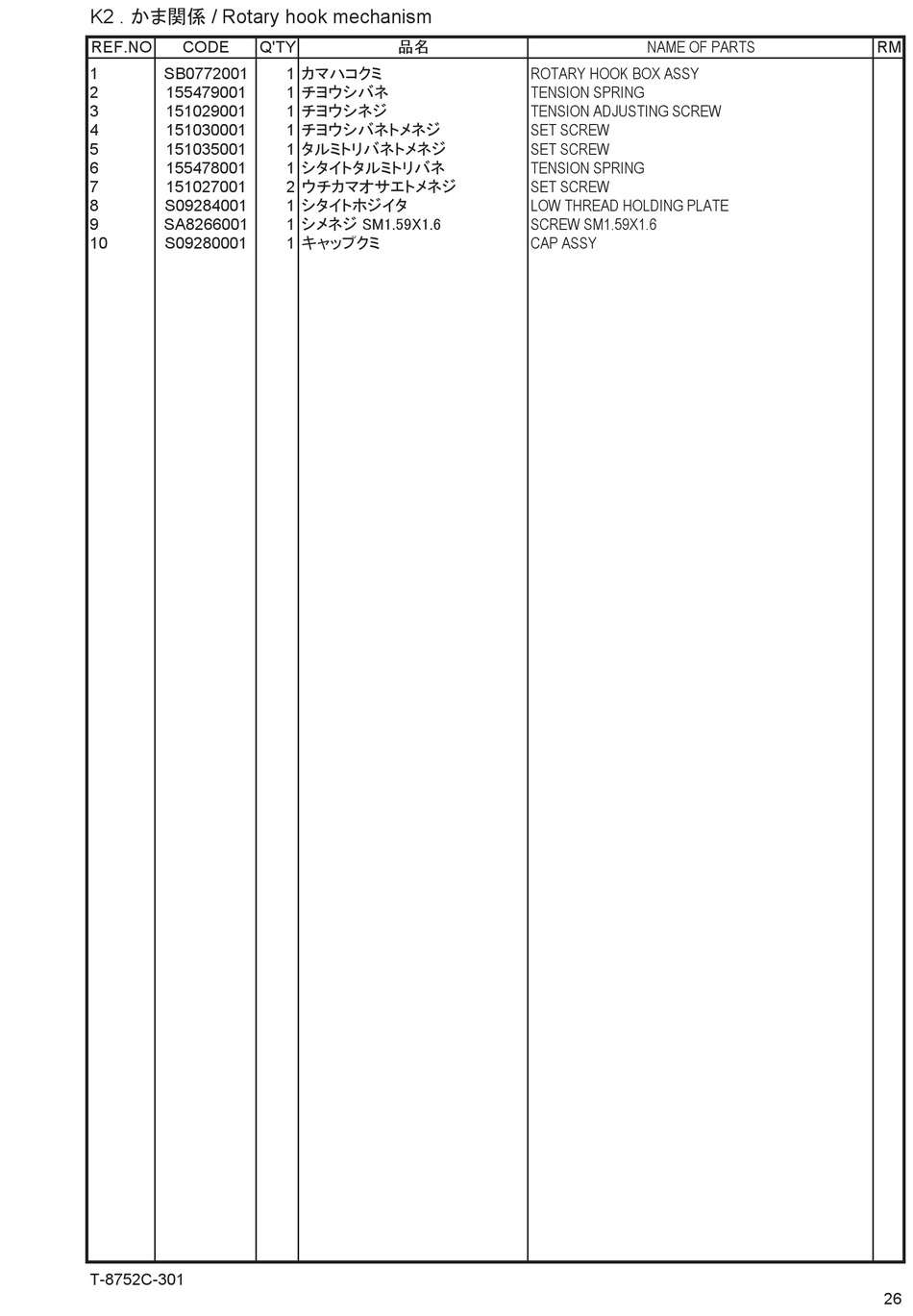

K2 . ���� / Rotary hook mechanism
REF.NO
CODE
Q'TY
1
SB0772001
2
155479001
3
151029001
4
151030001
5
151035001
6
155478001
7
151027001
8
S09284001
9
SA8266001
10
S09280001
T-8752C-301
��
1 ������
1 ������
1 ������
1 ����������
1 �����������
1 �����������
2 �����������
1 ��������
1 ���������������
1 ������
NAME OF PARTS
ROTARY HOOK BOX ASSY
TENSION SPRING
TENSION ADJUSTING SCREW
SET SCREW
SET SCREW
TENSION SPRING
SET SCREW
LOW THREAD HOLDING PLATE
SCREW SM1.59X1.6
CAP ASSY
RM
26
26
