WARNING
Before sliding the HP NetServer LXr 8500 out of the rack,
make sure you extend the anti-tip foot from under the front of
the rack.
A tip-over hazard exists, so never slide more than one
component out of the rack at a time.
NOTE
Do not remove the screws that hold the slides to the front
columns of the rack. Slide the NetServer out by grasping the
handle below the LCD control panel.

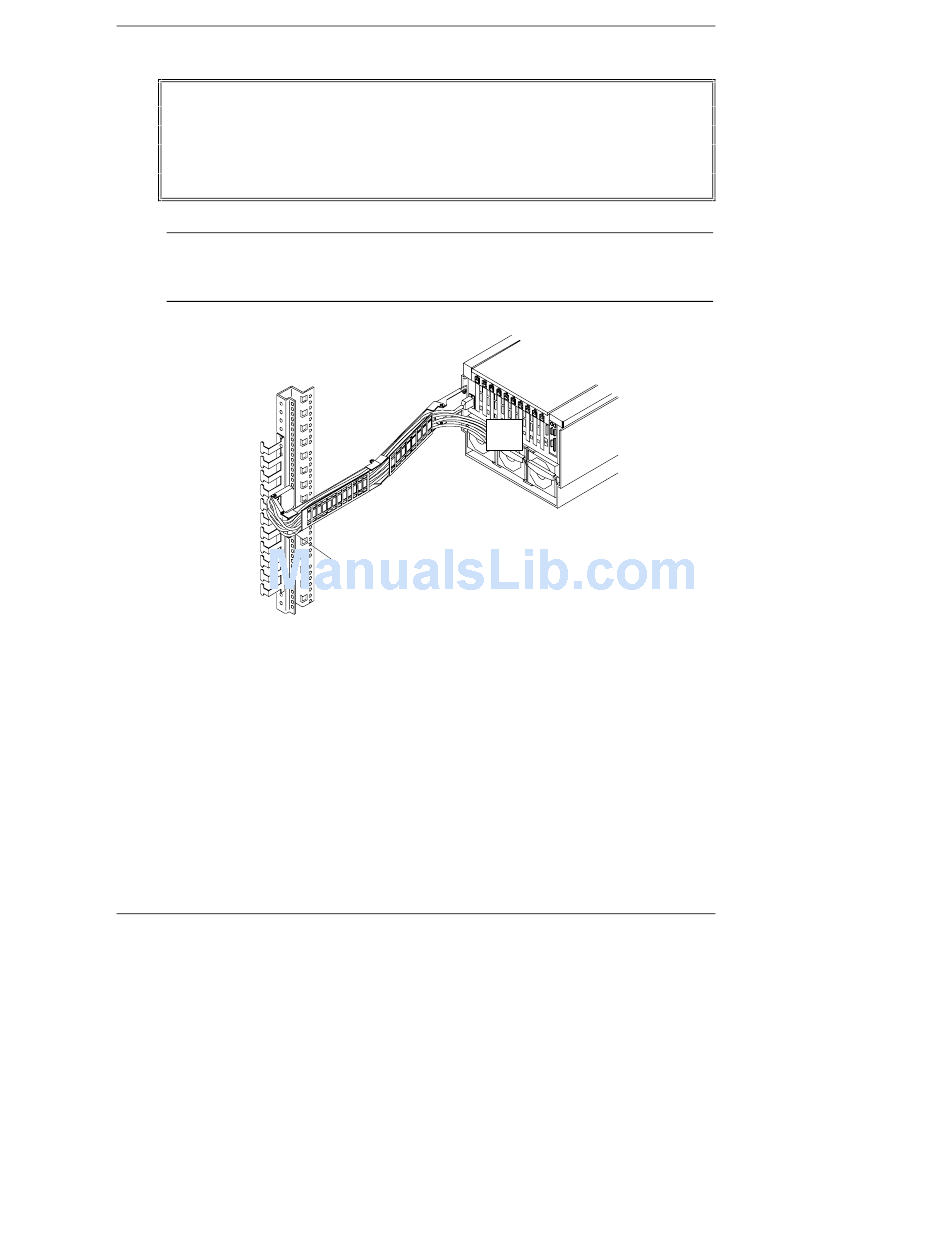

Figure 3-10. Extend the Server to Adjust Cable Lengths
Fully extend the NetServer (until it clicks) to determine how long the cable
loop needs to be. See Figure 3-10.
5. Adjust cables between the Cable Management Arm and Cable Guide and
tie-wrap them.
6. Gather extra lengths of cable and tie-wrap it into the metal Cable Guides
on the column of the rack.
7. Tighten each of the hook-and-loop tie wraps to ensure they support the
cables correctly. Slide the NetServer in carefully making sure cables do not
44
Procedure for Connecting and Routing Cables to the LXr 8500
To PCI
Boards
Extend the Cable Management Arm
to ensure you have enough cable
before routing cables through the
Cable Guide
