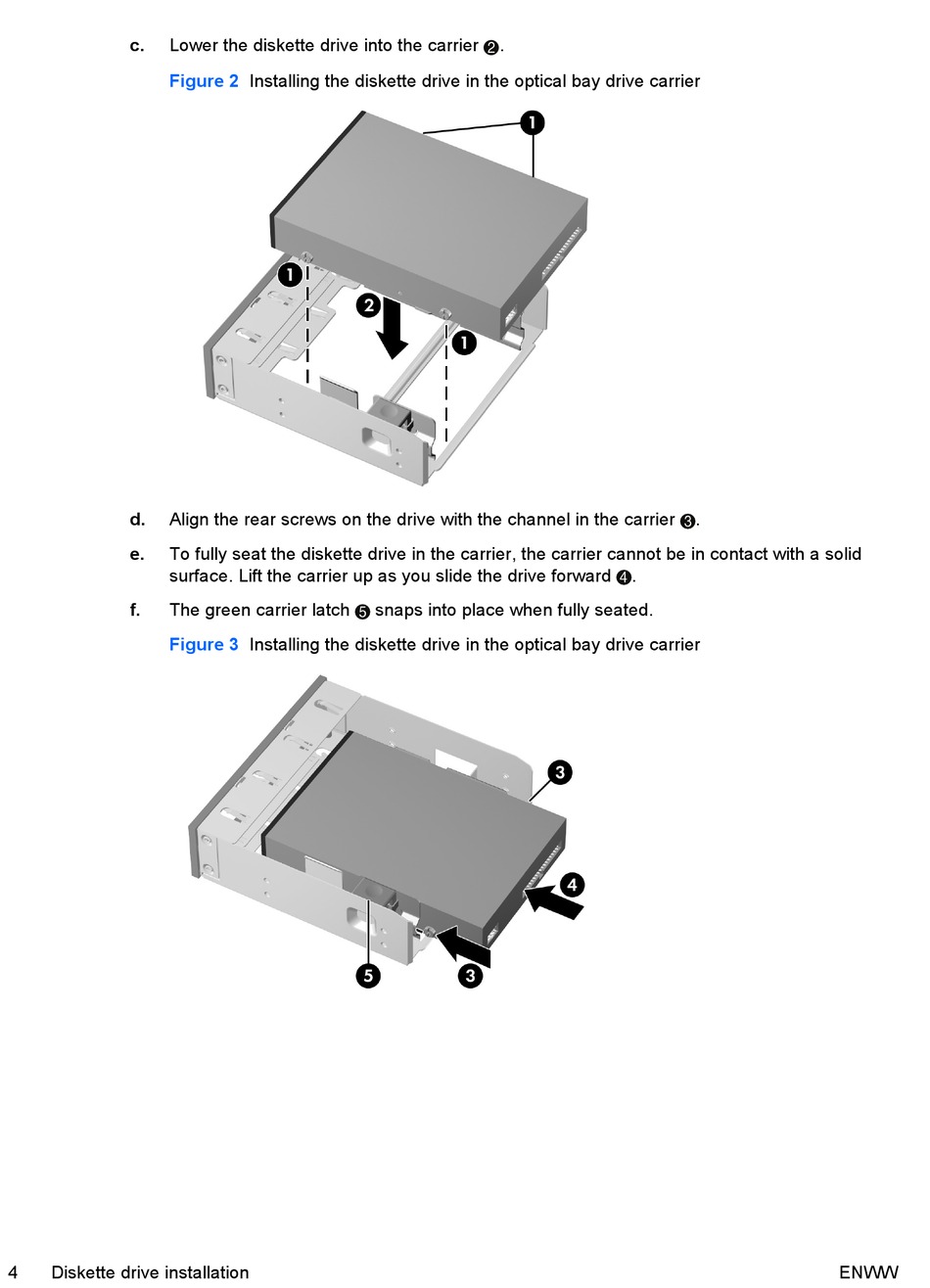

c.
Lower the diskette drive into the carrier
Figure 2
d.
Align the rear screws on the drive with the channel in the carrier
e.
To fully seat the diskette drive in the carrier, the carrier cannot be in contact with a solid
surface. Lift the carrier up as you slide the drive forward
f.
The green carrier latch
Figure 3
4
Diskette drive installation
Installing the diskette drive in the optical bay drive carrier
snaps into place when fully seated.
