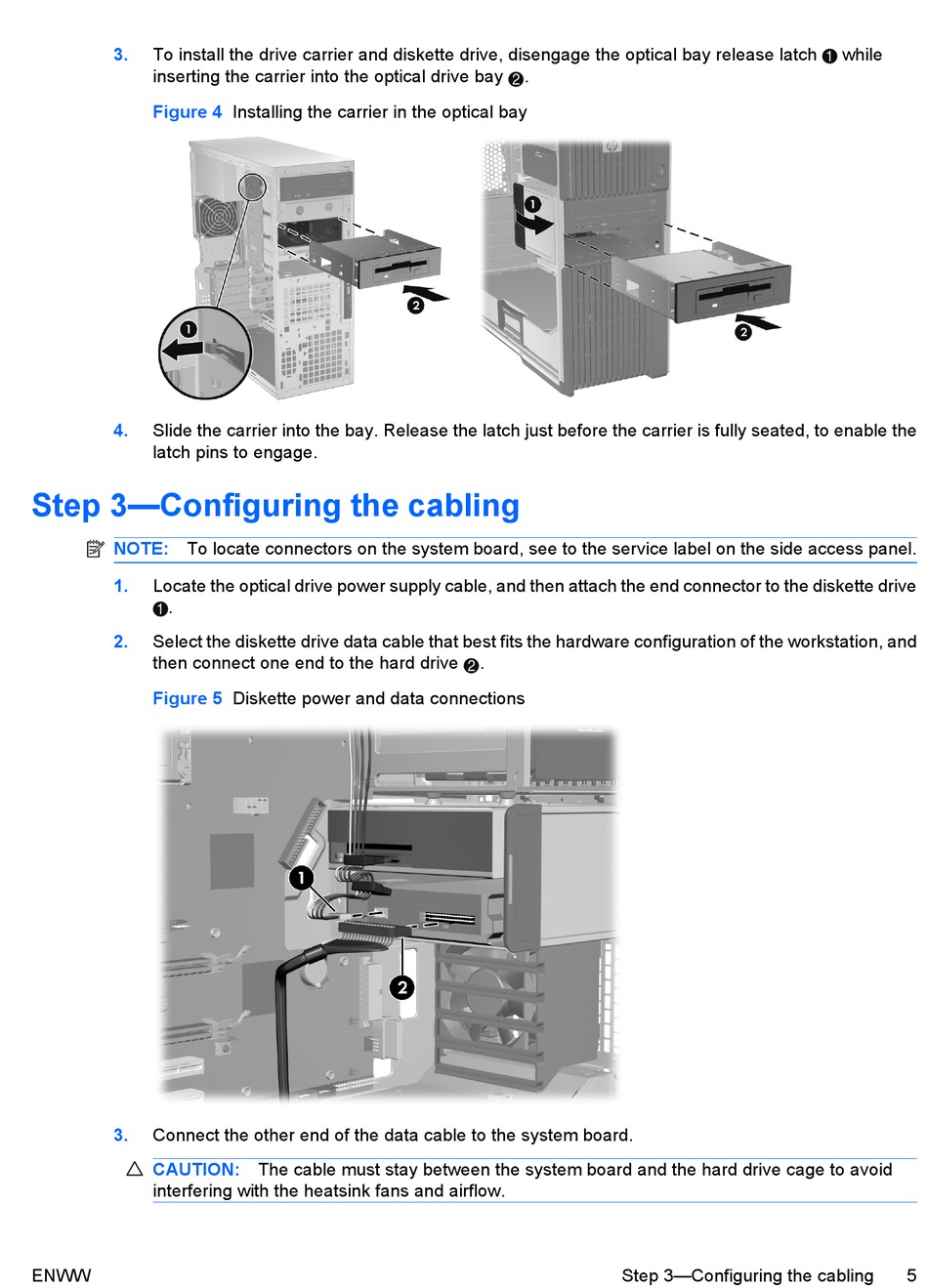

3.
To install the drive carrier and diskette drive, disengage the optical bay release latch
inserting the carrier into the optical drive bay
Figure 4
4.
Slide the carrier into the bay. Release the latch just before the carrier is fully seated, to enable the
latch pins to engage.
Step 3—Configuring the cabling
NOTE:
To locate connectors on the system board, see to the service label on the side access panel.
1.
Locate the optical drive power supply cable, and then attach the end connector to the diskette drive
.
2.
Select the diskette drive data cable that best fits the hardware configuration of the workstation, and
then connect one end to the hard drive
Figure 5
3.
Connect the other end of the data cable to the system board.
CAUTION:
interfering with the heatsink fans and airflow.
ENWW
Installing the carrier in the optical bay
Diskette power and data connections
The cable must stay between the system board and the hard drive cage to avoid
.
2
.
2
Step 3—Configuring the cabling
while
5
