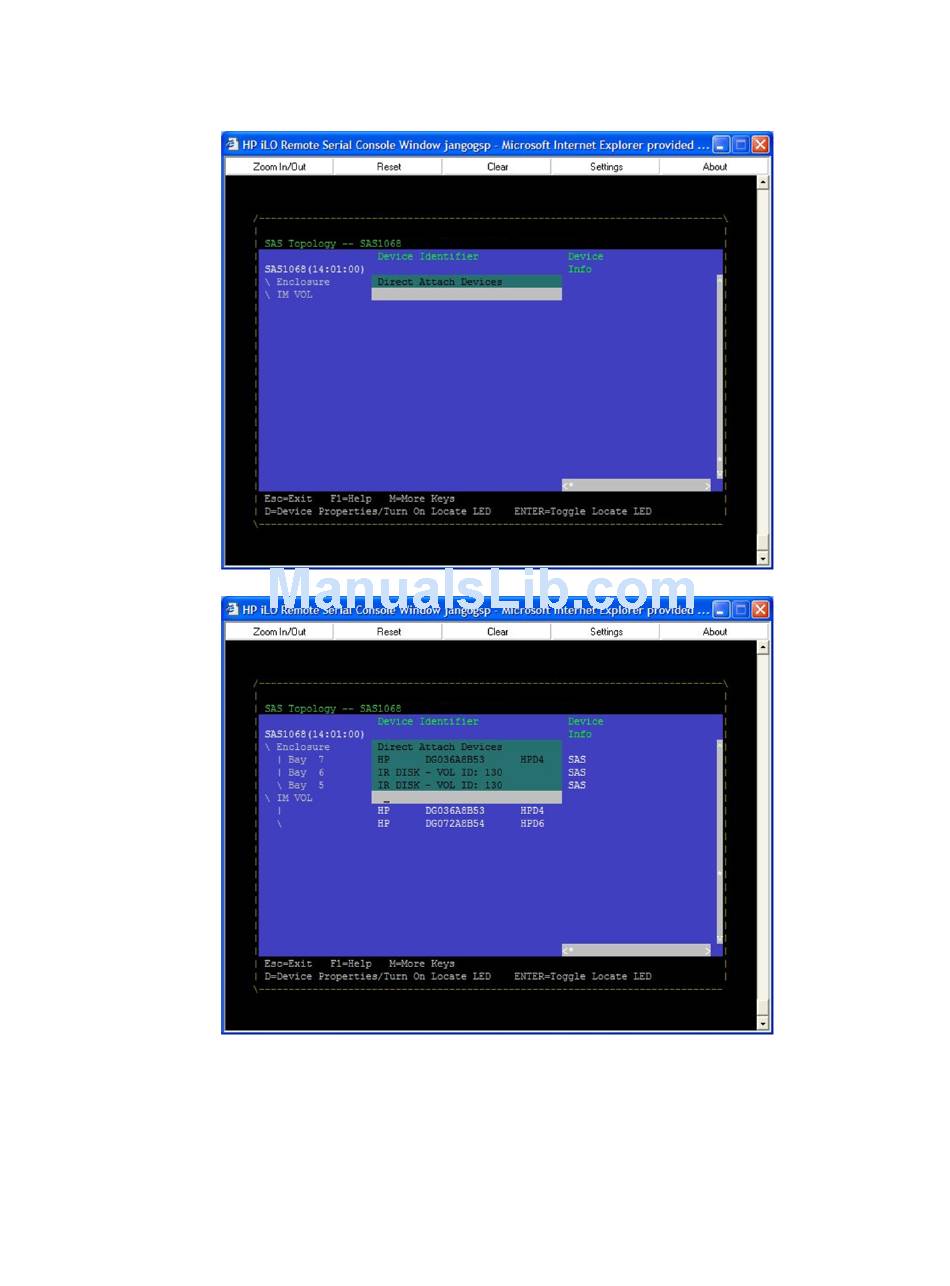

SAS Topology Screen

SAS Topology is accessed by pressing Enter on SAS Topology from the adapter Properties screen.
This screen presents a view of the adapter's SAS hierarchy, and provides other user functionality.
The following objects along with their significant properties are shown:
• Adapter
• PHYs
• Expanders/Enclosures
• Attached Devices
24 Configuring the Controller Offline
